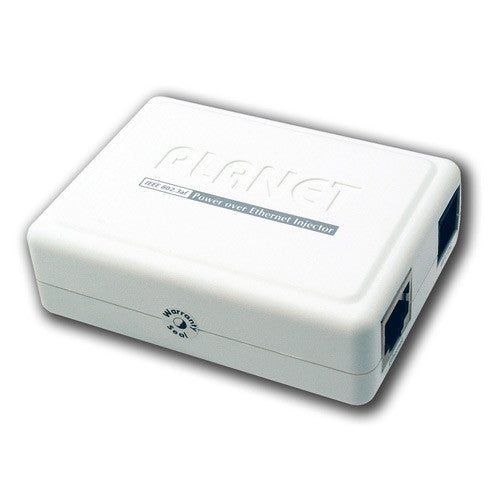

Planet PoE-152 IEEE802.3af Gigabit PoE Injector (End-Span)

Planet PoE-152 Features

• Ethernet Connector: 2 x RJ-45 (1 for Data + DC in, 1 for Data out)
• Data Rate: 10/100/1000Mbps (vary on Ethernet device attached)
• Input Voltage: DC 48V, 0.4A
• Number of Device can be powered: 1
• Ethernet Cable: TIA / EIA-568, Category 5/5e/6 cable
• LED indicator: 1 x power, 1 x PoE ready / in-use
• Dimension (W x D x H): 73 x 55 x 24 mm
• Operating Temperature: 0~50 Degree C; 5~90% Humidity
• PoE Standard Compliance: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af Power over Ethernet
• Emission: FCC Class B, CE mark

Planet PoE-152 Overview

The POE-152 is an IEEE 802.3af Power over Ethernet Injector which provides DC 48V over Ethernet cables. The POE-152 IEEE 802.3af Power over Ethernet Injector inserts DC Voltage into Cat.5 cable, allowing the cable between the Injector (POE-152) and Splitter (POE-152S-5V/12V) to transfer data and power simultaneously. The maximum distance between the Injector (POE-152) and Splitter (POE-152S-5V/12V) is 100 meters. With POE-152 being installed, it combines the Ethernet digital data with power over the twisted pair cables as an IEEE 802.3af Power over Ethernet Injector. And the IEEE 802.3af Power over Ethernet splitter shall separate the digital data and the power into two outputs. Unlike existing Power over Ethernet Injector, the POE-152 also provides 1000Mbps Gigabit Ethernet connection ability, except the 10/100Mbps Fast Ethernet connection ability.

With IEEE 802.3af Power over Ethernet devices installed, the system administrator only has to use a single RJ-45 Ethernet cable to carry both power and data to each device. Besides, to connect through POE-152 and POE-152S-5V/12V, you could also have benefits which includes cost saving, easy for networking planning and higher reliability. Upon any IEEE 802.3af devices installed, the POE-152 or together with POE-152S-5V/12V can make the connection while migrating or splitting the power and the Ethernet digital packets, such as connecting the POE-152 to an IEEE 802.3af complied devices, AP or IP phone.

Connect to IEEE 802.3af devices:
Due to the capability of IEEE 802.3af standard, the POE-152 can directly connect with any IEEE 802.3af end-nodes like wireless access point, IP phones and Internet camera which supports IEEE 802.3af In-line Power over Ethernet port.

The IEEE 802.3af Injector and Splitter installation:
For a place which is hard to find the power inlet, POE-152 and POE-152S-5V/12V, as a pair, should provide the easiest way to power your Ethernet devices, such as PLANET ICA-110, Internet Camera on the ceiling, or WAP-4000, Wireless Access Point which is installed on the top of the building. It’s the same as the VIP-154PT, the IP phone used in office or home.
