POE-165S   IEEE 802.3af/at to Passive PoE Power Converter (12V/19V/24V)

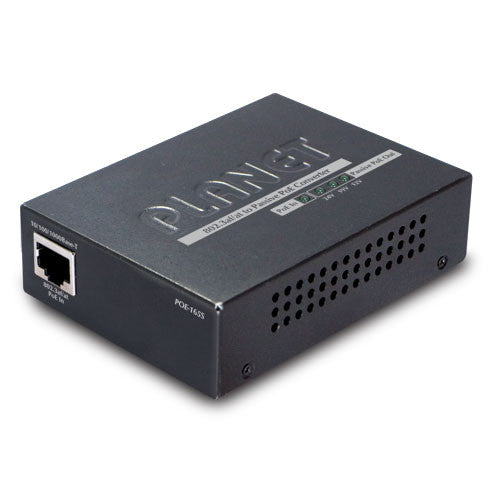

Planet PoE-165S Passive PoE Power Converter

Planet

Planet PoE-165S Passive PoE Power Converter

Sale price$55.00
Discontinued
SKU: PoE-165S

Usually Ships in 10 - 12 days

Contact

Planet PoE-165S Features

  • Interface: PoE In Port: 1 x IEEE 802.3af/at RJ-45 STP / PD; Passive PoE Out Port: 1 x non-802.3af/at RJ-45 STP / PSE
  • Network Cable: 10Base-T: 2-Pair UTP Cat. 3, 4, 5; 100Base-TX: 2-Pair UTP Cat. 3, 4, 5;; 1000Base-T: 2-Pair UTP Cat. 5, 5e, 6 ; EIA/TIA-568 100-ohm STP
  • Data Rate: 10/100/1000Mbps
  • Dimensions (W x D xH): 94 x 70.3 x 26.2 mm
  • Weight: 182g
  • Unit Output Voltage: 12V/19V/24V DC
  • Power Requirements: 100-240V AC @50/60Hz, 1.5A max.
  • Power Consumption: 60 watts max.
  • PoE Standard: IEEE 802.3af/at Power over Ethernet End-Span / Mid-Span Class 4 PD
  • Power Output Pin Assignment: 4/5(+), 7/8(-)
  • PoE Power Output: Maximum Passive PoE; 12V DC, 0.7A; 19V DC, 0.7A; 24V DC, 0.7A
  • Standards Compliance: IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet; IEEE 802.3ab 1000Base-T Gigabit Ethernet; IEEE 802.3at High Power over Ethernet; IEEE 802.3af Power over Ethernet
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Operating Temperature: -40 ~ 75 degrees C
  • Humidity: 5 ~ 95%, Relative Humidity, non-condensing

Planet PoE-165S Overview

Simplify Internet Usage with Passive PoE Converter
PLANET POE-165S IEEE 802.3af/at to Passive PoE Converter convert a standard IEEE 802.3af/at PoE input powered device to 12V/19V/24V passive PoE power output device, designed to solve the issue of the difficulty in finding power outlets in outdoor places. Being able to operate under wide temperature range from -40 to 75 degrees C, the POE-165S can be placed in almost any difficult environment. The POE-165S is suitable for either DIN rail or wall mounting for the efficient use of cabinet space.

Innovative Selectable DC Power Output Voltage
Via the innovative 12/19/24 volt DIP switch, the POE-165S can supply 12V/19V/24V DC power to the network devices, such as outdoor wireless access point. It highly increases the flexibility of the product applications.

Easy Centralized Power Management
As the POE-165S can obtain power from IEEE 802.3af/at PoE switch/injector and supply the power to the remote device by passive PoE port, network administrator can remotely power off/on the remote device by the managed PoE switch/injector through the POE-165S.

Plug and Play, Easy Cabling Installation
With IEEE 802.3af/at Gigabit Power over Ethernet devices installed, the system administrator only has to use one single RJ-45 Ethernet cable to transmit both power and data to each device. Besides, by connecting the Industrial High Power PoE Injector with the POE-165S, you can also have the benefits of cost saving, easy networking planning and high network reliability.
