Planet PoE-171A-95 95W Ultra PoE Gigabit Injector

Features

Interface

• 2 RJ45 interfaces
• - 1-port Data + Power output
• - 1-port Data input
• 1 DC 52~56V input power socket
• 1 PoE mode (standard/legacy) DIP switch

Power over Ethernet

• Complies with IEEE 802.3af/at/bt PoE end-span/mid-span PSE
• Supports PoE power up to 95 watts for PoE port
• Auto-detection of PoE IEEE 802.3af/at/bt equipment and devices from being damaged by incorrect installation
• Monitor the status of the total PoE usage in real time
• Auto-detection of DC input voltage
• Remote power feeding up to 100m

Hardware

• All-in-one compact size design
• LED indicators for Power LED, PoE-in-Use LED, Legacy LED and PoE Usage LED
• Wall-mount design
• Metal case

Overview

PLANET POE-171A-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

• PTZ speed dome camera
• All-in-one touch PC
• Remote digital signage display
• Other network devices that need higher power to work normally

The POE-171A-95 delivers the Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-172S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

The POE-171A-95, when switched to the legacy mode, provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. The legacy LED will be turned on when the legacy mode is enabled. Moreover, the POE-171A-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-171A-95 has three LED indicators of different power usages. Via the power usage LED, the POE-171A-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

The POE-171A-95 and POE-172S Ultra PoE solutions use the same cabling standard such as IEEE 802.3af/at PoE. Instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs.

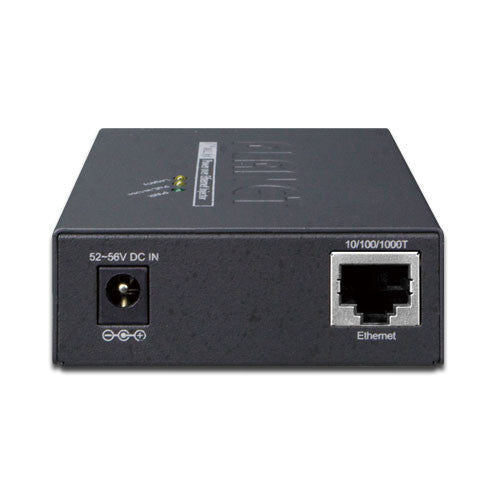

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-171A-95 comes in compact housing, and provides one 52~56V DC input power jacket, one power LED, PoE-in-use LED and legacy LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-171A-95 is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.

Backward compatible with both 802.3af/at PoE standards, the POE-171A-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-171A-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.
