Planet POE-176-95 Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, 802.3bt

Advanced Multi-Gigabit and 802.3bt PoE++ Network Solution

PLANET POE-176-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables. It is also equipped with two 10M/100M/1G/2.5G/5G/10GBASE-T RJ45 copper interfaces to handle extremely large amounts of data transmission.

The POE-176-95 adopting the IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. In the new 4-pair system, it can offer more PoE applications, such as:

• PoE lighting
• PoE PTZ speed dome camera
• Any network device that needs higher PoE power to work normally
• Thin-client
• AIO (All-in-One) touch PC
• Remote digital signage display

The POE-176-95 delivers the Ethernet digital data with DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector, and the connected ultra Power over Ethernet splitter, the POE-173S, will separate the digital data and the power into three optional outputs (12V/19V/24V DC) with distance up to 100 meters.

Intelligent LED Indicator for PoE Mode and Real-time PoE Usage

The POE-176-95, when switched to the Force mode, provides power to those PD devices which do not fully follow the IEEE 802.3af/at/bt standard. The Force LED will turn on when the Force mode is enabled, it can power on the PD with a maximum of 60 watts.

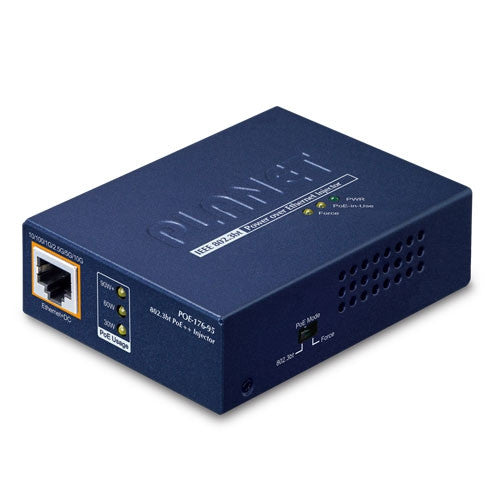

Moreover, the POE-176-95 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. “PoE Power Usage” displayed on the front panel of the POE-176-95 has three LED indicators of different power usages. Via the power usage LED, the POE-176-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

95 Watts of Power over 4-pair UTP

In the new 4-pair system with IEEE 802.3bt standard, instead of delivering power over 2-pair twisted UTP – be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), the POE-176-95 provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.

All-in-One and Compact Size Design

It is easy to install the PoE injector by way of Plug and Play and comes with simple troubleshooting, making it easy for business and home users to own it. Besides, the POE-176-95 comes in compact housing, and provides one 52~56V DC input power jacket, one power LED, PoE-in-use LED and Force LED. Two RJ45 ports -- Ethernet port and Ethernet + DC port – are on the side panel. Simply plug in the Ethernet cables and DC power cord, and the POE-176-95 is ready to provide high-speed network communication and the 802.3bt PoE injector functions simultaneously with no need of software configuration.

Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3af/at PoE standards, the POE-176-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-176-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time.

Single-Port 10Gbps 802.3bt PoE++ Injector (95 Watts, 802.3bt Type-4, PoH, force mode support, PoE Usage LED, 10/100/1G/2.5G/5G/10Gbps Data rate) -w/external 54V 130W AC power adapter included
