Planet PoE-2400G 24-Port PoE Gigabit Injector Hub

Planet PoE-2400G Features

Hardware Specifications

• Ethernet Ports: "Data" Input Ports: 24x RJ-45 STP, "PoE (Data+Power)" Output Ports: 24x RJ-45 STP; Management Port: 1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX
• PoE Ports: 12
• Power Requirement: 100-240V AC, 50/60 Hz
• Power Consumption: 400 watts max.
• LED Display: System: Power x 1 (Green); Management Port x 2: 10/100 (Green / Orange); Per PoE Port: PoE in Use x 1 (Green)
• Dimension (W x D x H): 440 x 200 x 44 mm
• Weight: 3.3kg
• Operating Temperature: 0 ~ 50 Degree C, 5 ~ 95% (Non-condensing)
• Cooling: Fan x 2

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / Mid-Span PSE
• PoE Power Supply Type: Mid-Span
• PoE Power Output: Per Port DC 48V 15.4 Watts
• Power Pin Assignments: 4/5(+), 7/8(-)
• PoE Power Budget: 380 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T Ethernet; IEEE 802.3u 100Base-TX Fast Ethernet; IEEE 802.3ab 1000Base-T Gigabit Ethernet; IEEE 802.3af Power over Ethernet

Planet PoE-2400G Overview

Quick and Easy Gigabit PoE Network Deployment
The PLANET POE-2400G is 24-Port Gigabit IEEE 802.3af PoE Web Management injector Hub and complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3af standards. With 24 10/100/1000Base-T GigabitEthernet ports, the POE-2400G supports full 48V DC power for any remote IEEE 802.3af powered device (PD) such as Wireless LAN Access Point, IP phone, and IP Camera. Supporting full PoE power budget of 380 Watts, the POE-2400G provides sufficient 15.4 Watts PoE power to 24 remote PD devices.

Easy Cabling Installation

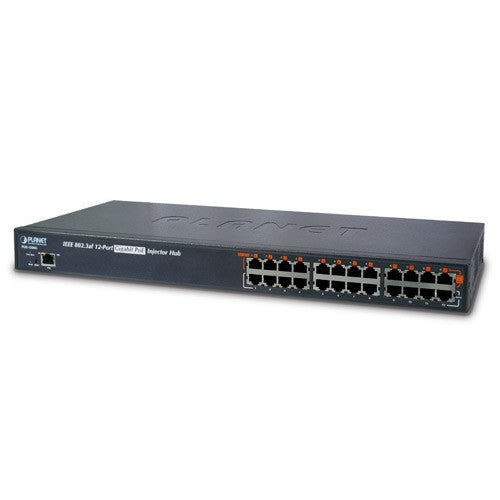

The POE-2400G is installed between a regular Ethernet Switch and the powered devices; it injects power to the PDs without affecting the data transmission performance. It offers a cost effective and quick solution to upgrade network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet Switch. There are 48 RJ-45 STP ports on the front panel of PoE Injector Hub, of which the 24 ports on the lower stack function as "Data input" and the other 24 ports on the upper stack function as "PoE (Data and Power) output". The24 "PoE output" ports are also the power injectors which transmit DC Voltage to the CAT 3/4/5/5e/6 cable and transfer data and power simultaneously between the Injectors and Splitters.

Friendly / Simple Web Management Interface
To efficiently manage the powered devices, the POE-2400G provides Web management interface in which administrators can control the functions including port Enable / Disable, port priority, system configuration, and Username / Password changing and smart features for powered devices. The PoE injector Hub can automatically detect the power status of each port and show massages on its Web management interface. These features also provide users a cost-effective way to manage the device via Internet whenever they are at work or at home.
