Planet PoE-2400P4 24-Port PoE Web Management Injector Hub

Planet PoE-2400P4 Features

Hardware Specifications

• Ethernet Ports: "Data" Input Ports：24 x RJ-45 STP; "Data + Power" Output Ports：12 x RJ-45 STP; Management Port：1 x RJ-45; 10/100Base-TX, auto-negotiation, auto-MDI / MDIX
• PoE Ports: 12
• Power Requirement: 100-240V AC, 50/60 Hz
• Power Consumption: 400 watts max.
• LED Display: System: Power x 1 (Green); Management Port x 2: 10/100 (Green / Orange); Per PoE Port: PoE in Use x 1 (Green)
• Dimension (W x D x H): 440 x 200 x 44 mm
• Weight: 3.3kg
• Operating Temperature: 0 ~ 50 Degree C, 5 ~ 95% (Non-condensing)
• Cooling: Fan x 2

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af Power over Ethernet / Mid-Span PSE
• PoE Power Supply Type: Mid-Span
• PoE Power Output: Per Port 48V DC, 350mA . Max. 15.4 watts
• Power Pin Assignments: 4/5(+), 7/8(-)
• PoE Power Budget: 380 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3af Power over Ethernet

Planet PoE-2400P4 Overview

Quick and Easy PoE Network Deployment
The PLANET POE-2400P4 is 24-Port IEEE 802.3af Power over Ethernet Web Management injector Hub and complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af standards. With 24 10/100Base-TX Fast Ethernet ports, POE-2400P4 support full 48V DC power for any remote IEEE 802.3af powered device (PD) like Wireless LAN Access Point, IP phone, and IP Camera. Supporting PoE power budget of 380 watts, POE-2400P4 provides sufficient 15.4 watts PoE power to 24 remote PD devices.

Easy Cabling Installation

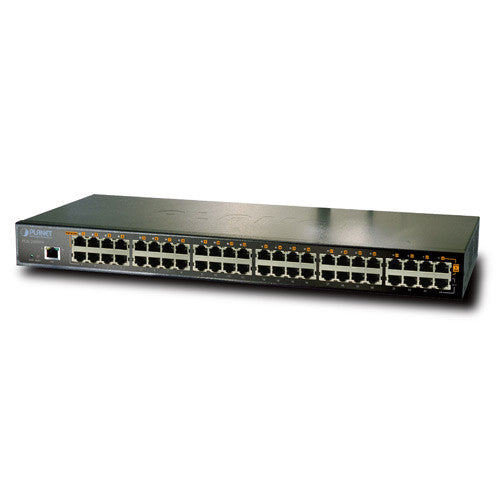

The POE-2400P4 is installed between a regular Ethernet Switch and the powered devices, injecting power without affecting the data transmission. They offer a cost effective and quick solution to upgrade network system to IEEE 802.3af Power over Ethernet system without replacing the existing Ethernet switch. There are 48 RJ-45 STP ports on the front panel of PoE Injector Hub, in which the 24 ports on the lower stack function as "Data input" and the other 24 ports on the upper stack function as "PoE (Data and Power) output". Each of the "PoE output" port on the upper stack operates as a power injector which transmits DC Voltage to the CAT 5 cable to transfer data and power simultaneously between the Injector and Splitter.

Friendly / Simple Web Management Interface
To efficiently manage the powered devices, POE-2400P4 provide Web management interface in which administrators can use the functions including port Enable / Disable, port priority, system configuration, and Username / Password changing and with smart features for powered device. The PoE injector Hub can auto detect the power status of each port and show massages on its Web management interface. These features also provide a cost-effective way to manage the device via from Internet whenever you are at work or at home.
