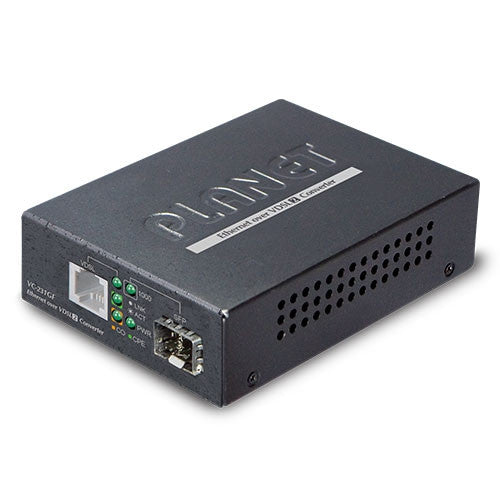

Planet VC-231GF 1-Port 1000X SFP + 1-Port RJ11 VDSL2 Converter -30a profile
Usually Ships in 10 - 12 days
Physical Ports
- One 1000BASE-X SFP interface
- 1 RJ11 connector for xDSL port with VDSL2 connection
VDSL2 Features
- VDSL2 stand-alone transceiver for simple bridge modem application
- Cost-effective bridge function to connect two Ethernet LANs
- Up to 150/150Mbps bandwidth (in G.INP, Sym, 8dB mode)
- Voice and data communication can be shared simultaneously based on the existing telephone wire with distance up to 1.4km
- ITU-T G.993.2 VDSL2 standard
- ITU-T G.993.5 G.Vectoring and G.INP
- DMT-based coding technology
- CO/CPE mode selectable via DIP switch
- Selectable target band plan (symmetric and asymmetric) and SNR margin
- Supports IEEE 802.1Q VLAN tag transparency
Hardware and Installation
- Compact size, wall-mountable design; ideal solution for space-limited locations
- Advantage of minimum installation time (Simply by Plug and Play)
- Metal case, good for heat sinking
- Supports extensive LED indicators for network diagnosis
- Additional POST splitter to share voice and data
- Supports 6KV DC Ethernet ESD protection
The VC-231GF, a PLANET Long Reach Ethernet (LRE) solution, is a Single-port Gigabit Ethernet-over-VDSL2 Converter for connecting ultra-fast FTTx deployment with the existing in-building and in-house telephone wire installation.
An Innovative Last Mile Solution Integrated with FTTx and VDSL2
The VC-231GF features one 1000BASE-X SFP slot for remote optical fiber Ethernet connection and one RJ11 port with the VDSL2 technology to provide an excellent bandwidth of up to a total duplex data rate of 300Mbps and can extend a maximum distance of up to 1.4km (4,593ft) over existing telephone wire to the in-house VDSL2 router or bridge, which overcomes in-house fiber installation problems.
The VC-231GF realizes ISPs (internet service providers) and SIs (system integrators) to deploy Gigabit Ethernet optical fiber cables in the front of the building or subscriber’s house and provide high-speed triple play services over existing telephone wire. They can simply upgrade their current networks without any difficulty. Besides, its compact-sized metal housing makes the installation in a telecom box convenient.
Fiber-Optic Link Capability Enables Extension of FTTx Deployment
With the built-in 1000BASE-X SFP (small form-factor pluggable) fiber interface, the VC-231GF supports different optic types for network extension and the distance can be up to 120 km through the fiber connection. Thus, building a network solution of FTTH (Fiber to the Home), FTTC (Fiber to the Curb) for ISPs or FTTB (Fiber to the Building) becomes so easy when long-distance deployment is employed.
VDSL2 Delivering High-demanding Service Connectivity for ISP/Triple Play Devices
The VC-231G provides an excellent bandwidth demand for the triple play devices for home entertainment and communication. Via the latest VDSL2 (Very-high-data-rate Digital Subscriber Line 2) technology, the VC-231GF offers selectable asymmetric/symmetric data rate capability. It works well with a pervasive telephone line network with a symmetric data rate of up to 150/150Mbps (G.INP, Sym, 8dB) over a distance of 300m and 25/15Mbps over a long distance of 1km. The VC-231G enables many multi-media services to work on the local Internet, such as VoD (video on demand), voice over IP, video phone, IPTV, Internet caching server, distance education, and so on.
Versatile, Flexible and Easy Installation
PLANET Gigabit Ethernet-over-VDSL2 converters come with a Plug and Play design. The VC-231GF offers two operation modes, CPE for client side and CO for central side. The CPE or CO mode can be adjusted by using a built-in DIP switch.
For point-to-point connection, the VC-231GF’s CO mode and the VC-231G’s, VC-234G’s or VDR-301N’s CPE mode must be set up as one pair of converters to perform the connection. It gives administrators the ability to reply a fresh local Intranet in various locations by utilizing the original network structure without additional costs.
Implementing with Existing Telephone System
Use the additional splitter from the package of the VC-231GF to share the existing phone line with POTS, thus replacing the existing copper wiring is not necessary. Just plug the VC-231GF with the additional splitter into the existing RJ11 telephone jack and a high-performance VDSL2 network can be connected. It is ideal for use as an Ethernet extender to an existing Ethernet network.
1-Port 1000X SFP + 1-Port RJ11 VDSL2 Converter -30a profile w/ G.vectoring
