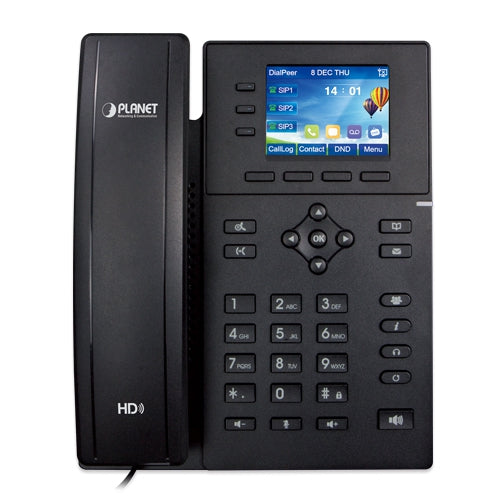

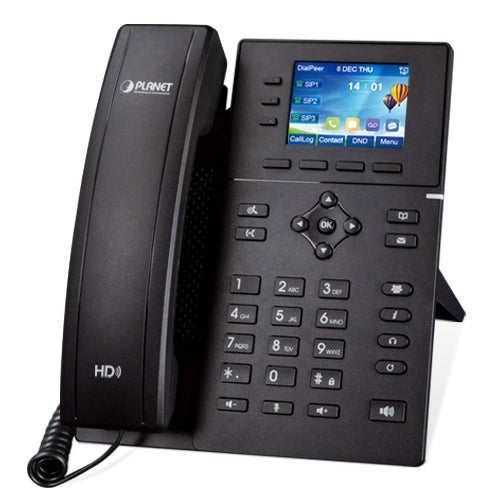

Planet VIP-1260PT High Definition Color POE Gigabit IP Phone: (2.8-inch Color
Usually Ships in 10 - 12 days
Intuitive, Aesthetic Design and Quality Communication
PLANET VIP-1260PT is an enterprise Gigabit IP phone with six lines and a 2.8" color LCD display. This device provides lifelike richness and high-quality voice to phone calls.
With ease of use, versatility, high-quality design, and superb audio performance, the VIP-1260PT is a reliable communication device. Additionally, its full duplex speakerphone system with HD voice supports the G.722 wideband and Opus codec, making communication between two or more parties crystal-clear, without any background noise interference.
Multi-language VoIP Telephony with Wide-Viewing-Angle Color Display
The VIP-1260PT allows you to make digital phone calls utilizing the existing broadband networks in homes and offices without installing new analog connections (e.g. copper wires). Its 2.8-inch wide-viewing-angle color display with a resolution of 320 x 240 pixels offers a clear depiction of caller’s information as well as supports up to 19 languages. Compliance with IEEE 802.3af PoE standards makes deployment convenient and flexible. In addition, the advanced speaker/microphone and the dedicated Digital Signal Processor assures superior audio quality.
Compliant with SIP 2.0
SIP phones continue to gain popularity among businesses as the preferred protocol for enhancing communication experience across IP networks. The VIP-1260PT supports Session Initiation Protocol 2.0 (RFC 3261) for easy integration with general voice over IP system. The VIP-1260PT is able to broadly interoperate with equipment supplied by VoIP infrastructure providers, thus enabling them to offer their customers better voice over IP services.
Affordable for All Businesses
The VIP-1260PT is definitely affordable for all business establishments who want flexible deployment options and expansion. It can effortlessly deliver secured toll voice quality by utilizing cutting-edge 802.1p QoS (Quality of Service) and IP ToS technology.
High-quality G.722 HD and Opus Audio Codes
The VIP-1260PT delivers with Harman Kardon speaker, wideband G.722 HD and Opus audio codec whose both hardware and software HD functions are the next generation of voice quality for telephony audio, making the quality of voice better than that (toll quality) of the standard digital telephony, and come close to that of a room conversation. HD voice is transmitted in the audio frequency range of 50Hz to 7KHz or higher over telephone lines, resulting in higher quality voice and clearer communication. The VIP-1260PT keeps bringing the most premium sound for users.
Highlights
- 2.8-inch WVA color LCD monitor
- 3-line key with color LED
- 6 SIP identities
- Dual Gigabit and IEEE 802.3af/at PoE compliant
- Wideband G.722 HD Opus audio
- Support G.723.1 and G.726 for efficient low-bandwidth and high-quality wideband audio
- Multi-language support via the web UI and LCD
- IPv6, VPN, VLAN, QoS, TR069 and auto-provisioning
Advantageous Applications
- Supports SIP 2.0 (RFC 3261)
- Inband, SIP info, RFC 2833 DTMF relay
- Soft keys and function keys programmable
- Echo cancellation: Supports G.168, and 96ms max. filter length in hands-free mode
- Supports voice gain setting, Voice Activity Detection (VAD) and Comfort Noise Generation (CNG)
- Full duplex hands-free speakerphone
- Hands-free headset ringing choice
- Voice codec setting for each SIP line
SIP Applications
- Call forward and transfer (blind/attended)
- Call holding and waiting
- 6-way conferencing
- Paging and intercom
- Call park, call pickup and join call
- Redial and click to dial
- Automatic secondary dialing
- Incoming calls, outgoing calls and missing calls (Each supports 600 records)
- SMS and speed dial
- Phonebook up to 1000 records
Call Control Features
- Flexible dial map, hotline and empty calling no. for rejected service
- Black list for rejected authenticated calls
- White list and call limit
- Do not disturb (DND)
- Caller ID display
- Dial without registration
Network Features
- IPv4 and IPv6
- Static IP/PPPoE/DHCP client
- 802.1Q VLAN (voice VLAN/data VLAN)
- VPN (L2TP) and openVPN
- Quality of Service
Maintenance and Management
- Integrated web server provides web-based administration and configuration
- Telephone keypad configuration via display menu/navigation
- Automated provisioning and upgrade via HTTPS, HTTP, TFTP
- User authentication for configuration pages
- SNTP time synchronization
- TR069
- PLANET Easy DDNS and PLANET DDNS
- PLANET Smart Discovery Utility for deployment management
| Hardware | |
|---|---|
| Lines (Direct Numbers) | 6 SIP Lines |
| Physical Interfaces | LCD x 1: 2.8-inch (320 x 240) WVA color LCD Keypad: 36 keys, including 3 line keys with tri-color LED 4 soft-keys 5 navigation keys 8 function keys 12 standard phone digit keys 3 volume control keys -- Up, Down, Mute (microphone) 1 hands-free key HD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1 |

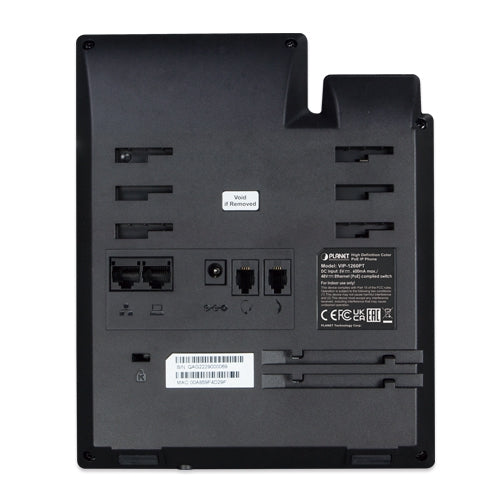

| Network Interfaces | RJ45 Ethernet jacket x 2: Network x 1 (Gigabit, 802.3af PoE Class 1 enabled) PC x 1 (Gigabit, Bridged Network) |
| Connectors | RJ9 phone jacket x 2: Handset x 1 Headphone x 1 |
| Power Requirements | IEEE 802.3af Power over Ethernet 5V 600mA |
| Weight | 669g |
| Dimensions (W x D x H) | 210 x 168 x 60 mm |
| Protocols | |
| Protocols | SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069 |
| Networking | |
| Networking | Physical: 10/100/1000Mbps Ethernet, bridged port for PC bypass IP Configuration: Static, DHCP, PPPoE VLAN QoS RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035) |
| Security | Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN |
| Deployment & Maintenance | Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration Import/Export Auto/Manual online software upgrade Syslog |
| Features | |
| Call Features | Call out, answer, reject Mute/unmute (microphone) Call hold, resume Call waiting Intercom Caller ID display Call forwarding (always/busy/no answer) Call transfer (attended/unattended) Call parking, pick-up (depending on server) Redial Do-not-disturb (per line/per phone) Auto-answering (per line) Voice message (on server) Local 6-way conferencing Hot line |
| Phone Features | Phone accessibility control by user PIN Intelligent phonebook (up to 1000 entries in total) Remote phonebook (XML/LDAP) Intelligent contact number matching/filtering Call log (600 entries in total, in/out/missed) Voice message waiting indication (VMWI) Network time synchronization Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Russian, Italian, German, French, Hebrew, Spanish, Catalan, Euskara, Galego, Turkish, Slovenian, Czech, Dutch, Korean, Ukrainian, Portuguese |
| Audio Features | HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729A/B. iLBC Wideband codec: Opus, G.722 Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info |
| Standards Conformance | |
| Regulatory Compliance | CE, FCC, RoHS |
| Request for Comments (RFCs) | 354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865 |
| Environment | |
| Operating Temperature | 0 ~ 45 degrees C |
| Operating Humidity | 10 ~ 95% (non-condensing) |
