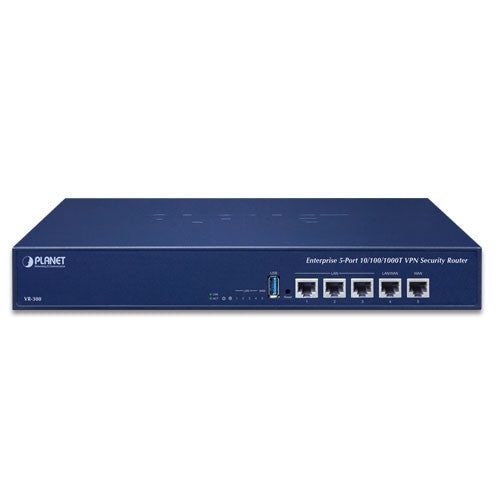

Planet VR-300 Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN

Highlights

• Dual-WAN failover and Dual-WAN load balancing
• SSL VPN and robust hybrid VPN (IPSec/PPTP/L2TP over IPSec)
• Stateful Packet Inspection (SPI) firewall and content filtering
• Blocks DoS/DDOS attack, port range forwarding
• High Availability, AP Controller, Captive Portal and RADIUS
• IPv6, SNMP, PLANET DDNS and Universal Network Management System

Hardware

• 5 10/100/1000BASE-T RJ45 ports
• 1 undefined Ethernet port (LAN/WAN) for Dual-WAN function
• 1 USB 3.0 port for system configuration backup and restore
• Reset button and Fanless design
• Desktop installation or rack mounting

IP Routing Feature

• Static Route
• Dynamic Route
• OSPF

Firewall Security

• Cybersecurity
• Stateful Packet Inspection (SPI) firewall
• Blocks DoS/DDoS attack
• Content Filtering
• MAC Filtering and IP Filtering
• NAT ALGs (Application Layer Gateway)
• Blocks SYN/ICMP Flooding

VPN Features

• IPSec/Remote Server (Net-to-Net, Host-to-Net), GRE, PPTP Server, L2TP Server, SSL Server/Client (Open VPN)
• Max. Connection Tunnel Entries: 60 VPN tunnels,
• Encryption methods: DES, 3DES, AES, AES-128/192/256
• Authentication methods: MD5, SHA-1, SHA-256, SHA-384, SHA-512

Networking

• Outbound load balancing
• Failover for dual-WAN
• High Availability
• Captive Portal
• RADIUS Server/Client
• Static IP/PPPoE/DHCP client for WAN
• DHCP server/NTP client for LAN
• Protocols: TCP/IP, UDP, ARP, IPv4, IPv6
• Port forwarding, QoS, DMZ, IGMP, UPnP, SNMPv1,v2c, v3
• MAC address clone
• DDNS: PLANET DDNS, Easy DDNS, DynDNS and No-IP

Others

• Setup wizard
• Dashboard for real-time system overview
• Supported access by HTTP or HTTPS
• Auto reboot
• PLANET Smart Discovery utility/UNI-NMS supported

Powerful VPN Security Solution

The innovation of the Internet has created tremendous worldwide opportunities for e-business and information sharing. It has become essential for businesses to focus more on network security issues. The demand for information security has become the primary concern for the enterprises. To fulfill this demand, PLANET has launched the VR-300 VPN Security Router, an all-in-one appliance that carries several main categories across your network security deployments: Cyber Security, SPI firewall security protection, policy auditing (Content Filtering, VPN Tunnel and MAC/IP Filtering), AP Controller, Captive Portal, RADIUS and easy management (Setup Wizard, DHCP Server and Dashboard). Furthermore, its Dual-WAN Failover, Outbound Load Balance and High-Availability features can improve the network efficiency while the web-based interface provides friendly and consistent user experience.

Wi-Fi Deployments and Authentication with Simplified Management

The VR-300 also provides a built-in AP Controller, Captive Portal, RADIUS and a DHCP server to facilitate small and medium businesses to deploy secure employee and guest access services without any additional server. The VR-300 can offer a secure Wi-Fi network with easy installation for your business.

Centralized Remote Control of Managed APs*

The VR-300 provides centralized management of PLANET Smart AP series via a user-friendly Web GUI. It's easy to configure AP for the wireless SSID, radio band and security settings. With a four-step configuration process, different purposes of wireless profiles can be simultaneously delivered to multiple APs or AP groups to minimize deployment time, effort and cost.

For example, to configure multiple Smart APs of the same model, the VR-300 allows clustering them to a managed group for unified management. According to requirements, wireless APs can be flexibly expanded or removed from a wireless AP group at any time. The AP cluster benefits bulk provision and bulk firmware upgrade through single entry point instead of having to configure settings in each of them separately.

Ideal High-Availability VPN Security Router Solution for SMBs

The VR-300 provides complete data security and privacy for accessing and exchanging most sensitive data, built-in IPSec VPN function with DES/3DES/AES encryption and MD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication, and GRE, SSL, PPTP and L2TP server mechanism. The full VPN capability in the VR-300 makes the connection secure, more flexible, and more capable.

Excellent Ability in Threat Defense

The VR-300’s built-in SPI (stateful packet inspection) firewall and DoS/DDoS attack mitigation functions provide high efficiency and extensive protection for your network. Thus, virtual server and DMZ functions can let you set up servers in the Intranet and still provide services to the Internet users.

Cybersecurity Network Solution to Minimize Security Risks

The cybersecurity feature included to protect the switch management in a mission-critical network virtually needs no effort and cost to install. For efficient management, the VR-300 is equipped with HTTPS web and SNMP management interfaces. With the built-in web-based management interface, the VR-300 offers an easy-to-use, platform independent management and configuration facility. The VR-300 supports SNMP and it can be managed via any management software based on the standard SNMP protocol.

Enterprise 5-Port 10/100/1000T VPN Security Router (Dual-WAN Failover and Load Balancing, Cyber Security, SPI Firewall, IPv4/IPv6 Filtering, Content Filtering, DoS Attack Prevention, Port Range Forwarding, SSL VPN and robust hybrid VPN (IPSec/GRE/PPTP/L2TP), IPv6, SNMP, PLANET Easy-DDNS, High Availability, AP Controller, Captive Portal, RADIUS, SD-WAN, supports CloudViewer app and MQTT)
