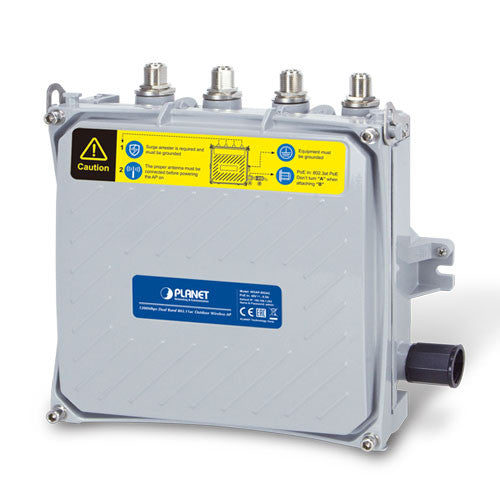

Planet WDAP-802AC IP68 802.11ac, Dual Band 1200Mbps Outdoor Wireless AP

Ultra High Speed and Wide Coverage
PLANET WDAP-802AC 1200Mbps Dual Band 802.11ac Outdoor Wireless AP offer a wide coverage of wireless Internet access and ultimate wireless speed. It comes with the IP68-rated aluminum case protected from contact with harmful dust and immersion in water. It adopts the latest IEEE 802.11ac 2T2R dual-band technology and provides 2.4GHz and 5GHz dual radios with maximum connectivity and performance for long-range coverage. By connecting high-gain antenna through the flexible N-type connectors, the system integrator can easily assist customers in achieving various outdoor long-distance applications under rough weather in any harsh environment.

Flexible, Durable and Reliable Outdoor Characteristics
To reach maximum reliability in the harsh environment, the WDAP-802AC not only comes with IP68-rated Aluminum Die-cast Housing, but also adopts the enterprise-level Qualcomm kernel, capable of withstanding wide temperature ranging from -40 to 70 degrees C. Designed with the IEEE 802.3at PoE+ (Power over Ethernet) power scheme, the WDAP-802AC can be easily installed in the areas where power outlets are not available. Furthermore, it is also suitable to be integrated with PLANET Solar Power PoE System to offer farther wireless service in remote areas.

Central Management Simplifies High-density Deployment
For wireless deployment in high-density environments such as campuses, communities, warehouses, etc., the dual-radio design and coverage threshold make the WDAP-802AC capable of utilizing dual band to relay signal and limit specific clients so as to provide maximum bandwidth to those authenticated users. Moreover, you can simply install our software controller, PLANET SAPC (Smart AP Control), to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

Multiple SSIDs with VLAN Tagging
In the aspect of security, the WDAP-802AC supports WPA/ WPA2, and the 802.1X RADIUS authentication to secure the wireless connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access. This makes it possible for the WDAP-802AC to work with managed Ethernet switches to have VLANs assigned for a different access level and authority.

More User-friendly, Higher Efficiency and Better Experience
The WDAP-802AC is designed to reduce the difficulty of the outdoor configuration and optimize user experience. With the graphical Web GUI and setup wizard assisting administrator quickly in configuring suitable operation modes for various applications, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel occupation among APs. With the automatic transmission power mechanism, distance control and scheduling reboot setting, the WDAP-802AC is easier for administrator to deploy and manage without on-site maintenance.

IP68 802.11ac, Dual Band 1200Mbps Outdoor Wireless AP (802.3at PoE+, 4 x N-Type connector, 802.1Q VLAN, supports Smart AP controller)
