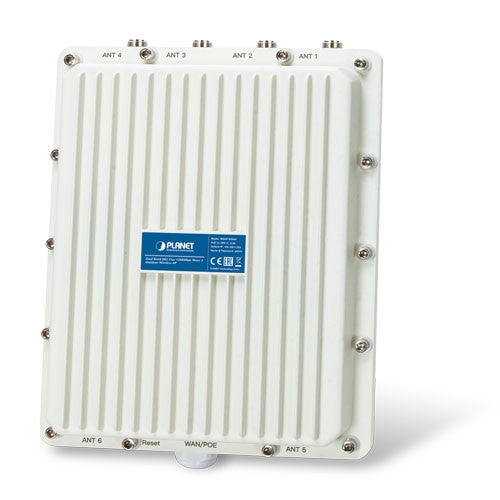

Planet WDAP-850AC IP67 802.11ac Wave 2, Dual Band 1200Mbps Outdoor Wireless

Industrial Wireless LAN and LAN

• Compliant with the IEEE 802.11a/b/g/n/ac Wave 2 MU-MIMO wireless technology
• 802.11ac 2T2R architecture with data rate of up to 1200Mbps (300Mbps at 2.4GHz and 867Mbps at 5GHz)
• Equipped with 10/100/1000Mbps RJ45 port with auto MDI/MDI-X supported
• One reset button and power LED indicator

RF Interface Characteristics

• Built-in four N-type antenna connectors
• High output power with multiply-adjustable transmit power control

Outdoor Environmental Characteristics

• IP67 rating, IEEE 802.3at PoE design
• Rugged protection with aluminum extrusion case and ground terminal
• 20KV surge protection for wire cable interface
• Operating temperature: -40~70 degrees C

Multiple Operation Modes and Wireless Features

• Multiple operation modes: AP, Gateway, Repeater, WDS, WISP
• WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
• Coverage threshold to limit the weak signal of clients occupying session
• Real-time Wi-Fi channel analysis chart and client limit control for better performance

Secure Network Connection

• Full encryption supported: 64-/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
• Supports 802.1Q VLAN and SSID-to-VLAN mapping
• Supports IP/port/MAC address/URL filtering, DoS, SPI firewall
• Supports DMZ and port forwarding
• Bandwidth control per IP address to increase network stability

Easy Deployment and Management

• Supports PLANET AP controllers in AP mode
• Nodes are easily discovered with PLANET Smart Discovery Utility
• Self-healing mechanism through system auto reboot setting
• System status monitoring through remote syslog server
• Supports PLANET DDNS/Easy DDNS

Super High Speed and Wide Coverage

PLANET WDAP-850AC 1200Mbps Dual Band 802.11ac 1200Mbps Wave 2 Outdoor Wireless AP offers a wide coverage of wireless Internet access and ultimate wireless speed. With IEEE 802.11ac Wave 2 MU-MIMO 2T2R dual-band technology, the WDAP-850AC provides a maximum wireless speed of 867Mbps at 5GHz and 300Mbps at 2.4GHz with maximum connectivity and performance for long-range coverage. It comes with the IP67-rated aluminum case protected from contact with harmful dust and waterproof. By connecting high-gain antenna through the flexible N-type connectors, the system integrator can easily assist customers in achieving various outdoor long-distance applications under rough weather in any harsh environment. The WDAP-850AC also offers the 20KV surge protection for wire cable interface that can greatly improve the durability of the product.

Benefits of MU-MIMO under 802.11ac Wave 2

With the MU-MIMO Wave 2 technology, the WDAP-850AC, installed in public areas such as hotspots, airports and conferences, reduces the frustration that Wi-Fi users often experience in downloading web pages, e-mail file attachments and media contents. For cellular operators, the WDAP-850AC provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. For enterprises, this technology also can solve Wi-Fi congestion issues in open work spaces and conference rooms.

Flexible, Durable and Reliable Outdoor Characteristics

To reach maximum reliability in the harsh environment, the WDAP-850AC not only comes with IP67-rated Aluminum Die-cast Housing, but also adopts the enterprise-level Qualcomm kernel, capable of withstanding wide temperature ranging from -40 to 70 degrees C. Designed with the IEEE 802.3at PoE+ (Power over Ethernet) power scheme, the WDAP-850AC can be easily installed in the areas where power outlets are not available. Furthermore, it is also suitable to be integrated with PLANET Solar Power PoE System to offer farther wireless service in remote areas.

Central Management Simplifies High-density Deployment

For wireless deployment in high-density environments such as campuses, communities, warehouses, etc., the dual-radio design and coverage threshold make the WDAP-850AC capable of utilizing dual band to relay signal and limit specific clients so as to provide maximum bandwidth to those authenticated users. Moreover, you can simply install our NMS controller, such as NMS-500 or NMS-1000V, to deliver wireless profiles to multiple APs simultaneously, thus making the central management simple.

Multiple SSIDs with VLAN Tagging

In the aspect of security, the WDAP-850AC supports WPA/WPA2, and the 802.1X RADIUS authentication to secure the wireless connection. Besides, the supported IEEE 802.1Q VLAN allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access. This makes it possible for the WDAP-850AC to work with managed Ethernet switches to have VLANs assigned for a different access level and authority.

More User-friendly, Higher Efficiency and Better Experience

The WDAP-850AC is designed to reduce the difficulty of the outdoor configuration and optimize user experience. With the graphical Web GUI and setup wizard assisting administrator quickly in configuring suitable operation modes for various applications, the built-in Wi-Fi analyzer provides real-time channel utilization to prevent channel occupation among APs. With the automatic transmission power mechanism, distance control and reboot setting, the WDAP-850AC is easier for administrator to deploy and manage without on-site maintenance.

IP67 802.11ac Wave 2, Dual Band 1200Mbps Outdoor Wireless AP (802.3at PoE+, 4 x N-Type connector, 20KV surge protection, -40 to 75C, 802.1Q VLAN, supports NMS-500/NMS-1000V controller)
