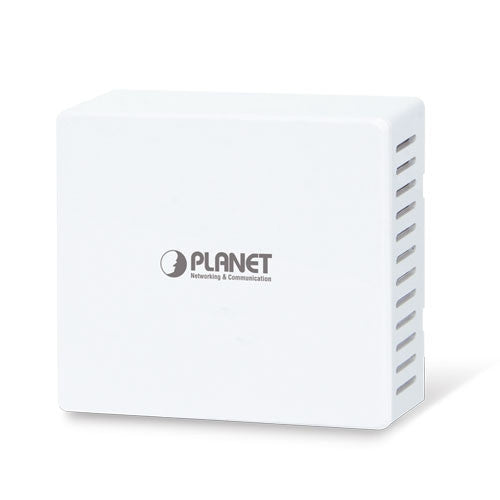

Planet WDAP-W1200E 1200Mbps 802.11ac Wave 2 Dual Band In-wall Wireless Access

Standard Compliant Hardware Interface

• Compliant with IEEE 802.11ac Wave 2 wireless technology with data rate of up to 1200Mbps
• 3 x 10/100/1000BASE-TX port and one PoE powered device (PD/WAN) port
• Support 1 x RJ11 port for traditional phone using
• European 86-type wall outlet compatibility

Secure Network Connection

• Advanced security: 64-/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK (TKIP/AES encryption), 802.1x
• Supports wireless MAC address filtering control to limit the connected wireless clients
• Supports 802.1Q VLAN and SSID-to-VLAN mapping
• Supports IP/Port/MAC address/URL filtering, DoS, SPI firewall
• Supports DMZ and port forwarding
• Bandwidth control per IP address to increase network stability

Multiple Operation Modes and Wireless Features

• Multiple operation modes: AP, Gateway, Repeater, WDS, WISP
• WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
• Coverage threshold to limit the weak signal of clients occupying session
• Real-time Wi-Fi channel analysis chart and client limit control for better performance

Easy Deployment and Management

• Supports PLANET WS/NMS AP Controllers in AP mode
• Easy discovery by PLANET Smart Discovery
• Self-healing mechanism through system auto reboot setting
• System status monitoring through remote Syslog Server
• Supports PLANET DDNS/Easy DDNS

Ultra-high-speed, Wave 2 MU-MIMO All-in-One Manageable Dual-band Wi-Fi Solution for Hotel Industry

PLANET WDAP-W1200E 1200Mbps Wave 2 Dual Band 802.11ac Wireless AP supports central management through PLANET NMS controllers. With IEEE 802.11ac Wave 2 MU-MIMO 2T2R dual-band technology, the WDAP-W1200E provides a maximum wireless speed of 867Mbps at 5GHz and 300Mbps at 2.4GHz. WDAP-W1200E conforms to the standard 86-type electrical junction box and supports IEEE 802.3af/at PoE. It is suitable for in-wall installation enabling to integrate the hotel network with its all-in-one interface. The WDAP-W1200E also provides stable 2.4GHz and 5GHz wireless signals simultaneously that make access to internet viable in regard to whatever nature of work you are into.

Benefits of MU-MIMO under 802.11ac Wave 2

With the MU-MIMO Wave 2 technology, the WDAP-W1200E, installed in public areas such as hotspots, airports and conferences, reduces the frustration that Wi-Fi users often experience in downloading web pages, e-mail file attachments and media contents. For cellular operators, the WDAP-W1200E provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. For enterprises, this technology also can solve Wi-Fi congestion issues in open work spaces and conference rooms.

Powerful Dual-band WLAN Solution

PLANET WDAP-W1200E, adopting the IEEE 802.11ac Wave 2 standard, provides a high-speed transmission of power and data, meaning two remote nodes in the 5GHz frequency band can be bridged. The 2.4GHz wireless connection can also be used simultaneously. Furthermore, the WDAP-W1200E adopts the high-class Qualcomm Atheros SoC (System-on-a-Chip), which provides higher stability to meet the stringent requirements of the solution.

Easy Deployment with PLANET AP Controller

To expand the capability of in-wall AP, PLANET WDAP-W1200E comes with centralized management, enabling the hospitality industry to deploy multiple APs with a single interface of AP controller and reducing repetitive tasks including AP provisioning, AP status monitoring and AP maintenance. In addition, by connecting with PLANET AP controller, PLANET WDAP-W1200E helps hoteliers optimize their wireless network within minutes.

Suitable for Any Room Installation without Spoiling Interior Design

Featuring attractive in-wall design, the WDAP-W1200E can be firmly installed into the wall via the standard 86 x 86 mm European outlet box, which makes electrical wiring invisible and convenient for room installation without affecting the original interior design. It is ideal for hotels, residences, hospitals and more to establish any kind of wireless network.

Comprehensive Wireless Operation Modes

The WDAP-W1200E supports multiple wireless communication connectivities such as AP, Gateway, WISP, Repeater [Point-to-Point (PtP), Point-to-Multipoint (PtMP)] and Super WDS, allowing users to comprehensively experience various applications.

Basic Features Worth Mentioning

There are LED indicators showing LAN1, LAN2, WAN (in Gateway and WISP modes) and SYS (power) statuses when the cover of the WDAP-W1200E is removed. Along the indicators is the reset button for rebooting to the factory default mode. On the back of the unit are two Ethernet ports used for one IPTV and one desktop PC, and one RJ11 port used for one digital phone.

1200Mbps 802.11ac Wave 2 Dual Band In-wall Wireless Access Point, 802.3at PoE PD, 3 10/100/1000T LAN, 1 RJ11, 802.1Q VLAN, supports NMS-500/NMS-1000V controller (EU Type)
