Planet WGSD-10020 L2+ 8-Port 10/100/1000T + 2 100/1000X SFP Managed Switch

Planet WGSD-10020 Features

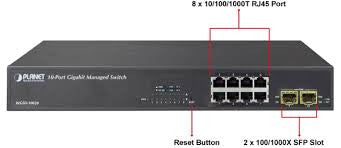

Physical Port
8-Port 10/100/1000BASE-T Gigabit Ethernet RJ45
2 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
RS-232 DB9 console interface for basic management and setup

Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
- Broadcast / Multicast / Unicast / Unknown-unicast
Supports VLAN
- IEEE 802.1Q tagged VLAN
- Up to 255 VLANs groups, out of 4095 VLAN IDs
- Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- Private VLAN Edge (PVE)
- Protocol-based VLAN
- MAC-based VLAN
- IP Subnet-based VLAN
- Voice VLAN
- Management VLAN
Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol
- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
- STP BPDU Guard and BPDU filtering
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP)
- Cisco ether-channel (Static Trunk)
- Maximum 5 trunk groups, up to 5 ports per trunk group
- Up to 20Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port Mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops

Layer 3 IP Routing Features
Supports maximum 32 software static routes and route summarization

Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
- IEEE 802.1p CoS
- TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- IP TCP/UDP port number
- Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic-policing policies on the switch port
DSCP remarking

Multicast
Supports IGMP Snooping v1, v2 and v3 for IPv4 multicasting network
Supports MLD Snooping v1 and v2 for IPv6 multicasting network
Querier mode support
IGMP Snooping port filtering
MLD Snooping port filtering
MVR (Multicast VLAN Registration)

Security
Authentication
− IEEE 802.1x Port-based / MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS / TACACS+ users access authentication
Access Control List
− IPv4 / IPv6 IP-based ACL
- MAC-based ACL
Source MAC / IP address binding
Port Security for Source MAC address entries filtering
DHCP Snooping to filter distrusted DHCP messages
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
IP Source Guard prevents IP spoofing attacks
Auto DoS rule to defend DoS attack
IP address access management to prevent unauthorized intruder

Management
IPv4 and IPv6 dual stack management
Switch Management Interfaces
- Console / Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c, and v3 switch management
- SSH / SSL secure access
User Privilege levels control
System Maintenance
- Configuration upload / download through Web interface
- Dual Images
- Reset button for system reboot or reset to factory default
- Built-in Trivial File Transfer Protocol (TFTP) client
Four RMON groups (history, statistics, alarms, and events)
IPv6 IP Address / NTP / DNS management and ICMPv6
BOOTP and DHCP for IP address assignment
DHCP Relay
DHCP Option82
NTP (Network Time Protocol)
Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
PLANET Smart Discovery Utility for deploy management

Planet WGSD-10020 Overview

Multi-function Managed Switch Solution for Small/Medium-size Network for Multiple Applications

PLANET WGSD-10020 is a desktop size, 10-port Managed Gigabit Switch with powerful L2/L4 network switching engine and advanced IPv6 / IPv4 management functions, designed for SMB and FTTx networks. It can handle an extremely large amount of multicast stream and voice data in a secure topology linking to an Enterprise backbone or high capacity network server with 20Gbps switching fabric delivered in a fanless, 13-inch metal case. It is also ideal for the remote access layer of campus or enterprise networks and the aggregation layer of IP metropolitan networks. The powerful features of QoS and network security offered by the WGSD-10020 provides effective data traffic control for ISPs and enterprises utilizing VoIP, video streaming and multicast applications.

Solution for IPv6 Networking
By supporting IPv6 / IPv4 dual stack and plenty of management functions with easy and friendly management interfaces, the WGSD-10020 is the best choice for video, voice and wireless service providers to connect with the IPv6 network. It also helps SMBs to step in the IPv6 era with the lowest investment but not necessary to replace the network facilities while the ISP constructs the IPv6 FTTx edge network.

Fanless Design
Adopting the latest chip process and green technology, the WGSD-10020 successfully reduces substantial power consumption with the fanless and noiseless design collocating with the effective cooler. Therefore, the WGSD-10020 is able to operate stably and quietly in any environment without affecting its performance.

Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management
To help customers stay on top of their businesses, the WGSD-10020 not only provides ultra high transmission performance and excellent layer 2 technologies, but also offers IPv4/IPv6 Software VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly secured, flexible management and simpler networking application.

Robust Layer 2 Features
The WGSD-10020 can be programmed for advanced switch management function, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The WGSD-10020 allows the operation of a high-speed trunk combining multiple ports. It enables you to configure up to 5 ports as a trunk group (a maximum of 5 trunk groups are available), and supports connection fail-over as well.

Powerful Security
The WGSD-10020 offers comprehensive layer 2 to layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x port-based and MAC-based user and device authentication.

Enhanced Security and Traffic Control
The WGSD-10020 also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secured corporate networks with considerably less time and effort than before.

User-friendly Secure Management
For efficient management, the WGSD-10020 managed switch series is equipped with console, Web and SNMP management interfaces. With the built-in web-based management interface, the WGSD-10020 offers an easy-to-use, platform-independent management and configuration facility. The WGSD-10020 supports SNMP and it can be managed via any management software based on standard of SNMP v1 and v2 protocol. For reducing product learning time, the WGSD-10020 offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the WGSD-10020 offers remote secure management by supporting SSH, SSL and SNMPv3 connection which can be encrypted the packet content at each session.

Flexible and Extendable Solution
The two mini-GBIC SFP slots built in the WGSD-10020 support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, meaning the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to above 10/20/30/40/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP Diagnosis Mechanism
The WGSD-10020 supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
