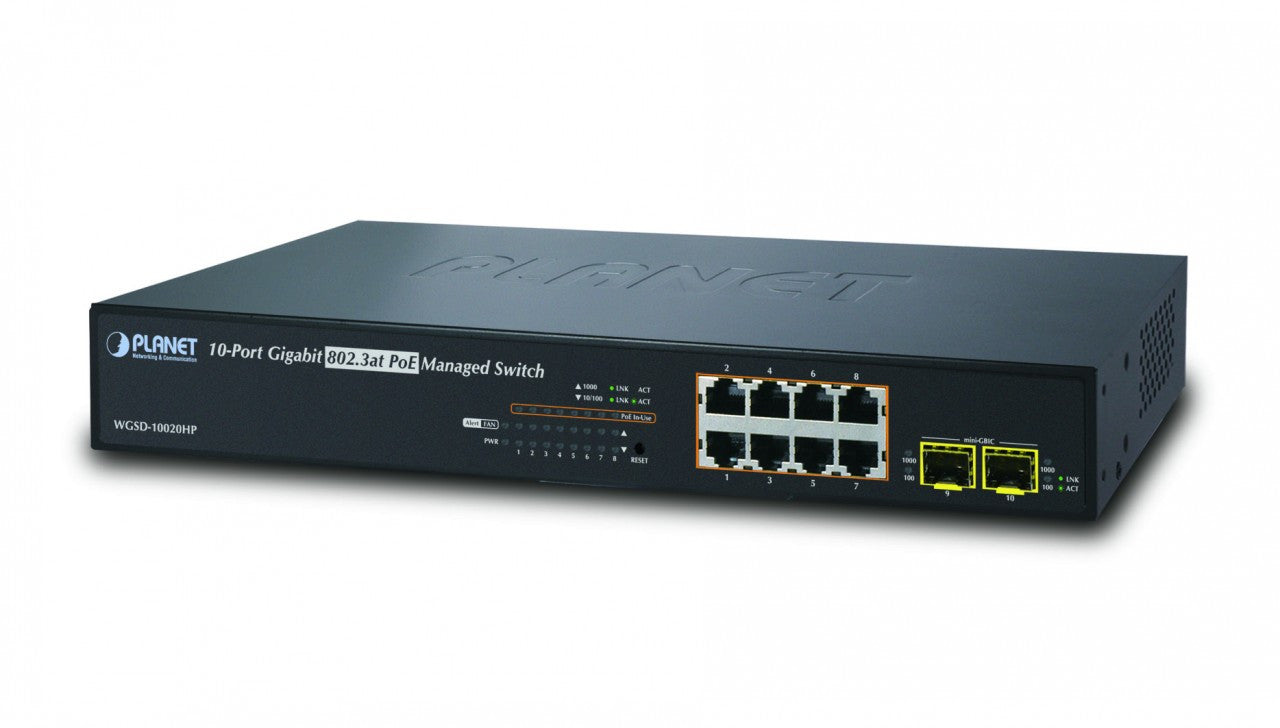

Planet WGSD-10020HP PoE Switch

Planet WGSD-10020HP Features

Hardware Specifications

• Ethernet Ports: 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
• Poe Ports: 8
• Switch Throughput: 14.88Mpps
• Switch Architecture: Store and Forward
• Power Requirement: AC 100~240V, 50/60Hz,
• Power Consumption: Max. 172.9 Watts / 589.6 BTU
• Auto Detect: Yes, Auto detect powered device (PD)
• LED Display: Power, FAN Alert, 10/100/1000 Link / Act per RJ-45 port, 100/1000 Link/ Act per SFP port, PoE In-Use for Port-1~8
• Dimension (W x D x H): 330 x 155 x 43.5mm
• Weight: 1.8Kg
• Operating Temperature: 0 ~ 50 Degree C 20% ~ 95%, relative humidity, non-condensing

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 56V DC, Max. 30.8 Watts
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 150 Watts
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX/100Base-FX, IEEE 802.3z Gigabit SX/LX, IEEE 802.3ab Gigabit 1000Base-T, IEEE 802.3x Flow Control and Back pressure, IEEE 802.3ad Port trunk with LACP, IEEE802.1D Spanning tree protocol, IEEE 802.1w Rapid spanning tree protocol, IEEE 802.1s Multiple spanning tree protocol, IEEE 802.1p Class of Service, IEEE 802.1 Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.1abLLDP, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet plus, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP Version 1, RFC 2236 IGMP Version 2, RFC 3376 IGMP Version 3, RFC 2710 MLD Version 1, FRC 3810, MLD Version 2

Planet WGSD-10020HP Overview

Centralized Power Management for Gigabit Ethernet Networking To satisfy the PoE network applications requiring higher power supply with Gigabit speed transmission, PLANET introduces the WGSD-10020HP, the 8-Port Gigabit High Power over Ethernet Managed Switch designed in 13-inch desktop size for flexible deployment. The WGSD-10020HP features high performance Gigabit IEEE 802.3af PoE (Up to 15.4W) and IEEE 802.3at PoE PLUS (Up to 30.8W) on all ports. A maximum of 30.8 Watts is available on its Gigabit ports for powering PDs (Powered Device), with a maximum PoE delivery of 150 Watts for all ports to per device in order to satisfy the increasing needs of power consumption by powered devices. Providing Gigabit throughput and high power supply, the WGSD-10020HP optimizes the installation and power management of network devices such as 11n wireless access points (AP) with Gigabit PoE LAN port, security PTZ (Speed Dome) network video cameras, large screen PoE Video phones, thin-clients and etc.

PoE Schedule for Energy Saving Under the trend of energy saving worldwide and contribution to environment protection on the earth, the WGSD-10020HP can effectively control the power supply along with its capability of giving high watts power over Ethernet. The “PoE schedule” function enables you to activate or inactivate PoE power feeding for each PoE port during specified time intervals, which is a powerful function to help SMB or Enterprise save power and money.

Cost-effective IPv6 Managed Gigabit Switch Solution for SMB To fulfill the demand of IPv6 (Internet Protocol version 6) network infrastructure, the WGSD-10020HP supports both IPv4 and IPv6 management functions. It can work with original IPv4 network structure and also support the IPv6 network structure in the future. With plenty of management functions designed in easy and friendly management interfaces, the WGSD-10020HP is the best choice for ISPs to build the IPv6 FTTx edge service and for SMB to connect with IPv6 network.

Diversity for Multiple Applications The WGSD-10020HP is a desktop size Layer 2 / Layer 4 Full Managed Gigabit Switch which can handle extremely large amounts of data in a secure topology linking to an Enterprise backbone or high capacity network server with 20Gbps switching fabric. The powerful features of QoS and network security offered by the WGSD-10020HP provides effective data traffic control for ISPs and Enterprises VoIP, video streaming and multicast applications. It is ideal for the remote access layer of campus and enterprise networks, and the aggregation layer of IP metropolitan networks.

Robust Layer 2 Features The WGSD-10020HP can be programmed for advanced switch management functions such as dynamic Port link aggregation, Q-in-Q VLAN, private VLAN, Multiple Spanning Tree protocol (MSTP), Layer 2 to Layer 4 QoS, bandwidth control and IGMP/MLD Snooping. The WGSD-10020HP provides 802.1Q Tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the WGSD-10020HP allows the operation of a high-speed trunk combining multiple ports. It enables maximum up to 5 groups of 10 ports for trunk and supports fail-over as well.

Enhanced Security PLANET WGSD-10020HP offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP / UDP ports or defined typical network applications. Its protection mechanism also comprises of 802.1x Port-Based and MAC-Baseduser and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The WGSD-10020HP also provides Network Security functions including DHCP Snooping, IP Source Guard and Dynamic ARP Inspection to prevent IP snooping attack and discard ARP packets with invalid MAC address. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Excellent Traffic Control The WGSD-10020HP is loaded with powerful traffic management and QoS features to enhance services offered by telecoms. The QoS features includes wire-speed Layer 4 traffic classifiers and bandwidth limiting that are particular useful for multi-tenant unit, multi business unit, Telco, or Network Service Provider applications. The WGSD-10020HP also empowers the enterprises to take full advantages of the limited network resources and guarantees the best performance in VoIP and Video conferencing transmission.

Efficient and Secure Management For efficient management, the WGSD-10020HP Managed Ethernet Switch is equipped with console, WEB and SNMP management interfaces. With the built-in Web-Based management interface, the WGSD-10020HP offers an easy-to-use, platform-independent management and configuration facility. The WGSD-10020HP supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the WGSD-10020HP can be accessed via Telnet and the console port. Moreover, the WGSD-10020HP offers secure remote management by supporting SSH, SSL and SNMPv3 connection which encrypt the packet content at each session.

Flexibility and Extension Solution The two mini-GBIC slots built in the WGSD-10020HP support Dual-Speed, 100Base-FX and 1000Base-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules, that means, the administrator now can flexibly choose the suitable SFP transceiver according to the transmission distance or the transmission speed required. The distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/20/30/40/50/60/70/120 kilometers (Single-Mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.
