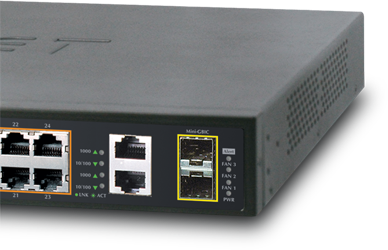

Planet WGSW-2620HP 24 Port Managed Network Switch
Planet WGSW-2620HP 24 Port Managed Network Switch


Planet WGSW-2620HP 24 Port Managed Network Switch

Sale price$470.00

Usually Ships in 10 - 12 days


Planet WGSW-2620HP Feature

Hardware Specifications

  • Ethernet Ports: 24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports, 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports, 2 1000Base-SX/LX/BX, shared with Port-25~Port-26
  • PoE Ports: 24 PoE Ports
  • Switch Throughput: 6.547Mpps @64Bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: 100 - 240VAC, 50 - 60Hz, Auto-sensing
  • Power Consumption: System ‧110V: 29 Watts / 98BTU to ‧220V: 31 Watts / 105BTU, Ethernet Full Loading ‧110V: 34 Watts / 116BTU to ‧220V: 35 Watts / 119BTU, PoE Full Loading‧110V: 360 Watts / 1228BTU to ‧220V: 360 Watts / 1228BTU
  • Auto Detect: Yes, Auto detect powered device (PD)
  • LED Display: Power, FAN Alarm Link / Activity (Green), PoE In-Use (Amber), 1000 LNK / ACT(Green), 10/100 LNK / ACT(Green)
  • Dimension (W x D x H): 440 x 300 x 44.5 mm, 1U height
  • Weight: 4.6kg
  • Operating Temperature: 0 ~ 50 Degree C
  • Operating Humidity: 20% ~ 95%, relative humidity
  • Warranty: 3 Year Warranty

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af / IEEE 802.3at Power over Ethernet / PSE
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 52V DC, 350mA . Max.15.4 Watts (IEEE 802.3af) or Per Port 52V DC, 590mA. Max. 30 Watts (IEEE 802.3at)
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 360 Watts (Port 1 to port 12: 180 Watts, port 13 to port 24: 180 Watts)
  • Standards Compliance: IEEE 802.3:10Base-T, IEEE 802.3u:100Base-TX, IEEE 802.3z:1000Base-SX/LX, IEEE 802.3ab:1000Base-T, IEEE 802.3x:Flow Control and Back pressure, IEEE 802.3ad:Port trunk with LACP, IEEE 802.1D:Spanning Tree Protocol, IEEE 802.1s:Multiple Spanning Tree Protocol, IEEE 802.1p:Class of Service, IEEE 802.1Q:VLAN Tagging, IEEE 802.1x:Port Authentication Network Control, IEEE 802.3af:Power over Ethernet, IEEE 802.3at:Power over Ethernet

Planet WGSW-2620HP Overview

High Power PoE for Security and Public Service PoE Applications
The PLANET WGSW-2620HP, the next generation Managed PoE Switch, features IEEE 802.3af and High Power IEEE 802.3at Power over Ethernet (PoE) that combines up to 30 Watts power output and data per port over one CAT 5E/6 Ethernet cable. It is designed specifically to satisfy the growing demand of higher power consuming network PD (powered devices) such as PTZ (Pan, Tilt & Zoom) / Speed Dome network cameras, multi- channel (802.11a/b/g/n) wireless LAN access points and other network devices by providing double PoE power than conventional 802.3af PoE currently.

Flexible PoE System Management
The PoE in-line power following the IEEE 802.3af and IEEE 802.3at standards makes the WGSW-2620HP able to power on 24 IEEE 802.3af PoE devices or 12 IEEE 802.3at PoE devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. The WGSW-2620HP provides advanced PoE management functions and high reliability. It features System PoE Admin Mode for users to switch PoE system mode between IEEE 802.3af and IEEE 802.3at easily and flexibly. The Temperature Threshold and PoE Usage Threshold also enable more exact reliability control.

Cost-effective Solution with SNMP Monitor for Network Deployment
The cost-effective PoE Managed Switch WGSW-2620HP is released for catering not only to the need of easy Web-Based management but also the centralized SNMP application to monitor the status of Switch and traffic per port.

High Performance Wire-Speed Switching
The WGSW-2620HP offers 24 10/100Mbps Fast Ethernet ports with 2 Gigabit TP/SFP combo ports (Port-25, 26). The two Gigabit TP/SFP combo ports can be either 1000Base-T for 10/100/1000Mbps or 1000Base-SX/LX through SFP (Small Form-Factor Pluggable) interface. The WGSW-2620HP boasts a high performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 8.8Gbps. Its two built-in GbE uplink ports also offer incredible extensibility, flexibility and connectivity to the Core switch or Servers.

Remote and Centralized Management
Afford the current network to grow and expand, the WGSW-2620HP provides advanced Web and SNMP management interface for efficient network operation. With its built-in Web-Based management, the WGSW-2620HP offers an easy-to-use, platform-independent management and configuration facility. It also supports standard Simple Network Management Protocol (SNMP) and can be monitored via any standard-based management software. For efficient management, via Web interface the WGSW-2620HP can be programmed for basic switch management functions such as port speed configuration, Port Trunking, VLAN, Port Mirroring, Rapid Spanning Tree and Misc Configuration. Additionally, the firmware includes advanced features such as IGMP snooping, QoS (Quality of Service), broadcast storm and bandwidth control, to enhance bandwidth utilization.

Powerful Security
The WGSW-2620HP offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms comprises of Port-Based 802.1X user and device authentication. Moreover, the Switch provides MAC filter and Static MAC to enforce security policies to the edge. The administrators can now construct highly secured corporate networks with considerably less time and effort than before.
