Sale price$632.00
SKU: WGSW-28040P4

Usually Ships in 10 - 12 days



Planet WGSW-28040P4 Features

Hardware Specifications

  • Ethernet Ports: 28 10/100/1000Base-T RJ-45 Auto-MDI / MDI-X ports
  • PoE Ports: 24
  • Switch Throughput: 41.67Mpps @64Bytes
  • Switch Architecture: Store and Forward
  • Power Requirement: AC 100~240V, 50/60Hz
  • Power Consumption: Max. 398 Watts / 1357.18 BTU
  • Auto Detect: Yes, Auto detect powered device (PD)
  • LED Display: PWR, SYS, LNK / ACT, PoE In-Use, 1000, PWR Alert, FAN 1 & 2 Alert
  • Dimension (W x D x H): 440 x 300 x 44.5 mm
  • Weight: 4.3kg
  • Operating Temperature: 0 ~ 50 Degree C with 20% ~ 95%, relative humidity, non-condensing
  • Warranty: 3 Year Warranty

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af PoE / PSE
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 48V DC Max. 15.4 Watts
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 380 Watts
  • Regulation Compliance: FCC Part 15 Class A, CE
  • Standards Compliance: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3z 1000Base-SX/LX, IEEE 802.3ab Gigabit 1000Base-T, IEEE 802.3x Flow Control, IEEE 802.3ad Port trunk with LACP, IEEE 802.1D Spanning tree protocol, IEEE 802.1w Rapid spanning tree protocol, IEEE 802.1s Multiple spanning tree protocol, IEEE 802.1p Class of service, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, IEEE 802.3af Power over Ethernet
See datasheet for Layer 2 Features

Planet WGSW-28040P4 Overview

Incredible Perfect 24 Ports PoE Gigabit Switch for SMB Network

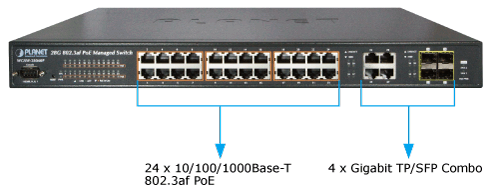

PLANET introduces the latest cost-effective Managed PoE Gigabit Switch - WGSW-28040P Series that is perfectly designed for SMB and SOHO PoE network construction. The WGSW-28040P Series is a 28-Port Gigabit Ethernet switch providing 802.3af Power over Ethernet on its first 24 Gigabit ports and 4 extra Gigabit TP/SFP combo uplink interfaces for connecting the PoE Switch to core network. Besides the user-friendly but advanced IPv6 / IPv4 management interfaces and abundant L2 / L4 switching functions, the WGSW-28040P Series applies the Green technology to provide energy saving, high speed and reliable office network environment. The WGSW-28040P Series is quite suitable for next generation network deployment and offers the lowest total cost of ownership. It is the best investment for business expanding or upgrading its network infrastructure.

High Performance
The WGSW-28040 Series provides 28 Gigabit Ethernet ports in which including 4 shared Gigabit SFP slots. It boasts high performance architecture of switch that is capable for providing the non-blocking switch fabric and wire-speed throughput as high as 56Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Easy Cabling Installation by Power over Ethernet
The PoE in-line power following the standard IEEE 802.3af makes the WGSW-28040P Series able to power on 24 PoE compliant devices at the distance up to 100 meters through the 4-pair Cat 5/5e UTP wire. With data and power over Ethernet from one unit, it can easily build a power centrally-controlled IP phone system, IP camera system, or Wireless AP group for the enterprises. Adopting the PoE technology for a wire carrying both data and power, the WGSW-28040P Series shall reduce cables deployment and the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Therefore, the WGSW-28040P Series helps the SMBs lower the installation costs, simplify the installation effort and eliminate the need of electricians or extension cords.

IPv6 / IPv4 Dual Stack
By supporting IPv6 management features and also backward compatible with IPv4, the WGSW-28040 Series helps the SMBs to step in the IPv6 era with the lowest investment but not need to replace the network facilities while the ISP constructs the IPv6 FTTx edge network.

Robust Layer 2 Features
The WGSW-28040 Series can be programmed for advanced switch management functions such as dynamic Port link aggregation, 802.1Q VLAN and Q-in-Q VLAN, Multiple Spanning Tree protocol (MSTP), Loop and BPDU Guard, and IGMP Snooping. Via aggregation of supporting ports, the WGSW-28040 Series allows the operation of a high-speed trunk combining multiple ports as a 16Gbps fat pipe and supports fail-over as well.

Efficient Traffic Control
The WGSW-28040 Series is loaded with robust QoS features and powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast / multicast storm control, per port bandwidth control, IP DSCP QoS priority and remarking. It guarantees the best performance at VoIP and Video stream transmission and empowers the enterprises to take full advantages of the limited network resources.

Enhanced and Secure Management
For efficient management, the WGSW-28040 Series is equipped with console, WEB, telnet and SNMP management interfaces. With the built-in Web-Based management interface, the WGSW-28040 Series offers an easy-to-use, platform-independent management and configuration facility. By supporting standard Simple Network Management Protocol (SNMP), the switch can be managed via any standard management software. For text-based management, the switch can be accessed via Telnet and the console port. Moreover, the WGSW-28040 Series offers secure remote management by supporting SSH and SSL connection which encrypt the packet content at each session.

Powerful Security for User Management
PLANET WGSW-28040 Series offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1X Port-Based authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. With the Protected Port function, communication between edge ports can be prevented to guarantee user privacy. Port Security allows limiting the number of users on a given port. The network administrators can now construct highly secured corporate networks with considerably less time and effort than before.

Flexible Network Extension Solution
The four mini-GBIC slots built in the WGSW-28040 Series are compatible with 100/1000Base-SX/LX and WDM SFP (Small Form Factor Pluggable) fiber-optic modules. The transmission distance can be extended from 550 meters (Multi-Mode fiber) up to above 10/20/30/40/50/70/120 kilometers (Single-Mode fiber or WDM fiber). It is well suited for applications in the enterprise data centers and distributions.
