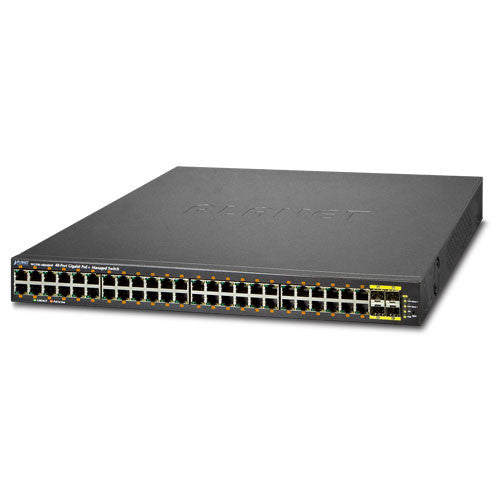

Planet WGSW-48040HP 48 Port Managed Gigabit PoE Network Switch

Planet WGSW-48040HP Features

Hardware Specifications

• Ethernet Ports: 48 10/100/1000Base-T RJ-45 auto-MDI/MDI-X ports, 4 100/1000Base-X SFP interfaces, shared with Port-45 to Port-48 compatible with 100Base-FX SFP transceiver
• PoE Ports: 48-Port with 802.3af/802.3at PoE injector function
• Switch Throughput: 71.4 Mpps@64Bytes
• Switch Architecture: Store and Forward switch architecture
• Power Requirement: AC 100~240V, 50/60Hz, 12A
• Power Consumption: 722 watts / 2462 BTU
• LED Display: System:
  　　　Power (Green)
  　　　SYS (System, Green)
  Alert:
  　　　Fan Alarm 1 (Red)
  　　　Fan Alarm 2 (Red)
  PoE Ethernet Interfaces (Port 1 to Port 48):
  　　　LNK/ACT (10/100/1000Mbps, Green)
  　　　PoE-in-Use (Orange)
  100/1000Mbps SFP Combo Interfaces (Port 45 to Port 48):
  　　　LNK/ACT (100/1000X, Green)
• Dimension (W x D x H): 440 x 440 x 44.2 mm, 1U height
• Weight: N/A
• Operating Temperature: N/A

Power over Ethernet Specifications

• PoE Standard: IEEE 802.3af/802.3at Power over Ethernet / PSE
• PoE Power Supply Type: End-Span
• PoE Power Output: Per Port 52V DC, 590mA, Max. 30.8 watts
• Power Pin Assignments: 1/2(+), 3/6(-)
• PoE Power Budget: 600 watts (max.)@ 25 degrees C
• Regulation Compliance: FCC Part 15 Class A, CE
• Standards Compliance: See datasheet

Planet WGSW-48040HP Overview

The WGSW-48040HP is PLANET’s first one 48-port Layer 2 Plus 802.3at PoE Managed Gigabit Switch, which provides high density performance and supports IPv4 and IPv6 Layer 3 static routing. The WGSW-48040HP has 48 IEEE 802.3at PoE+ ports and PoE budget up to 600 watts for catering to medium to large scale of VoIP or IP Surveillance networks at a lower total cost.
