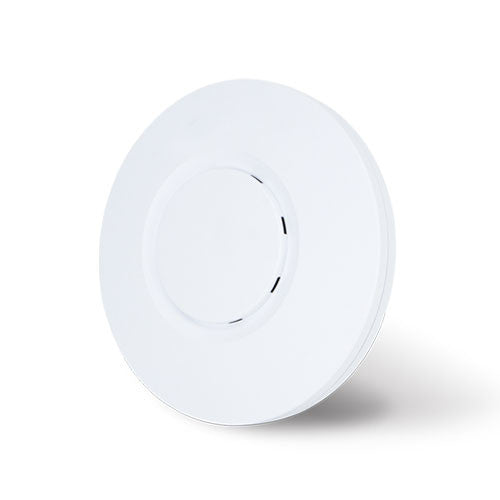

Planet WNAP-C3220E 300Mbps 802.11n Ceiling-mount Wireless Access Point

Centrally Managed Wireless Network for Enterprises
PLANET WNAP-C3220E 300Mbps 802.11n Wireless Access Point offers High power and user limitation control that can extend your wireless network coverage and manage clients easily. With 802.1Q VLAN and PLANET AP Controller compliance, the WNAP-C3220E can help create a secure, cost-effective and highly-scalable wireless LAN infrastructure that provides a seamlessly and centrally managed wireless network.

Comprehensive Wireless Operation Mode
The WNAP-C3220E supports multiple types of wireless connectivity such as AP, Gateway, Repeater, WDS Point-to-Point (PtP) and WDS Point-to-Multipoint (PtMP), allowing users to comprehensively experience various applications. It also helps users to easily build wireless network and extend the wireless range of the existing wireless network.

Wireless Range Extender
To extend the coverage and eliminate the dead spot of wireless network in every place, the WNAP-C3220E supports Universal Repeater mode which can solve the incompatibility between brands and provides a high-speed, wide coverage. The space-saving and ceiling-mountable design makes the WNAP-C3220E exquisite and easy to be mounted on the ceiling or wall in different places. The built-in intelligent 5dBi high-gain antennas offer 360 degrees of wider coverage with excellent performance.

Advanced, Secure and Rigorous Authentication
The WNAP-C3220E supports 128-bit WEP, WPA / WPA2, WPA-PSK and WPA2-PSK wireless encryptions, the advanced WPA2-AES mechanism and 802.1X RADIUS authentication, which can effectively prevent eavesdropping by unauthorized users or bandwidth occupied by unauthenticated wireless access. Furthermore, any users are granted or denied access to the wireless LAN network based on the ACL (Access Control List) that the administrator pre-established. For management purposes, the IEEE 802.1Q VLAN supported allows multiple VLAN tags to be mapped to multiple SSIDs to distinguish the wireless access.

Flexible Deployment with PoE Feature
Compliant with IEEE 802.3af/at Power over Ethernet standard, the WNAP-C3220E can be powered and networked by a single UTP cable. It thus reduces the needs of extra cables and dedicated electrical outlets on the wall, ceiling or any other place which is difficult to reach. The wireless AP deployment becomes more flexible and worry-free from the power outlet locations.

300Mbps 802.11n Ceiling-mount Wireless Access Point, 802.3af/at PoE PD, 802.1Q VLAN, supports Smart AP controller
