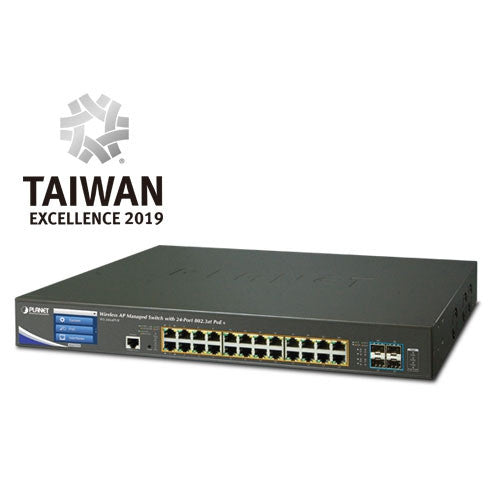

Planet WS-2864PVR Wireless AP Managed Switch with 24-Port 10/100/1000T 802.3at PoE

Sale price$1,697.50
Discontinued
SKU: WS-2864PVR

Usually Ships in 10 - 12 days

Contact

Physical Port

  • 24 10/100/1000BASE-T Gigabit RJ45 copper ports with 24-port IEEE 802.3af/at PoE+ injector
  • 4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
  • RS-232 RJ45 console interface for switch basic management and setup

Wireless LAN AP Management

  • Dashboard: provides at-a-glance view of system and wireless network status
  • AP Discovery: one key to discover the managed APs on the managed LAN
  • Customized Profile: allows multiple wireless profiles creation and maintenance
  • Auto Provision: multi-AP provisioning with one click
  • Cluster Management: simplifies high-density AP management
  • Zone Plan: optimizes AP deployment with actual signal coverage
  • Analysis: real-time AP status monitoring
  • Scalability: free system upgrade and AP firmware bulk upgrade capability

Power over Ethernet

  • Up to 24 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE Power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters
  • PoE Management
  • - PoE Port Status monitoring
    - Total PoE power budget control
    - Over temperature protection
    - PoE usage threshold
    - Temperature threshold
    - Per port PoE function enable/disable
    - PoE Port Power feeding priority
    - Per PoE port power limit
    - PD classification detection
    - Sequence port PoE

Layer 2 Features

  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
  • Storm Control support
  • - Broadcast/Multicast/Unknown unicast
  • Supports VLAN
  • - IEEE 802.1Q tagged VLAN
    - Up to 255 VLANs groups, out of 4095 VLAN IDs
    - Supports provider bridging (VLAN Q-in-Q, IEEE 802.1ad)
    - Private VLAN Edge (PVE)
    - Protocol-based VLAN
    - MAC-based VLAN
    - Voice VLAN
  • Supports Spanning Tree Protocol
  • - IEEE 802.1D Spanning Tree Protocol
    - IEEE 802.1w Rapid Spanning Tree Protocol
    - EEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
    - BPDU Guard
  • Supports Link Aggregation
  • - 802.3ad Link Aggregation Control Protocol (LACP)
    - Cisco ether-channel (static trunk)
    - Maximum 14 trunk groups, up to 4 ports per trunk group
    - Up to 80Gbps bandwidth (full duplex mode)
  • Provides port mirror (many-to-1)
  • Port mirroring to monitor the incoming or outgoing traffic on a particular port
  • Loop protection to avoid broadcast loops
  • Supports ERPS (Ethernet Ring Protection Switching)

Layer 3 IP Routing Features

  • Supports maximum 128 static routes and route summarization
  • IP dynamic routing protocol supports OSPFv2
  • Routing interface provides per VLAN routing mode

Quality of Service

  • Ingress Shaper and Egress Rate Limit per port bandwidth control
  • 8 priority queues on all switch ports
  • Traffic classification
  • - IEEE 802.1p CoS
    - TOS/DSCP/IP Precedence of IPv4/IPv6 packets
    - IP TCP/UDP port number
    - Typical network application
  • Strict priority and Weighted Round Robin (WRR) CoS policies
  • Supports QoS and In/Out bandwidth control on each port
  • Traffic policing on the switch port
  • DSCP remarking

Multicast

  • Supports IGMP Snooping v1, v2 and v3
  • Supports MLD Snooping v1 and v2
  • Querier mode support
  • IGMP Snooping port filtering
  • MLD Snooping port filtering
  • Multicast VLAN Registration (MVR) support

Security

  • Authentication
  • - IEEE 802.1x Port-based/MAC-based network access authentication
    - Built-in RADIUS client to co-operate with the RADIUS servers
    - TACACS+ login users access authentication
    - RADIUS/TACACS+ users access authentication
  • Access Control List
  • - IP-based Access Control List (ACL)
    - MAC-based Access Control List
  • Source MAC/IP address binding
  • DHCP Snooping to filter un-trusted DHCP messages
  • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
  • IP Source Guard prevents IP spoofing attacks
  • Auto DoS rule to defend DoS attack
  • IP address access management to prevent unauthorized intruder

Management

  • IPv4 and IPv6 dual stack management
  • Switch Management Interfaces
  • - Console/Telnet Command Line Interface
    - 2.4” inch LCD touch screen
    - Web switch management
    - SNMP v1, v2c, and v3 switch management
    - SSH/SSL secure access
  • IPv6 IP Address/NTP/DNS management
  • Built-in Trivial File Transfer Protocol (TFTP) client
  • BOOTP and DHCP for IP address assignment
  • System Maintenance
  • - Firmware upload/download via HTTP/TFTP
    - Reset button for system reboot or reset to factory default
    - Dual Images
  • DHCP Relay
  • DHCP Option82
  • User Privilege levels control
  • NTP (Network Time Protocol)
  • Link Layer Discovery Protocol (LLDP) and LLDP-MED
  • Network Diagnostic
  • - ICMPv6/ICMPv4 Remote Ping
    - Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
  • SMTP/Syslog remote alarm
  • Four RMON groups (history, statistics, alarms and events)
  • SNMP trap for interface Linkup and Linkdown notification
  • System Log
  • PLANET Smart Discovery Utility for deployment management

Wireless AP Managed Switch with 24-Port 10/100/1000T 802.3at PoE + 4-Port 10G SFP+ + LCD Touch Screen and 48VDC Redundant Power (400W PoE Budget, ERPS Ring, ONVIF, Cybersecurity features, Hardware Layer3 OSPFv2 and IPv4/IPv6 Static Routing)
