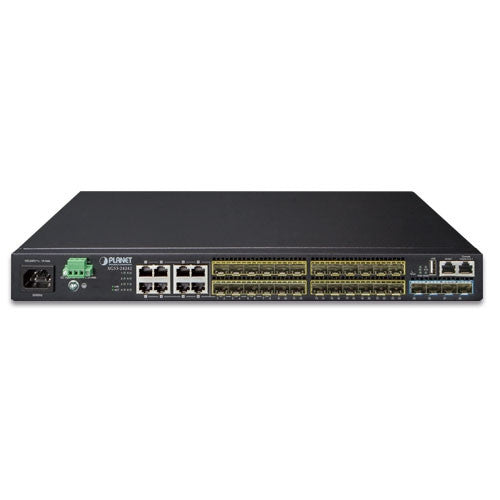

Planet XGS3-24242 Layer 3 24-Port 100/1000X SFP + 16-Port shared TP + 4-Port 10G SFP+ Stackable Managed Switch

Sale price$1,736.00
SKU: XGS3-24242

Usually Ships in 10 - 12 days

Quantity:

Contact

Planet XGS3-24242 Features

Physical Port
24-port 100/1000BASE-X mini-GBIC/SFP slots
16 10/100/1000BASE-T RJ45 copper ports, shared with port-1 to port-16
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX SFP
2 20Gbps Hardware Stacking ports
RJ45 to DB9 console interface for switch basic management and setup
1 RJ45 Ethernet management port for switch basic management and setup
1 USB 2.0 for backup/upload configuration and firmware upgrade

IP Stacking
Connects with stack member via both Gigabit TP/SFP interface and 10G SFP+ slots
Single IP address management, supporting up to 24 units stacked together

Hardware Stacking
Connects with stack member via QSFP+ slots
Supporting up to 6 units stacked together

IP Routing Features
IP routing protocol supports RIPv1/v2, RIPng, OSPFv2/v3, BGP4/4+
Routing interface provides per VLAN routing mode
VRRPv1/v3 protocol for redundant routing deployment
Supports route redistribution

Multicast Routing Features
Supports PIM-DM (Protocol Independent Multicast – Dense Mode) and PIM-SM (Protocol Independent Multicast – Sparse Mode) and PIM-SSM (Protocol Independent Multicast – Source Specific Multicast)
Supports DVMRP (Distance Vector Multicast Routing Protocol)
Supports IGMP v1/v2/v3 and MLD v1/v2

Layer 2 Features
Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z Gigabit Ethernet and IEEE 802.3ae 10Gb/s Ethernet standard
Supports auto-negotiation and half-duplex/full-duplex modes for all 10BASE-T, 100BASE-TX and 1000BASE-T ports
Auto-MDI/MDI-X detection on each RJ45 port
Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back-pressure flow control in half-duplex mode
High performance Store-and-Forward architecture, broadcast storm control, port loopback detect
32K MAC address table, automatic source address learning and aging
Supports VLAN
- IEEE 802.1Q tag-based VLAN
- GVRP for dynamic VLAN management
- Up to 256 VLANs groups, out of 4041 VLAN IDs
- Provider Bridging (VLAN Q-in-Q, IEEE 802.1ad) supported
- Private VLAN Edge (PVE) supported
- GVRP protocol for Management VLAN
- Protocol-based VLAN
- MAC-based VLAN
- IP subnet VLAN
Supports Link Aggregation
- Maximum 128 trunk groups with up to 8 ports per trunk group
- IEEE 802.3ad LACP (Link Aggregation Control Protocol)
- Cisco ether-channel (static trunk)
Supports Spanning Tree Protocol
- IEEE 802.1D Classic Spanning Tree Protocol (STP)
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
- BPDU & root guard
Port mirroring to monitor the incoming or outgoing traffic on a particular port (many to many)
Provides port mirror (many-to-1)

Quality of Service
8 priority queues on all switch ports
Supports strict priority and WRR (Weighted Round Robin) CoS policies
Traffic classification
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR
Strict priority and WRR CoS policies

Multicast
Supports IPv4 IGMP snooping v1, v2 and v3, and IPv6 MLD v1 and v2 snooping
Querier mode supports
Supports Multicast VLAN Register (MVR)

Security
IEEE 802.1x port-based network access authentication
MAC-based network access authentication
Built-in RADIUS client to cooperate with the RADIUS servers for IPv4 and IPv6
TACACS+ login users access authentication
IP-based Access Control List (ACL)
MAC-based Access Control List
Supports DHCP snooping
Supports ARP inspection
IP Source Guard prevents IP spoofing attacks
Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
Supports URPF to avoid IP address clone
IPv6 ND snooping

Management
Management IP for IPv4 and IPv6
Switch Management Interface
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c and v3 switch management
- SSH/SSL secure access
BOOTP and DHCP for IP address assignment
DHCP relay and option 82
Firmware upload/download via TFTP or HTTP Protocol for IPv4 and IPv6
SNTP (Simple Network Time Protocol) for IPv4 and IPv6
User privilege levels control
Syslog server for IPv4 and IPv6
Four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events)
Supports ping, trace route function for IPv4 and IPv6
User Privilege levels control
Link Layer Discovery Protocol (LLDP) and LLDP-MED

Planet XGS3-24242 Overview

IPv6 Routing and 10G Ethernet Switch Solutions for the Next Generation Internet Protocol
PLANET XGS3-24242 Layer 3 Stackable Managed Gigabit Switch supports multi-layer IPv6/IPv4 Gigabit Ethernet Routing, and provides 24 100/1000Mbps SFP slots, 16 shared 10/100/1000Mbps Ethernet ports, 4 extra 1/10G SFP+ uplink slots and 2 20G QSFP+ slots for Hardware stacking to meet the bandwidth requirements and protect network investment for enterprises. The XGS3-24242 is implemented with the following advanced technologies:

 ■ IPv6/IPv4 Routing and Management
 ■ 10G Ethernet Switching
 ■ Single IP Address Management
 ■ Redundant Power System
 ■ QSFP+ slots for Hardware Stacking

Positioned as the distribution or aggregation layer switch for large networks, the XGS3-24242 supports IP Stacking technology that helps to manage and configure up to 24 units via one single IP address easily. It is suitable for campus networks, metropolitan IP networks and other large infrastructures as it offers intelligent security features, high performance and flexibility. The XGS3-24242 can also be an excellent choice as a core layer switch for enterprises, data centers or small- and medium-sized networks.

High Reliability Hardware Stacking
Using QSFP+ port to connect several servers and build a virtually logical facility. The XGS3-24242 gives the enterprises, service providers and telecoms flexible control over port density, uplinks and switch stack performance. The stack redundancy of the XGS3-24242 ensures that data integrity is retained even if one switch in the stack fails. You can even hot-swap switches without disrupting the network, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Supporting 10Gb Ethernet
With 10Gbps uplink, the XGS3-24242 can handle extremely large amounts of data in a secure topology linking to an enterprise backbone or high capacity servers. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently.

High Performance
The XGS3-24242 boasts a high-performance switch architecture that is capable of providing non-blocking switch fabric and wire-speed throughput as high as 208Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands.

Rich Multi-layer and Multicast Networking Protocols
The XGS3-24242 supports various Layer 2 and management networking protocols to meet the requirements of complex network constructions. It is compatible with 802.1D/w/s, 802.1Q, 802.1p, 802.3ad, 802.3x, GVRP, DHCP, SNTP, etc. The XGS3-24242 also supports IPv6/IPv4 routing protocols including Layer 3 IP static routing, RIPv1/v2, RIPng, OSPFv2/v3, and VRRP protocols.Built in with abundant multicast features, the XGS3-24242 supports rich L2 multicast features such as IGMPv1/v2/v3 and MLDv1/v2 snooping, and L3 multicast protocols -- DVMRP, PIM-DM, PIM-SM and PIM-SSM. Offering the rich application experience, the product supports multicast VLAN registration, multicast receive control and illegal multicast source detect functions. The XGS3-24242 solution performs a cost-effective solution for today with the ability to expand as network demands grow.

Full IPv6 Support
The XGS3-24242 provides IPv6 management and enterprise-level secure features such as SSH, ACL, WRR (Weighted Round Robin) and RADIUS authentication. The XGS3-24242 thus helps the enterprises to step in the IPv6 era with the lowest investment. In addition, you don’t need to replace the network facilities when the IPv6 FTTx edge network is built.

Excellent and Secure Traffic Control
The XGS3-24242 is loaded with powerful traffic management and WRR features to enhance services offered by telecoms and enterprises. The WRR functionalities include wire-speed Layer 4 traffic classifiers and bandwidth limitation which are particularly useful for multi-tenant unit, multi-business unit, Telco, or network service applications.

Powerful Security
The ACL policies supported can classify the traffic by source/destination IP addresses, source/destination MAC addresses, IP protocols, TCP/UDP, IP precedence, time ranges and ToS. Moreover, various policies can be conducted to forward the traffic.

The XGS3-24242 also provides IEEE 802.1x port based access authentication, which can be deployed with RADIUS, to ensure the port level security and block illegal users. Thus, the XGS3-24242 empowers ISP and enterprises to take full advantage of the limited network resources and guarantees the best performance in VoIP and video conferencing transmission.

Robust Layer 2 Features
The XGS3-24242 can be programmed for basic switch management functions such as port speed configuration, port aggregation, VLAN, Spanning Tree Protocol, WRR, bandwidth control and IGMP snooping. It also supports 802.1Q tagged VLAN, Q-in-Q, voice VLAN and GVRP Protocol. By supporting port aggregation, the XGS3-24242 allows the operation of a high-speed trunk combined with multiple ports. It enables up to 128 groups for trunking with a maximum of 8 ports for each group.

Efficient Management
For efficient management, the XGS3-24242 Managed Gigabit Switch is equipped with console, Web and SNMP management interfaces. With its built-in Web-based management interface, the XGS3-24242 offers an easy-to-use, platform-independent management and configuration facility. The XGS3-24242 supports standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based management software. For text-based management, the XGS3-24242 can be accessed via Telnet and the console port. Moreover, the XGS3-24242 offers secure remote management by supporting SSH connection which encrypts the packet content at each session.

Flexibility and Extension Solution
The XGS3-24242 provides 24 100/1000Mbps dual speed SFP Fiber ports and four 1/10Gbps SFP+ Fiber ports. Each of the SFP+ slots supports Dual-Speed, 10GBASE-SR/LR or 1000BASE-SX/LX. Therefore, the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) or up to 10/20/30/40/50/70/120 km (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Intelligent SFP/SFP+ Diagnosis Mechanism
The XGS3-24242 supports SFP/SFP+DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP/SFP+, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

AC and DC Redundant Power to Ensure Continuous Operation
The XGS3-24242 is equipped with one 100~240V AC power supply unit and one empty power supply slot for redundant DC power supply – XGS3-PWR150-48 installation, which supports -40 ~ -60V DC power input. With XGS3-PWR150-48 DC power supply implemented, the XGS3-24242 can be applied as the telecom level device. A redundant power system is also provided to enhance the reliability with either AC or DC power supply unit. The redundant power system is specifically designed to handle the demands of high-tech facilities requiring the highest power integrity.
