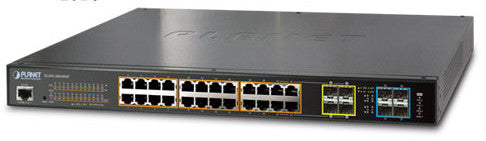

Planet XGSW-28040HP 24 Port Managed Gigabit PoE Network Switch

Planet

Planet XGSW-28040HP 24 Port Managed Gigabit PoE Network Switch

$925.00
Discontinued
SKU: XGSW-28040HP

Usually Ships in 10 - 12 days

Link to Manufacturer's Page

Contact

Planet XGSW-28040HP Features

Hardware Specifications

  • Ethernet Ports: 24 10/100/1000Base-T RJ45 auto-MDI/MDI-X ports, 4 100/1000Base-X SFP interfaces, shared with Port-21 to Port-24 compatible with 100Base-FX SFP transceiver, 4 10GBase-SR/LR SFP+ interface (Port-25 to Port-28) compatible with 1000Base-SX/LX/BX SFP transceiver
  • PoE Ports: 24-Port with 802.3af/802.3at PoE injector function
  • Switch Throughput: 95Mpps@64Bytes
  • Switch Architecture: Store and Forward switch architecture
  • Power Requirement: AC 100~240V, 50/60Hz
  • Power Consumption: 502 watts / 1712.8 BTU max
  • LED Display: System:
    　　　PWR (Green), SYS (Green), Ring (Green), R.O. (Green)
    　　　PWR1 (Green), PWR2 (Green), FAN1 (Green), FAN2 (Green)
    10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
    　　　10/100/1000Mbps LNK/ACT (Green)
    　　　PoE In-Use (Orange)
    100/1000Mbps SFP Combo Interfaces (Port 21 to Port 24):
    　　　1000Mbps (Green), LNK/ACT (Orange)
    1/10Gbps SFP+ Interfaces (Port 25 to Port 28):
    　　　10Gbps LNK/ACT (Green), 1Gbps LNK/ACT (Orange)
  • Dimension (W x D x H): 440 x 300 x 44.5 mm, 1U height
  • Weight: 4887 g (10.77 lbs)
  • Operating Temperature: 0 ~ 50 Degree C with 5 ~ 95%, Relative Humidity, non-condensing

Power over Ethernet Specifications

  • PoE Standard: IEEE 802.3af/802.3at Power over Ethernet / PSE
  • PoE Power Supply Type: End-Span
  • PoE Power Output: Per Port 56V DC, Max. 30.8 watts
  • Power Pin Assignments: 1/2(+), 3/6(-)
  • PoE Power Budget: 440 watts (max.) @ 25 degrees C; 380 watts (max.) @ 50 degrees C
  • Regulation Compliance: FCC Class A, CE
  • Standards Compliance: See datasheet

Planet XGSW-28040HP Overview

The XGSW-28040HP is the latest generation of PLANET Managed Gigabit PoE Switches featuring PLANET intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 Layer 3 static routing and built-in L2/L4 Gigabit Switching engine along with 24 10/100/1000Base-T ports featuring 30-watt 802.3at PoE+, 4 Gigabit SFP fiber slots and 4 10Gbps SFP+ fiber slots. With total power budget up to 440 watts for different kinds of PoE applications, it provides a quick, safe and cost-effective Power over Ethernet network solution to IP security surveillance for small businesses and enterprises.
