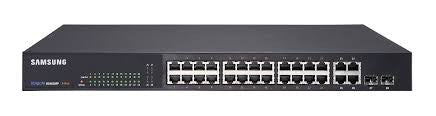

Samsung/Hanwha ieS4028FP 24 Port Poe Managed Switch
Samsung/Hanwha ieS4028FP Features
Ports:
24 10/100 BASE-T ports with PoE
2 10/100/1000 BASE-T ports
2 Gigabit combo ports
1 Console port
Switching Capacities
12.8 Gbps
Forwarding Rate
9.5 Mpps
Dimension
4.3 x 44 x 33 cm
1.7 x 17.3 x 12.992 inch
Power Consumption
225 W (System 45 W, PoE 180W)
Power-over-Ethernet
Maximum output power per port: 15.4 W
Maximum output power per por: 7.5 W simultaneously
Network Interface
10/100 BASE-T ports
10/100/1000 BASE-T ports
SFP Transceiver slots supporting SX, LX and ZX SFP
Multimode fiber cable : 62.5/125 or 50/125 microns
Single mode fiber cable : 9/125 micron
For full specifications please see Datasheet
Samsung/Hanwha ieS4028FP Overview
iES4028FP provides wire speed 10/100 Fast Ethernet PoE/Non-PoE switching with features targeted for voice and high quality video over IP. They provide 4 Gigabit ports as well, showing high price/performance ratio. Their IP clustering feature allows up to 36 switches to be managed in a logical group using a single IP address. Advanced QoS features are provided to minimize latency and give priority for voice and video packets. For PoE use, It supports 15.4W per port (802.3af) and up to 180W total consumption.
