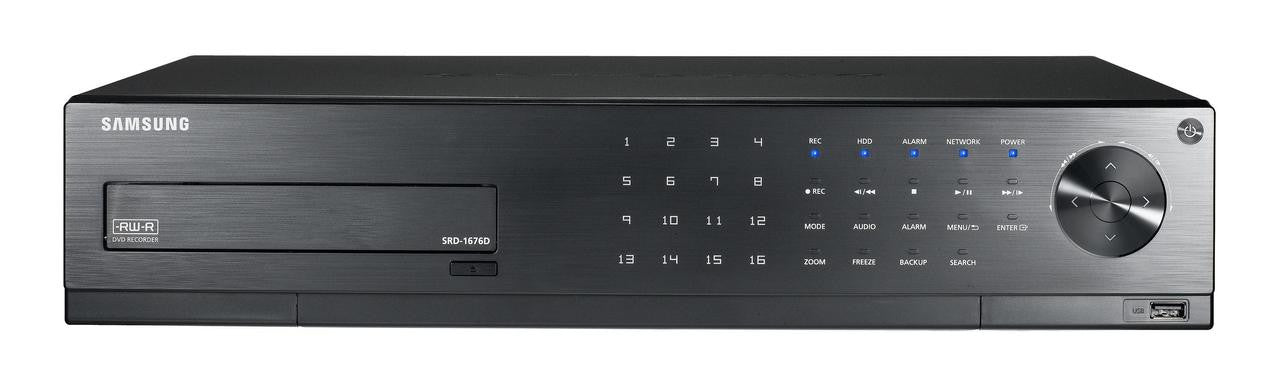

Samsung/Hanwha SRD-1676D Main View
Samsung/Hanwha SRD-1676D 16CH 1280H Real-time Coaxial DVR

Hanwha / Samsung

Samsung/Hanwha SRD-1676D 16CH 1280H Real-time Coaxial DVR

$1,898.00
Discontinued
SKU: SRD-1676D
Link to Manufacturer's Page

Contact

Discontinued; replaced by the SRD-1694.

Samsung/Hanwha SRD-1676D Features

  • Camera Compatibility: Analog HD & 960H Analog Camera
  • Maximum Number of Cameras/Channels: 16CH BNC, 1080p / 720p AHD and analog camera
  • Recording Rate: NTSC : Up to 480fps@1280 x 480 / PAL : Up to 400fps@1280 x 576, NTSC : Up to 480fps@704 x 480 / PAL : Up to 400fps@704 x 576, NTSC : Up to 480fps@704 x 240 / PAL : Up to 400fps@704 x 288, NTSC : Up to 480fps@352 x 240 / PAL : Up to 400fps@352 x 288
  • Compression Styles: H.264
  • Event Notification: Video loss, Motion (Level 1 ~ 10), Alarm, Tampering (Level 1 ~ 3)
  • Recording Mode: NTSC : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1~30 fps), PAL : Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 25fps)
  • Pre-Alarm Recording: Up to 30sec (5, 10, 20, 30sec)
  • Quick Search: Date/Time, Event, Back up, POS, Motion (*All search include preview function)
  • Remote Access: SmartViewer, Webviewer, Mobile viewer, SSM (CMS) iOS & Android
  • Ethernet: 1 RJ-45 10/100/1000 Base-T
  • Hard Drive Bays: Up to 4 SATA HDDs
  • Max TB per HD Bay: 6TB (1TB included in base model)
  • Dimensions: 440.0 x 88.0 x 384.8mm (17.32" x 3.46" x 15.15")
  • Weight: Approx. 6.6Kg (14.61 lb)
  • Operating Temperature: +0°C ~ +40°C (+32°F ~ +104°F)
  • Operating Humidity: 20% ~ 85% RH
  • Power: 100 ~ 240V AC ±10%, 50/60Hz, Auto ranging / Max. 60W (With 1x HDD)

Samsung/Hanwha SRD-1676D Overview

Hanwha's 1000TVL High Resolution Analog Beyond Series, provides exceptional image quality, outstanding backlight compensation and multitude of user friendly functions. The Beyond Series is Hanwha's complete analog solution that comprises of 1280H cameras and Digital Video Recorders.
