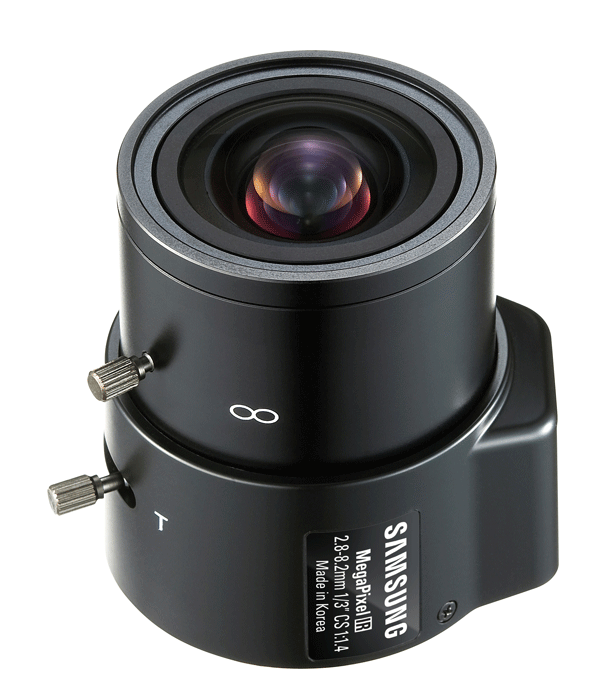

Samsung SLA-M2882 1/3" CS-mount Auto Iris Megapixel Lens

Samsung SLA-M2882 Features

• CCD: 1/3"
• Resolution: 1.3 Megapixel
• Focal Length: 2.8 ~ 8.2mm / 0.11" ~ 0.32"
• Max. Aperture Ratio: 1 : 1.4 ~ 360
• Max. Image Format: 4.8(H) x 3.6(V)
• Angleof View: Diagonal: 116.5° ~ 42.4°, Horizontal: 94.2° ~ 34.1°, Vertical: 71° ~ 25.6°
• Iris Auto: Auto (F1.4 ~ 360)
• Focus: Manual
• Zoom: Manual
• Iris Type: DC
• Effective Lens Aperture: Front Ø26mm / Ø1.02", Rear Ø8.6mm / Ø0.34"
• Back Focal Length: 7.97 ~ 14.12mm / 0.31" ~ 0.56"
• Flange Back Length: 12.5mm / 0.49"
• Mount: CS-mount
• Dimensions:(WxHxD) 43.8 x 48.1 x 52.0mm, (1.72" x 1.89" x 2.05")
• Weight: 100g (0.22 lb

Samsung SLA-M2882DN Overview

The SLA-M2882 CS-mount Varifocal Lens has a focal length of 2.8 - 8.2mm, offers 3x zoom and is designed to be used with 1/3", 1.3Megapixel sensor. The Auto Iris (DC) feature produces consistent video signals and helps the camera to adjust to changing light levels. Focus and zoom of the SLA-M2882 are manually controlled.
