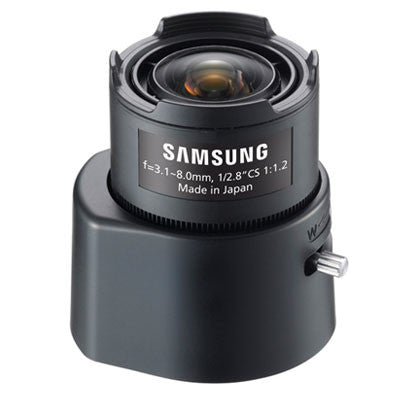

Samsung SLA-M3180DN 1/2.8" CS-mount Auto Iris Megapixel Lens
Samsung SLA-M3180DN 1/2.8" CS-mount Auto Iris Megapixel Lens
Samsung SLA-M3180DN 1/2.8" CS-mount Auto Iris Megapixel Lens
Samsung SLA-M3180DN 1/2.8" CS-mount Auto Iris Megapixel Lens

Hanwha / Samsung

Samsung SLA-M3180DN 1/2.8" CS-mount Auto Iris Megapixel Lens

Sale price$150.80
Discontinued
SKU: SLA-M3180DN

Contact

Discontinued; replaced by the SLA-M3180P.

Samsung SLA-M3180DN Features

  • CCD: 1/2.8"
  • Resolution: 3Megapixel
  • Focal Length: 3.1 ~ 8mm / 0.12" ~ 0.31"
  • Max. Aperture Ratio: 1 : 1.2 ~ 360
  • Max. Image Format: 3.2(H) x 5.8(V)
  • Angleof View: Diagonal: 123.1 to 48.3°, Horizontal: 105.4 to 42.2°, Vertical: 57.9 to 23.8˚
  • Iris Auto: Auto (F1.2 ~ 360)
  • Focus: Manual
  • Zoom: Manual
  • Iris Type: DC
  • Effective Lens Aperture: Front Ø20.9mm / Ø0.82", Rear Ø10.5mm / Ø0.41"
  • Back Focal Length: 7.8mm / 0.31"
  • Flange Back Length: 12.5mm / 0.49"
  • Mount: CS-mount
  • Dimensions: (WxHxD) 43.8 x 48.2 x 55.0mm (1.72" x 1.9" x 2.17")
  • Weight: 59g (0.13 lb)

Samsung SLA-M3180DN Overview

The SLA-M3180DN CS-mount Varifocal Lens has a focal length of 3.1 - 8mm, and is designed to be used with 1/2.8", 3Megapixel sensor. The Auto Iris (DC) feature produces consistent video signals and helps the camera to adjust to changing light levels. Focus and zoom of the SLA-M3180DN are manually controlled.
