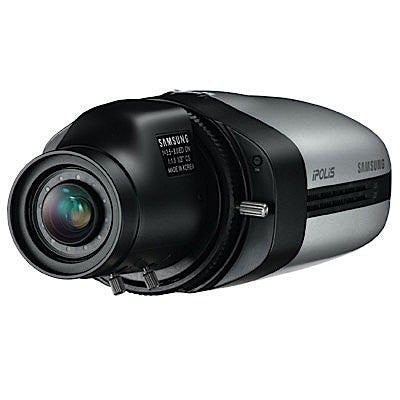

Samsung SNB-1001 VGA Network Camera
Samsung SNB-1001 VGA Network Camera
Samsung SNB-1001 VGA Network Camera
Samsung SNB-1001 VGA Network Camera
Samsung SNB-1001 VGA Network Camera

Hanwha / Samsung

Samsung SNB-1001 VGA Network Camera

Sale price$135.20
Discontinued
SKU: SNB-1001

Discontinued. Replaced by the SNB-3002.

Samsung SNB-1001 VGA Network Camera Features

  • Resolution: VGA 640 x 480 / 320 x 240 / 160 x 120
  • Image Sensor: 1/4" PS CMOS
  • Day/Night: Yes, Auto
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.7Lux (F1.2)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Manual / DC auto iris
  • Focal Length: N/A
  • Zoom: No
  • Iris: Auto
  • Focus: Manual
  • Field of View: N/A
  • Compression Styles: H.264, MJPEG
  • Frame Rate: Max. 30fps at all resolutions
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion Detection, privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Intelligent Video Analytics, Alarm I/O
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Mic/Line in, Line out
  • Alarm/Event Management: Motion Detectin with four programmable zones, Face detection, & 1 each of Alarm I/O
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 10 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Black, Silver / Aluminium, Plastic;
  • Dimensions: 74.3 x 54.5 x 114.4mm (2.93" x 2.15" x 4.50") excluding projections
  • Weight: 190g (0.42 lb)
  • Operating Temperature: -10°C ~+50°C (+14°F ~ +122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC / PoE (IEEE802.3af) Max. 5W
  • Warranty: 3 Years
Samsung SNB-1001 VGA Network Camera Overview

The SNB-1001 is a network VGA Box Camera featuring Samsung's WiseNetS DSP. The WiseNetS chip is a new component designed and manufactured by Samsung, featuring Facial Detection, Motion Detection, Samsung Super Dynamic Range, 2D + 3D Samsung Digital Noise Reduction (SSNRIII), Polygonal Privacy Masking, and many more features. This camera has separate analog output for easy set or hybrid use as an analog camera. The 1/4" Progressive Scan CMOS delivers a clear image and the camera is capable of multiple streaming over H.264 & MJPEG Dual Codec. The camera may be powered by 12 volt DC or Power over Ethernet and an SD Card Slot is included for those looking for edge storage. This camera is ideal for situations which require a light bandwidth, high quality image such as , small business and retail. Samsung’s WiseNetS VGA camera product line also includes vari-focal (SND-1080) and fixed-lens domes (SND-1011).
