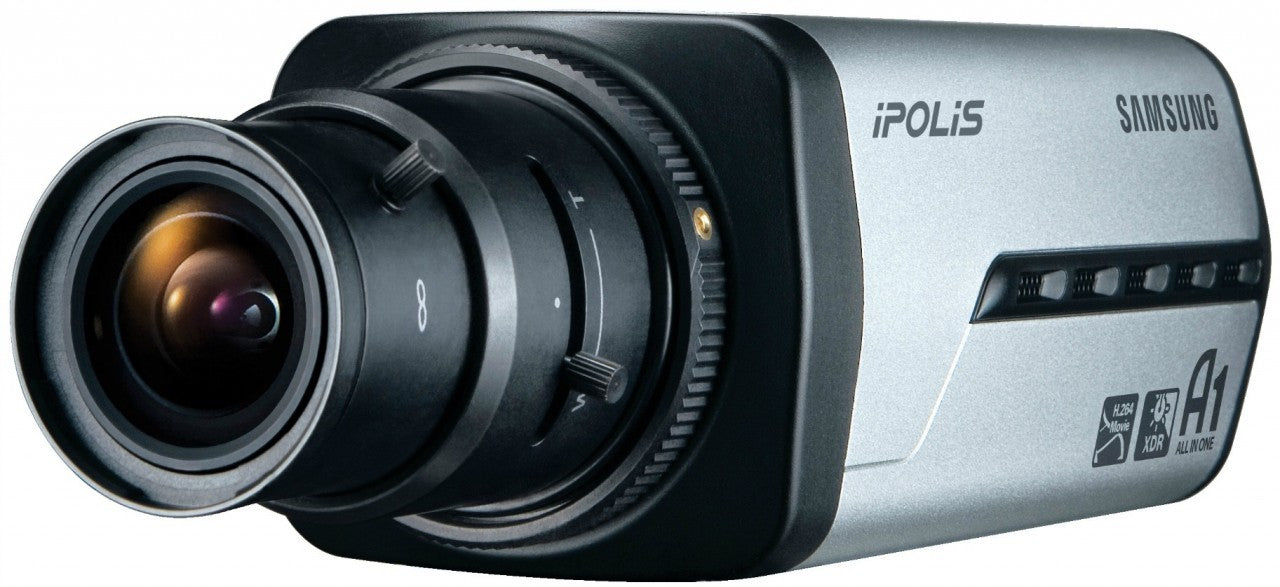

Samsung SNB-2000 4CIF Network Camera
Samsung SNB-2000 4CIF Network Camera

Hanwha / Samsung

Samsung SNB-2000 4CIF Network Camera

$447.20
Discontinued
SKU: SNB-2000
Link to Manufacturer's Page

Contact

Discontinued

Samsung SNB-2000 Features

  • Resolution: 704 x 480, 640 x 480, 352 x 240
  • Image Sensor: 1/3" Super HAD PS CCD
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x) B/W : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Manual
  • Focal Length: N/A
  • Zoom: Digital Zoom 16x
  • Iris: DC auto iris
  • Focus: N/A
  • Field of View: N/A
  • Compression Styles: H.264, MPEG-4, MJPEG
  • Frame Rate: 30fps
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Digital Zoom, Flip/Mirror, Profile, Intelligent Video Analytics, PIP, Alarm I/O
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, User access log
  • Users: 10 users at unicast mode
  • On-board Storage: Yes SD/SDHC memory slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39")
  • Weight: 300g (0.66 Ib)
  • Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af); Max. 8W
  • Warranty: 3 Years
  • Notes: Lens not included

Samsung SNB-2000 Overview

The SNB-2000 is an ONVIF compliant VGA box camera that offers multiple codecs, H.264, MPEG 4, and MJPEG. Because it uses electronic day & night control it is lower in cost. The SNB-2000 provides dual streaming and is capable of displaying multiple resolutions from CIF (320 x 240) through to 4CIF (704 x 480) at 30 fps in all resolution modes. It features a minimum illumination specification of 0.4 Lux color, frame integration, Hybrid (analog) video output, a local SD memory card slot, and is powered via either PoE or 24 VAC.
