SNB-5004 with separate SLA-M3180DN lens

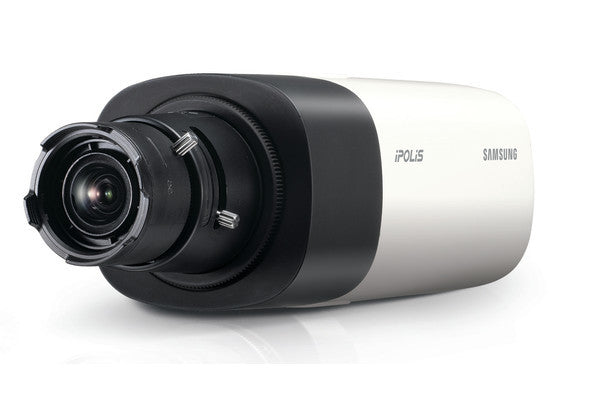

Samsung SNB-5004 1.3MP 720p HD Network Camera

Hanwha / Samsung

Samsung SNB-5004 1.3MP 720p HD Network Camera

$400.40
Discontinued
SKU: SNB-5004
Link to Manufacturer's Page

Contact

Samsung SNB-5004 Features

  • Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
  • Image Sensor: 1/3" 1.3M PS CMOS
  • Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE), B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Manual / DC auto iris, P-Iris
  • Focal Length: Dependent on Lens Type
  • Focus: Simple focus / Manual, Remote control via network, Button control (Manual, Simple Focus, Day&Night)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 640 x 480, 320 x 240 : Max. 30fps
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
  • intelligent Video analytics: Tampering, Virtual line, Enter/Exit, Appear/Disappear, Audio detection, Face detection
  • Privacy Mask: Yes, Off / On (32 Zones with 4 points of polygonal)
  • Built-in Microphone: No
  • Audio Capabilities: Selectable (Mic in / Line in), Max output level : 1 Vrms Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm, Line out (3.5mm stereo mini jack)
  • Alarm/Event Management: Motion detection, Tempering, Audio detection, Face detection, Video analytics, Network disconnection; File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers),
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC/SDXC
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
  • Weight: 395g (0.87 lb)
  • Operating Temperature: -10°C~+55°C (+14°F~+131°F)
  • Operating Humidity: Less than 90% RH
  • Power: 24V AC, 12V DC, PoE (IEEE802.3af class3); Max. 12.5W (24V AC), Max. 10.5W (12V DC), Max. 12.0W (PoE, Class3)
  • Warranty: 3 Year
  • Notes: Lens not included, Samsung SLA-M3180DN
Samsung SNB-5004 Overview

The SNB-5004 is a camera from Samsung Techwin WiseNetIII network ranges which feature the most advanced functions from Samsung with 1.3 megapixel 720p of high definition images. Its high functionalities includes 130dB WDR, low light performance down to 0.05 lux (F1.2, 50IRE, color) creating clear images under low light conditions, and P-iris support which result in images with better contrast, clarity, resolution and depth of field. With enhanced features and new technologies which combat the challenges of though environmental conditions, the SNB-5004 will meet the market need which requires professional security.
