Samsung SNB-6011 Head & Main Unit
Samsung SNB-6011-15 2MP Remote Head Network Camera

Hanwha / Samsung

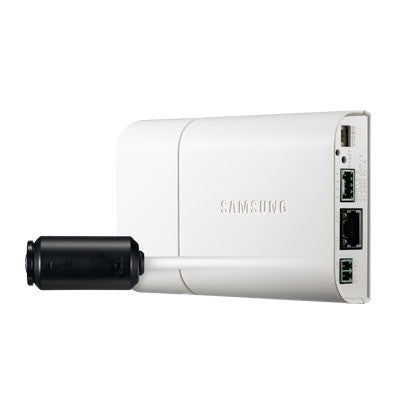

Samsung SNB-6011-15 2MP Remote Head Network Camera

$416.00
Discontinued
SKU: SNB-6011-15
Link to Manufacturer's Page

Contact

Discontinued; replaced by the SNB-6011B-15.

Samsung SNB-6011-15 Features

  • Comes with an 1.5m cable length; also available with a 8m cable length as the SNB-6011.
  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" 2.38M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.3Lux (1/30sec, F2.0, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Pinhole
  • Focal Length: 2.5mm / F2.0
  • Zoom: No
  • Iris: N/A
  • Focus: Simple focus
  • Field of View: H : 134.3° / V : 70.9°
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264: Max. 30fps at all resolutions; MJPEG: 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, Max. 15fps; 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 Max.30fps
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement (SSDR Samsung Super Dynamic Range), Digital Noise Reduction (SSNRIII 2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, 4 zones with 4-sided polygon
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: Multicast / 15 users at unicast mode
  • On-board Storage: SD/SDHC/SDXC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Head: Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Body: 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1") (Please see datasheet)
  • Weight: Head: 20g (0.04 lb), Unit: 285g (0.63 lb)
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: PoE (IEEE802.3af), 12V DC / PoE: Max. 7.5W, 12V DC: Max. 6.5W
  • Warranty: 3 Years
Samsung SNB-6011-15 Overview
Samsung’s leading technology, WiseNetIII, is not only performance driven but a cost effective solution. The unique DSP chipset technology within the WiseNetIII line is developed by Samsung and has unrivaled features found nowhere else in the security industry. The SNB-6011 is perfect for covert locations as well as installations where space is limited. The camera head is separated from the main unit allowing installation in unique locations such as bank tellers, ATMs, height strip, or data center racks. The microSDXC memory card slot is located in the main unit away from the camera head further preventing theft of the recording medium. A 2.4mm pinhole lens provides a 134° horizontal viewing angle. High end functions include 120dB WDR, 30 fps @ FullHD 1080p, intelligent video analytics.
