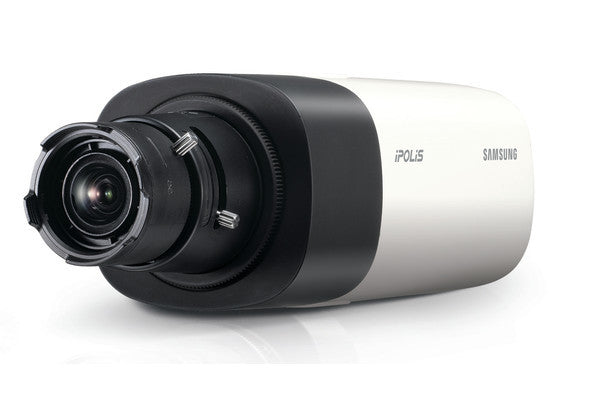

Samsung SNB-7004 with separate SLA-M3180DN lens
Samsung SNB-7004 3MP Box Network Camera

Hanwha / Samsung

Samsung SNB-7004 3MP Box Network Camera

$468.00
Discontinued
SKU: SNB-7004
Link to Manufacturer's Page

Contact

Samsung SNB-7004 Features

  • Max Resolution: 2048 x 1536
  • Image Sensor: 1/2.8" 3.2M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE) B/W : 0.01Lux (F1.2, 50IRE), 0.006Lux (F1.2, 30IRE), 0.00017Lux (2sec, F1.2, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Manual / DC auto iris, P-iris
  • Focal Length: Dependent on Lens Type
  • Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus, Day & Night)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps@2048 x 1536, 1600 x 1200, Max 60fps@the other resolutions MJPEG : Max. 10fps@2048 x 1536 Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
  • Privacy Mask: Yes, Off / On (32 Zones with 4 points of polygonal)
  • Built-in Microphone: No
  • Audio Capabilities: Supports two-way audio with selectable (Mic in / Line in / Built-in mic) audio in & audio line out (3.5mm mono jack)
  • Alarm/Event Management: Motion detection, Tampering, Audio detection, Face detection, Network disconnection, Video analytics, Alarm input, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event, External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, microSD/SDHC/SDXC
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
  • Weight: 430g (0.95 lb)
  • Operating Temperature: -10°C~+55°C (+14°F~+131°F)
  • Operating Humidity: Less than 90% RH
  • Power: 24V AC, 12V DC, PoE (IEEE802.3af class3); Max. 11.1W (12V DC), Max. 12.6W (PoE), Max. 13.1W (24V AC, 50 ~ 60Hz)
  • Warranty: 3 Year
  • Notes: Lens not included, Samsung SLA-M3180DN or SLA-M2890DN
Samsung SNB-7004 Overview

The SNB-7004 camera features the most advanced WiseNetIII functions from Samsung with 3 megapixel 1080p of high definition images. Its high functionalities includes 120dB Wide Dynamic Range which delivers 30fps at 3 megapixel 1080p, low light performance down to 0.1 lux (F1.2, 50IRE, color) creating clear images under low light conditions.
