Samsung SNB-H-6010
Samsung SNB-H-6010 2MP Remote Head Network Camera with Height Marker

Hanwha / Samsung

Samsung SNB-H-6010 2MP Remote Head Network Camera with Height Marker

$431.60
Discontinued
SKU: SNB-H-6010
Link to Manufacturer's Page

Contact

Samsung SNB-H-6010 Features

  • Max Resolution: 1920 x 1080
  • Image Sensor: 1/2.8" 2.38M CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.5Lux (1/30sec, F2.5, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Pinhole
  • Focal Length: 4.6mm / F2.5
  • Zoom: No
  • Iris: N/A
  • Focus: Simple focus
  • Field of View: H : 71° / V : 38°
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps at all resolutions; MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max.30fps
  • WDR Technology: Yes, 120dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement (SSDR Samsung Super Dynamic Range), Digital Noise Reduction (SSNRIII 2D+3D noise filter), Motion Detection, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, 4 zones with 4-sided polygon
  • Built-in Microphone: No
  • Audio Capabilities: None
  • Alarm/Event Management: Motion detection, Tampering detection, Alarm input, Video anaytics, Network disconnection, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 10 users at unicast mode
  • On-board Storage: Yes, micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: None
  • Dimensions: Head : Ø24.0 x 42.4mm (Ø0.94" x 1.67"), Body : 76.0 x 121.1 x 28.0 (2.99" x 4.77" x 1.1") (Please see datasheet)
  • Weight: Head : 20g (0.04 lb), Unit : 285g (0.63 lb)
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: PoE (IEEE802.3af), 12V DC / PoE : Max. 7.5W, 12V DC : Max. 6.5W
  • Warranty: 3 Years
  • Please Note: Comes with 8M cable length. 1.5M cable length is available in the SNB-6010B.
Samsung SNB-H-6010 Overview

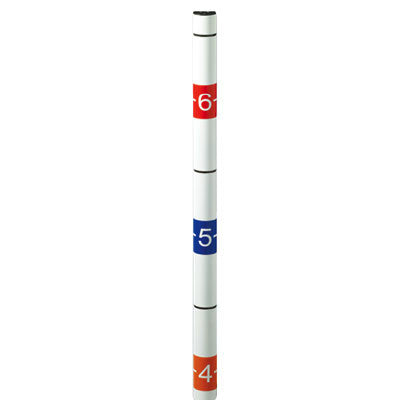

Samsung’s Height Marker with 2MP Full HD Network Remote Head Camera is designed for easy installation, fits most standard door frames, highly visible color coded height levels, curved surface w/180º HFOV camera adjustment. A 4.6mm pinhole lens provides a 71° horizontal viewing angle. High end functions include 120dB WDR, 30 fps @ FullHD 1080p, intelligent video analytics, and alarm I/O. Power is provided by 12v DC or PoE.
