Hanwha / Samsung

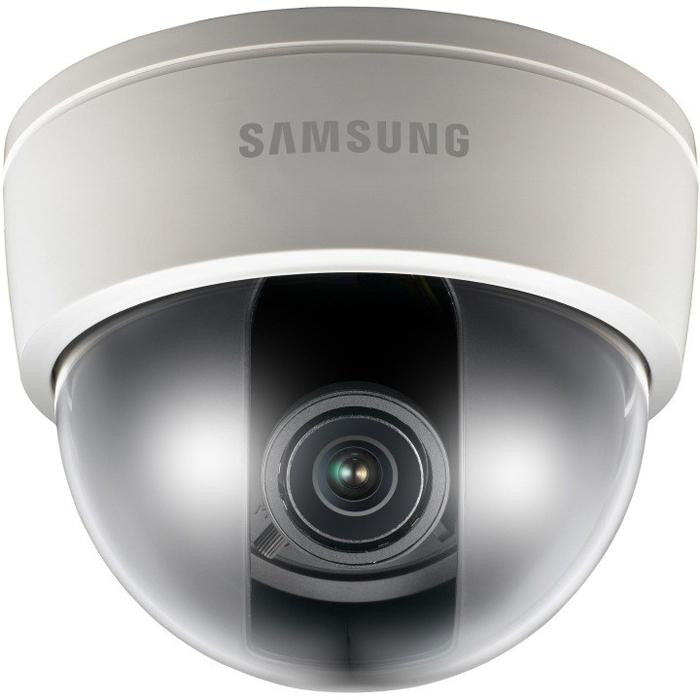

Samsung SND-1080 VGA Dome Network Camera
Discontinued; replaced by the SND-3082.
Samsung SND-1080 VGA Dome Network Camera Features
- Resolution: 4 : 3 Mode - 640 x 480 / 320 x 240 / 160 x 120
- Image Sensor: 1/4" Progressive CMOS F1.2
- Day/Night: Yes, Auto
- Mechanical IR Cut Filter: Yes
- Minimum Illumination: 0.7Lux (F1.2)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Varifocal
- Focal Length: 2.2 ~ 7.7mm
- Zoom: No
- Iris: Auto
- Focus: Auto
- Field of View: H : 94°(Wide) ~ 26.5°(Tele), V : 70°(Wide) ~ 20°(Tele)
- Compression Styles: H.264, MJPEG
- Frame Rate: Max. 30fps at all resolutions
- Image Settings: Privacy Masking, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror
- Privacy Mask: Yes
- Built-in Microphone: No
- Audio Capabilities: Two-Way Audio through built in Audio I/O Jack
- Alarm/Event Management: Motion Detection,
- ONVIF: Yes
- Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
- Users: Up to 10 profiles
- On-board Storage: Yes, Micro SD/SDHC memory card slot
- Indoor/Outdoor: Outdoor
- Housing/Enclosure Rating: Ivory / Aluminum; IP66 Grade (Waterproof)
- Dimensions: Ø115.8 x 92.7mm (Ø4.56" x 3.65")
- Weight: 380g (0.84lb)
- Operating Temperature: -10°C ~+50°C (+14°F ~ +122°F)
- Operating Humidity: 20% ~ 80% RH
- Power: 12V DC / PoE (IEEE802.3af); Max. 5.9W (12V DC), Max. 6.2W (PoE)
- Warranty: 3 Years
The SND-1080 is a network VGA Vari-focal (2.3mm ~ 7.9mm) Dome Camera featuring Samsung's WiseNetS DSP. The WiseNetS chip is a new component designed and manufactured by Samsung, featuring Facial Detection, Motion Detection, Samsung Super Dynamic Range, 2D + 3D Samsung Digital Noise Reduction (SSNRIII), Polygonal Privacy Masking, and many more features. This camera has separate analog output for easy set or hybrid use as an analog camera. The 1/4" Progressive Scan CMOS delivers a clear image and the camera is capable of multiple streaming over H.264 & MJPEG Dual Codec. The camera may be powered by 12 volt DC or Power over Ethernet and an SD Card Slot is included for those looking for edge storage. This camera is ideal for situations which require a light bandwidth, high quality image such as , small business and retail. Samsung’s WiseNetS VGA camera product line also includes a box camera (SND-1001) and fixed-lens dome (SND-1011).
