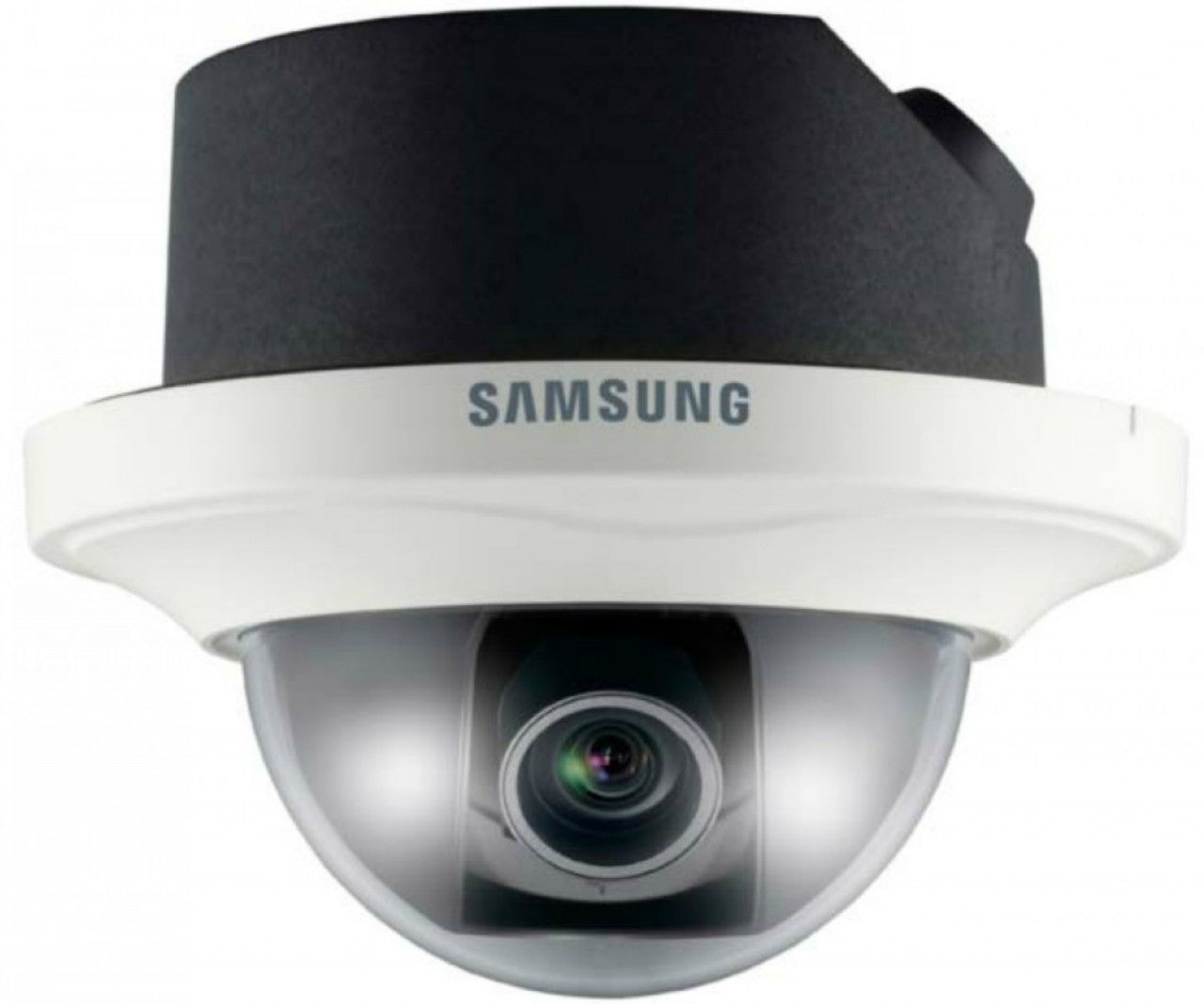

Samsung SND-3080CF 4CIF People Counting Network Dome Camera

Discontinued

Samsung SND-3080CF Features

• Resolution: 704 x 480, 640 x 480, 352 x 240
• Image Sensor: 1/3" Super HAD PS CCD
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x); B/W : 0.4Lux (F1.2, 50IRE), 0.001Lux (Sens-up 512x)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 2.8 ~ 11mm (3.9x)
• Zoom: 16x
• Iris: DC auto iris
• Focus: N/A
• Field of View: H : 94.6°(Wide) ~ 28.8°(Tele), V : 68.4°(Wide) ~ 21.6°(Tele)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: 30(25)fps at 4CIF resolution
• Image Settings: On Screen Display, Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Motion Detection, Privacy Masing, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Digital Zoom, Flip/Mirror, Profile, Intelligent Video Analytics, PIP, Alarm I/O
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output,
• ONVIF: Yes
• Security: HTTPS (SSL) login authentication, Digest login authentication, User access log
• Users: 10
• On-board Storage: Yes, SD/SDHC Card Slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Ø160 x 125mm (Ø6.3" x 4.92") (Flush mounting type)
• Weight: 650g (1.43 lb)
• Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)
• Operating Humidity: 20% ~ 80% RH
• Power: 12V DC, 24V AC, PoE (IEEE802.3af) Max. 7W
• Warranty: 3 Years
• Notes: Also available as a hard-ceiling mount type (SND-3080C)

Samsung SND-3080CF Overview

The SND-3080CF is an ONVIF compliant VGA dome camera that offers multiple codecs, H.264, MPEG 4, and MJPEG. It is capable of displaying multiple resolutions from CIF (320 x 240) through 4CIF (704 x 480) and provides video analytics (The C version provides a special object counting function). It features a 3.9x (2.8-11mm) varifocal auto iris lens, a minimum illumination specification of 0.4 Lux color, Wide Dynamic Range (WDR), frame integration, Hybrid (analog) video output, a local SD memory card slot, video analytics, and is powered via either PoE or 24 VAC. Maximum frame rate is 30 fps at all resolutions.
