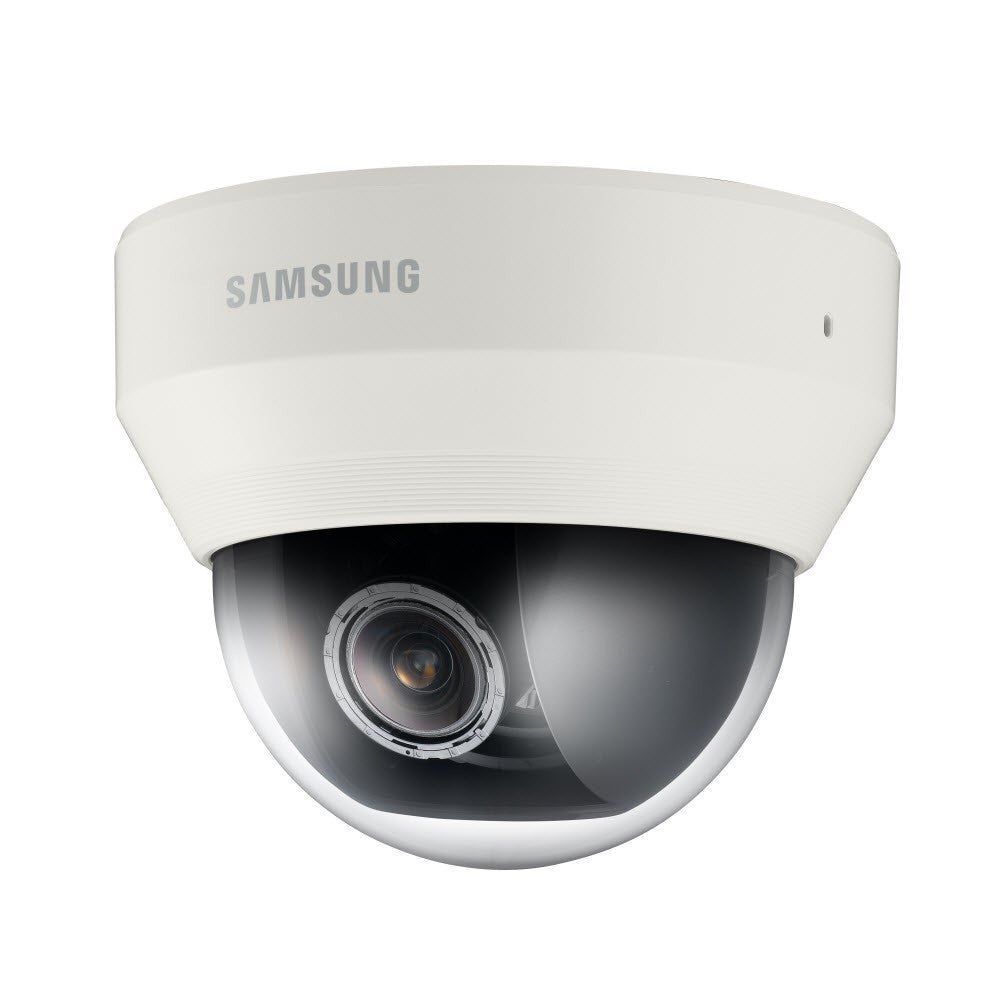

Samsung SND-5084 1.3MP 720P HD Dome Network Camera

Samsung SND-5084 Features

• Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
• Image Sensor: 1/3" 1.3M PS CMOS
• Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE), B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: motorized varifocal
• Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal
• Iris: DC auto iris
• Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
• Field of View: H : 93.3°(Wide) ~ 33.2°(Tele) / V : 73.7°(Wide) ~ 26.6°(Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps, 800 x 600, 640 x 480, 320 x 240 : Max. 30fps
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Intelligent Video Analytics: Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection
• Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
• Built-in Microphone: No
• Audio Capabilities: Selectable (Mic in / Line in), Max output level : 1 Vrms, Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm, Line out (3.5mm stereo mini jack)
• Alarm/Event Management: Motion detection, Tempering, Audio detection, Face detection,Video analytics, Network disconnection, Alarm input: File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
• Users: 15 users at unicast mode
• On-board Storage: Yes, Micro SD/SDHC/SDXC
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: N/A
• Dimensions: Ø132.1 x 107.6mm (Ø5.2" x 4.24")
• Weight: 525g (1.16 lb)
• Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power: 12V DC, PoE (IEEE802.3af; Max. 9.0W (12V DC), Max. 11.0W (PoE, Class3)
• Warranty: 3 Years

Samsung SND-5084 Overview

The SND-5084 is a camera from Samsung Techwin WiseNetIII network ranges, which feature the most advanced functions from Samsung with 1.3 megapixel 720p high definition images. It’s high level of functionalities includes 130dB WDR, low light performance down to 0.05 lux (F1.2, 50IRE, color) creating clear images in low light conditions, and built-in motorized varifocal lens which result in easy focus control. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SND- 5084 will meet the professional security needs of the market.
