Samsung SND-7084R
Samsung SND-7084R
Samsung SND-7084R dimensions

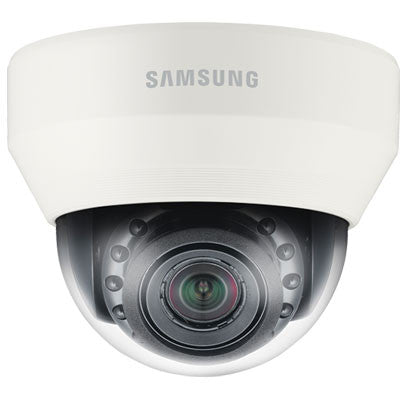

Samsung SND-7084R 3 MP Full HD IR Indoor Network Camera

Hanwha / Samsung

Samsung SND-7084R 3 MP Full HD IR Indoor Network Camera

Sale price$592.80
SKU: SND-7084R


Replaced by the XND-8080RV.

Samsung SND-7084R Features

  • Max Resolution: 2048 x 1536
  • Image Sensor: 1/2.8" PS Exmor 3.2M Progressive CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.06Lux (F1.2, 30IRE); B/W : 0Lux (F1.2, 50IRE), 0Lux (F1.2, 30IRE)
  • IR Illuminators: Yes
  • IR Illuminator Range: 25m (82.02ft)
  • Lens Type: motorized varifocal
  • Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal, F1.2
  • Iris: DC auto iris, P-Iris / Board-in type
  • Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
  • Field of View: H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps@2048 x 1536, Max 60fps@ the other resolutions; MJPEG : Max. 10fps@2048 x 1536, Max. 15fps@1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
  • WDR Technology: Yes, 120 dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
  • Built-in Microphone: No
  • Audio Capabilities: Selectable (Mic in / Line in / Built in mic), Line out (3.5mm mono jack)
  • Alarm/Event Management: Motion detection, Tampering, Audio detection, Face detection, Network disconnection, Video analytics, Alarm input, File upload via FTP and E-mail, Notification via E-mail, Local storage (SD/SDHC/SDXC) or NAS recording at event, External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, microSD/SDHC/SDXC
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: Ø132.1 x 107.6mm (Ø5.2" x 4.24")
  • Weight: 575g (1.16 lb)
  • Operating Temperature: -10°C ~ +55°C (+14°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Comsumption: 12V DC, PoE (IEEE802.3af class 3) / Max. 10.0W (12V DC), Max. 11.0W (PoE)
  • Warranty: 3 Years

Samsung SND-7084R Overview

The SND-7084R features the most advanced WiseNetIII functions from Samsung with 3 megapixel 1080p high definition images. Its high level of functionalities includes 120dB Wide Dynamic Range which delivers 30fps at 3 megapixel 1080p, built-in IR LEDs creating clear images even in the darkness of 0 lux, and motorized varifocal lens which result in easy focus control. With enhanced features and new technologies to combat the challenges of tough environmental conditions, the SND-7084R will meet the professional security needs of the market.
