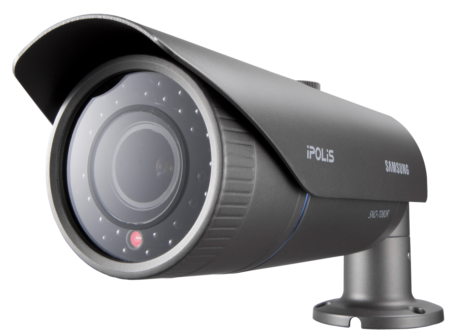

Samsung SNO-1080R VGA Weatherproof Network IR Camera
Samsung SNO-1080R VGA Weatherproof Network IR Camera
Samsung SNO-1080R VGA Weatherproof Network IR Camera
Samsung SNO-1080R VGA Weatherproof Network IR Camera

Hanwha / Samsung

Samsung SNO-1080R VGA Weatherproof Network IR Camera

Sale price$384.80
SKU: SNO-1080R

Discontinued, replaced by the SNO-5084R and the SNO-6011R.

Samsung SNO-1080R Features

  • Resolution: 4 : 3 Mode - 640 x 480 / 320 x 240 / 160 x 120
  • Image Sensor: 1/4" PS CMOS
  • Day/Night: Yes, Auto
  • Mechanical IR Cut Filter: Yes,
  • Minimum Illumination: 0.7Lux (F1.2)
  • IR Illuminators: YES, 15 IR LED's
  • IR Illuminator Range: 15 Meters
  • Lens Type: varifocal lens
  • Focal Length: 2.3 ~ 7.9mm
  • Zoom: No
  • Iris: Auto
  • Focus: Auto
  • Field of View: H : 94°(Wide) ~ 26.5°(Tele), V : 70°(Wide) ~ 20°( Tele)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: Max 30fps at all resolutions
  • Image Settings: Privacy Masking, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Wide Dynamic Range, SSDR (Samsung Super Dynamic Range)
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection(4 programmable zones), Face detection, 1 D/I & 1 D/O for external sensor/alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 5 users at unicast mode
  • On-board Storage: No
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Dark gray / ALDC; IP66 Grade (Waterproof)
  • Dimensions: Ø 77.0 x 216.0mm ( Ø3.03" x 8.5") (Bracket angle 90°), 284.0mm (11.18") (Bracket angle 180°)
  • Weight: 1Kg ( 2.2 lb)
  • Operating Temperature: -10°C ~+50°C (+14°F ~ +122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af) Max. 11W
  • Warranty: 3 Years
Samsung SNO-1080R VGA Weatherproof Network IR Camera Overview

The SNO-1080R is a discreet general purpose VGA weatherproof IR camera suitable for a wide range of outdoor applications which require 24/7 monitoring. With the Samsung Techwin WiseNetS DSP chipset at its core, which delivers a host of advanced features including face detection analytics, third generation Samsung Super Noise Reduction (SSNRIII) to eliminate image noise in low light conditions, and Samsung Super Dynamic Range (SSDR): it has an analogue video output port enabling conventional analogue control device to make set-up on site easy. Rated to IP66 with integrated sunshield and supplied with a mounting bracket that allows the camera to be installed either wall, surface or ceiling mount to ensure the required field of view can be obtained every time.
