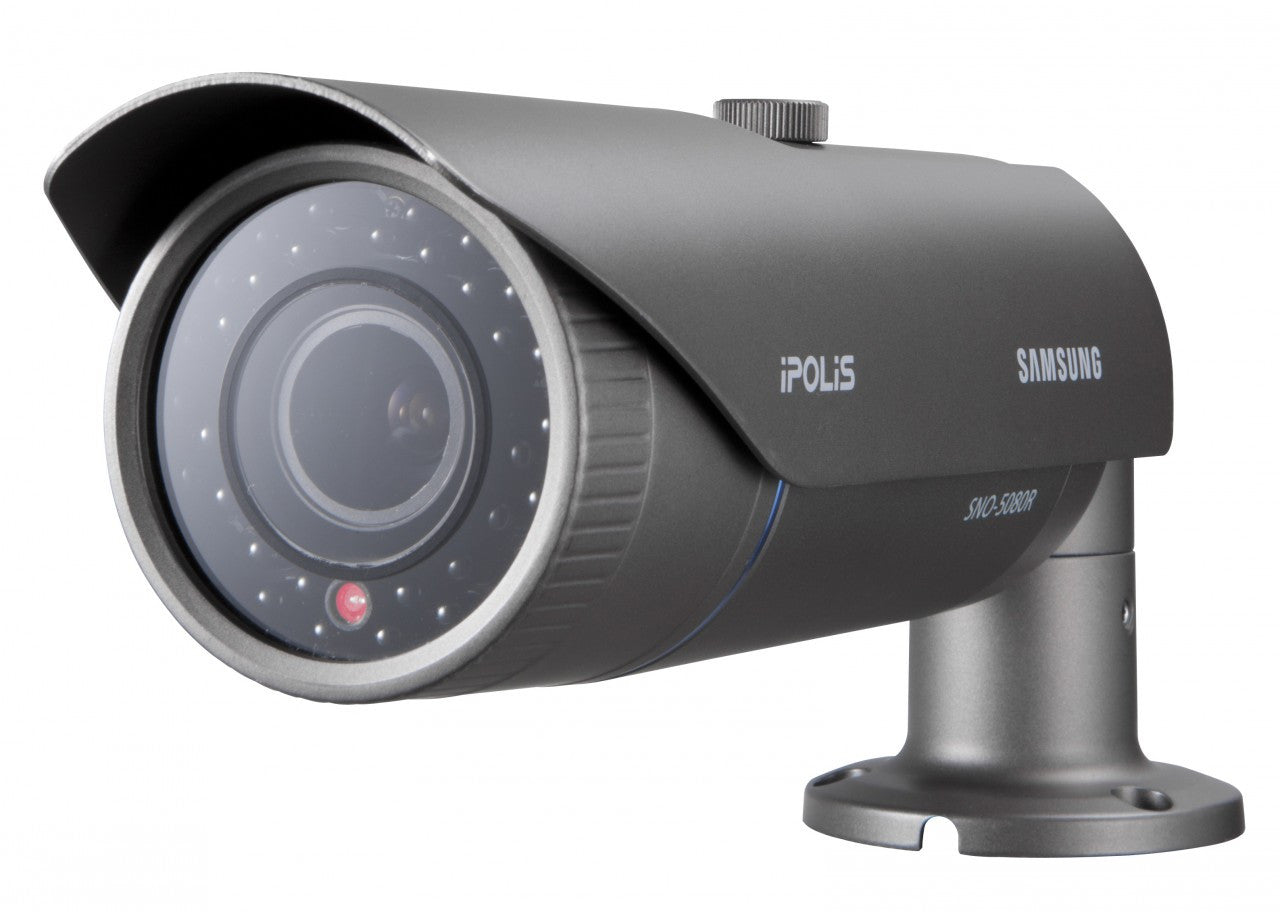

Samsung SNO-5080R 1.3 Megapixel HD Weatherproof Network IR Camera

Discontinued

Samsung SNO-5080R Features

• Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
• Image Sensor: 1/3" 1.3M PS CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x), B/W : 0Lux (F1.2, 50IRE, IR LED on)
• IR Illuminators: Yes, 31
• IR Illuminator Range: 100ft
• Lens Type: F 1.2 DC Auto Iris
• Focal Length: 2.8 ~ 10mm (3.6x) Vari-focal
• Zoom: N/A
• Iris: Auto
• Focus: Manual
• Field of View: H : 94.6°(Wide) ~ 28.8°(Tele), V : 68.4°(Wide) ~ 21.6°(Tele)
• Compression Styles: H.264, MPEG-4 & MJPEG
• Frame Rate: 22fps (1280 x 1024), 30fps (720P HD)
• Image Settings: Backlight compensation,, contrast enhancement, digital nosie reduction, motion detection, privacy masking, sens-up, gain control, white balance, electronic shutter speed, flip/mirror, intelligent video analytics, alarm I/O
• Privacy Mask: Yes
• Built-In Microphone: No
• Audio Capabilities: N/A
• Alarm/Event Management: Triple-window video motion detection, 1 D/I & 1 D/O for external sensor and alarm, Event notification using HTTP, SMTP, FTP, Local recording of MP4 files, Tamper Detection
• ONVIF: Yes
• Security: Multi-level user access with password protection, IP address filtering, HTTPS encrypted data transmission, 802.1X port-based, authentication for network protection
• Users: 10 clients on-line monitoring at the same time
• On-board Storage: No
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Grade (Waterproof)
• Dimensions: 86.0 x 86.1 x 332.8mm (3.39" x 3.39" x 13.1")
• Weight: 1.3Kg (2.87 lb)
• Operating Temperature: -10°C ~ +50°C (+14°F ~ +122°F)
• Operating Humidity: Up to 80% RH
• Power: 12V DC, 24V AC, PoE (IEEE802.3af), Max. 11W
• Warranty: 3 Years

Samsung SNO-5080R Overview

The SNO-5080R is a high performance 1.3 megapixel IP camera capable of displaying multiple resolutions from CIF (320 x 240) through 16:9 format 720p High Definition, to full 1.3 megapixel (1280 x 1024). It comes complete with high performance IR LEDs that allow it to illuminate objects up to 100 ft. away. It also includes a multi-stream H.264/ MPEG-4/ MJPEG codec. This camera features a 3.6x (2.8-10mm) varifocal auto iris lens, a minimum illumination specification of 0.3 Lux color(without the LEDs), True Day / Night operation with ICR, Hybrid (analog) video output, and is powered via either PoE or 24 VAC. Maximum frame rate is 22 fps @ 1280 x 1024; 30fps @ 720P. In addition, it is IP66-rated for indoor or outdoor applications and supplied with a mounting bracket for wall, surface or ceiling mount installation.
