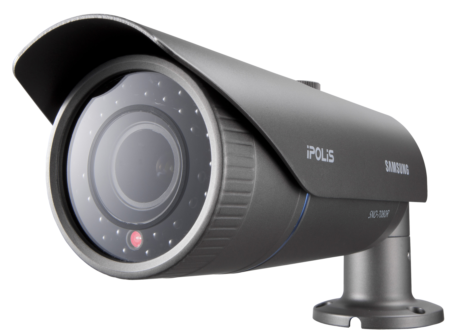

Samsung SNO-7080R 3 Megapixel Full HD Weatherproof Network IR Camera
Samsung SNO-7080R 3 Megapixel Full HD Weatherproof Network IR Camera

Hanwha / Samsung

Samsung SNO-7080R 3 Megapixel Full HD Weatherproof Network IR Camera

$780.00
Discontinued
SKU: SNO-7080R
Link to Manufacturer's Page

Contact

Discontinued

Samsung SNO-7080R Features

  • Resolution in 3mp mode: 2048 x 1536, 1920 x 1080P (Full HD), 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
  • Resolution in 2mp mode: 1920 x 1080P (Full HD), 1280 x 1024, 1280 x 960, 1280 x 720P (HD), 1024 x 768, 800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
  • Image Sensor: 1/2.8" 3M PS CMOS
  • Day/Night: Yes, Auto
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x); B/W : 0Lux (F1.2, 50IRE, IR LED on)
  • IR Illuminators: Yes, 32ea
  • IR Illuminator Range: 30 meters
  • Lens Type: Motorized varifocal lens
  • Focal Length: 3 ~ 8.5mm
  • Zoom: No
  • Iris: Auto
  • Focus: Auto
  • Field of View: H : 100°(Wide) ~ 35.3°(Tele), V : 74.6°(Wide) ~ 26°(Tele)
  • Compression Styles: H.264, MJPEG
  • Frame Rate in 3mp mode: H.264 : Max. 20fps at all resolutions, MJPEG : 800 x 600 ~ 320 x 180 - 20fps, 1280 x 1024 ~1920 x 1080 - 15fps, 2048 x 1536 - 10fps
  • Frame Rate in 2mp mode: H.264 : Max 30fps at all resolutions (When WDR on, Max. framerate is Max. 15fps.), MJPEG : 800 x 600 ~ 320 x 180 - 30fps, 1280 x 1024 ~ 1920 x 1080 - 15fps
  • Image Settings: Privacy Masking, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Wide Dynamic Range, Backlight Compensation, SSDR (Samsung Super Dynamic Range), Digital Noise Reduction
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-Way Audio through built in Audio I/O Jack
  • Alarm/Event Management: Tampering, Motion Detection with 4 progrmaable zones, Alarm i/o Input 1ea / Output 1ea (Relay),
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 10 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: Dark gray/Metal; IP66 Grade (Waterproof)
  • Dimensions: 114.0 x 114.0 x 383.0mm (4.49" x 4.49" x 15.08")
  • Weight: 1.8kg (3.97 lb)
  • Operating Temperature: -40°C ~ +50°C (-40°F ~ +122°F)
  • Operating Humidity: Less than 90% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af) Max. 11W
  • Warranty: 3 Years
Samsung SNO-7080R Overview

The SNO-7080R is a Full HD 3 megapixel IR LED camera which utilized Samsung’s WiseNet2 DSP chipset. Thanks to the range of high functionalities that WiseNet2 cameras offer, the SNO-7080R features a motorised vari-focal lens and smart compression function to save installation time and bandwidth by capturing greater details only for the regions of interest. Its built-in 32 IR LEDs provides the ability to capture clear images of objects which are up to 30m from the camera, even when the area is in total darkness and the IP66 rated waterproof function show that the SNO-7080R can be an effective choice for demanding environments.
