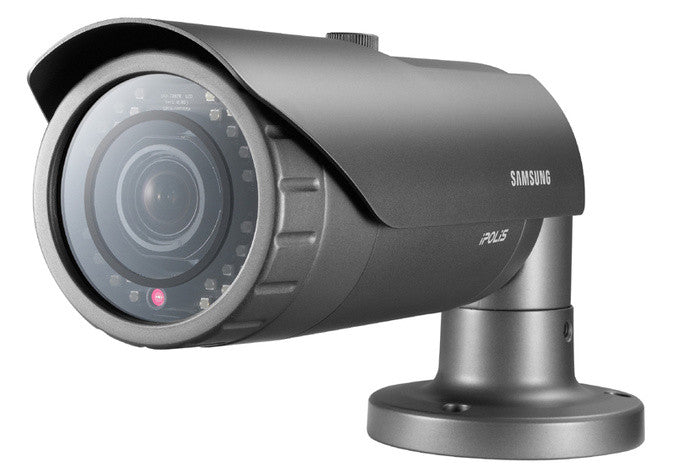

Samsung SNO-7082R 2 MP Full HD Weatherproof Network IR Camera

Discontinued, replaced by the SNO-7084R.

Samsung SNO-7082R Features

• Resolution: 2048 x 1536 / 1920 x 1080 / 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 720 / 1024 x 768 / 800 x 600 / 800 x 450 / 640 x 480 / 640 x 360 / 320 x 240 / 320 x 180
• Image Sensor: 1/3" 3.1M PS CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.7 Lux (F1.2, 50IRE), 0.011 Lux (Sens up 60x) B/W : 0 Lux (F1.2, 50IRE, IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 30m (98.43ft)
• Lens Type: Vari-Focal
• Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal
• Iris: DC auto iris
• Focus: Manual, Simple focus, Day&Night
• Field of View: H : 87.3° (Wide) ~ 31.2° (Tele), V : 64.5° (Wide) ~ 23.4° (Tele)
• Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
• Frame Rate: 3M Mode - H.264 : Max 20fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 20 fps 1024 x 768 ~ 1920 x 1080 -15 fps / 2048 x1536 - 10 fps & 2M Mode - H.264 : Max 30fps at all resolutions MJPEG : 800 x 600 ~ 320 x 180 - 30 fps 1024 x 768 ~ 1920 x 1080 : 15 fps
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Privacy Mask: Yes, Off / On (1ea 4 point polygonal + 16ea rectangular zones)
• Built-in Microphone: No
• Audio Capabilities: Mic/Line in , Line out
• Alarm/Event Management: Motion detection, Audio detection, Face detecton, Video analytics, Alarm input, File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output, Input 1ea / Output 1ea
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
• Users: 10 users at unicast Mode
• On-board Storage: Yes, SD / SDHC memory slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66
• Dimensions: Ø114.0 x 383.0mm (Ø4.49" x 15.08")
• Weight: 1.73Kg (3.81lb)
• Operating Temperature: AC24V : -50°C ~ +5 5°C (-58°F ~ +131°F) / ~ 90% RH, DC12V, PoE : -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH * Heater works at AC
• Operating Humidity: Less than 90% RH
• Power: DC 12V, AC 24V, PoE (IEEE802.3af); Max. 12.95W (DC 12V, AC 24V, PoE(class3) - Heater off) / Max. 18.5W (AC 24V - Heater on)
• Warranty: 3 Years

Samsung SNO-7082R Overview

The SNO-7082R is designed for advanced surveillance solutions incorporating Full 3 megapixel HD resolution. Progressive technologies incorporated into SNO-7082R include advanced WDR (Wide Dynamic Range) to provide superior images in high contrast scenes, Simple Focus to improve image quality when switching between color and B/W modes. SSDR (Samsung Super Dynamic Range) to enhance color reproduction and resolution and reduce signal noise. Additional functions include: face detection - prioritizing faces in an image, audio detection - alerting the system to events beyond the camera’s field of view, ROI (Region of Interest) - spotlighting the critical areas in the camera's field of view, and True Day/Night for superior images in the dark. The SNO-7082R is rated IP66 - ensuring protection against dust/water.
