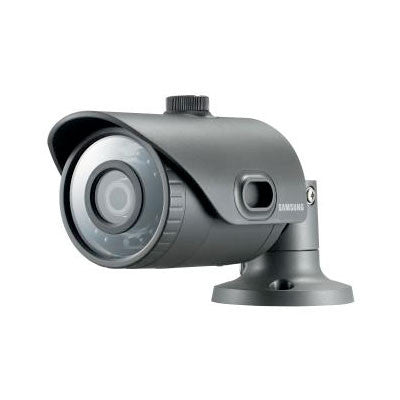

Samsung SNO-L5083R Lite 1.3MP 720P Full HD Network Bullet Camera

Samsung SNO-L5083R Features

• Max Resolution: 1280 x 1024
• Image Sensor: 1/3" 1.37M CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.04Lux (1/30sec, F1.4), 0.001Lux (2sec, F1.4) B/W : 0Lux (IR LED on)
• IR Illuminators: Yes
• IR Illuminator Range: 20m (65.62ft)
• Lens Type: Fixed, board mount
• Focal Length: 2.8 ~ 12mm / F1.4
• Iris: DC auto iris
• Focus: Manual
• Field of View: H : 88.2˚(Wide) ~ 28.6˚(Tele) / V : 69.4˚(Wide) ~ 23.0˚(Tele) / D : 117.3˚(Wide) ~ 36.2˚(Tele)
• Compression Styles: H.264, MJPEG
• Frame Rate: H.264 : Max. 30fps at all resolutions MJPEG : Max. 1fps at 1920 x 1080, 1280 x 960, 1280 x 720, 1024 x 768, Max. 15fps at other resolution
• WDR Technology: No
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
• Privacy Mask: Yes, 6 rectangular zones
• Built-in Microphone: No
• Audio Capabilities: Uni-directional audio only via audio line in
• Alarm/Event Management: Video Analytics (Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection), Motion detection with metadata, Tampering Alarm,SD card error, NAS error, File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
• Users: 6 users at unicast mode
• On-board Storage: Yes, micro SD/SDHC max. 32G
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 weatherproof & IK10 vandalproof
• Dimensions: Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
• Weight: 650g (1.43 lb)
• Operating Temperature: -30°C ~ +55°C (-22°F ~ +131°F)
• Operating Humidity: Less than 90% RH
• Power/Comsumption: PoE (IEEE802.3af, Class2) / Max. 5.9W
• Warranty: 3 Years

Samsung SNO-L5083R Overview

The SNO-L5083R delivers 1.3 megapixel FullHD video in an outdoor bullet camera. IR LEDs allow visibility in total darkness up to 20 meters. The 2.8-12mm varifocal lens provides a wide range of installation environments. The camera also conforms to IP66 and IK10 ratings for weather/dust proofing and vandal impact rating.
