Samsung SNP-3120V

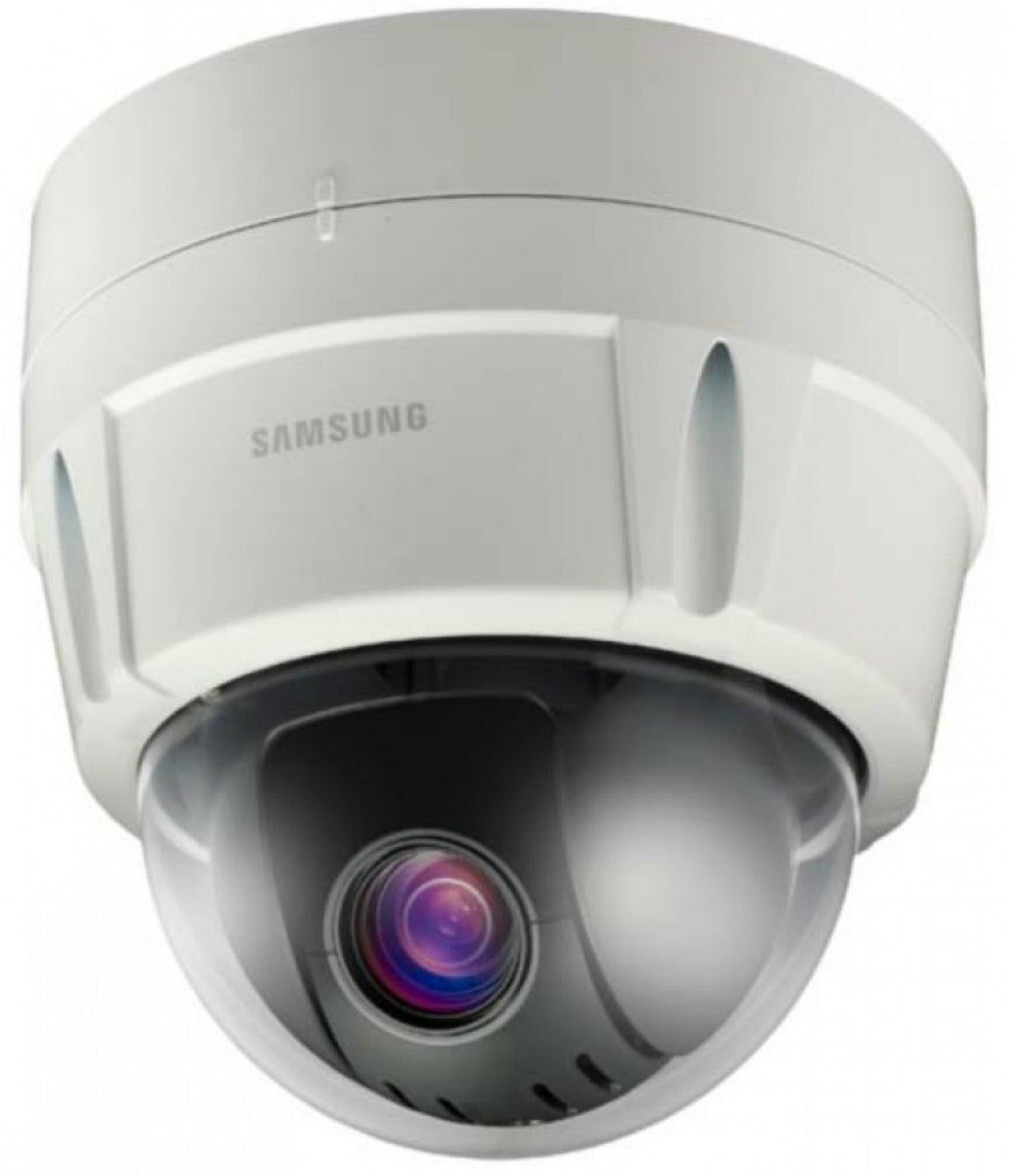

Samsung SNP-3120V Vandal Resistant 12x Network PTZ Dome Camera

Hanwha / Samsung

Samsung SNP-3120V Vandal Resistant 12x Network PTZ Dome Camera

$0.00
Discontinued
SKU: SNP-3120V
Link to Manufacturer's Page

Contact

Discontinued & Replaced by the SNP-3120VH

Samsung SNP-3120V Features

  • Resolution: 704 x 480, 640 x 480, 352 x 240, 320 x 240
  • Image Sensor: 1/4" Ex-view HAD PS CCD
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.7 Lux (F1.65, 50IRE), 0.001 Lux (Sens up 512x), B/W : 0.07Lux (F1.65, 50IRE), 0.0001 Lux (Sens up 512x)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Focal Length: 3.69~44.32mm (12x)
  • Zoom: 16x
  • Iris: DC Auto Iris
  • Focus: AF / One-Shot AF / Manual
  • Field of View: H : 54.44˚(Wide) ~ 4.62˚(Tele) / V : 42.32˚(Wide) ~ 3.58˚(Tele)
  • Compression Styles: H.264, MPEG4, MJPEG
  • Frame Rate: 30fps
  • Image Settings: On Screen Display, Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Dynamic Range, Digital Noise Reduction, Digital Image Stabilization, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Digital Zoom, Flip/Mirror, VPS, Intelligent Video Analyticcs, Alarm I/O, Remote Control Interface, RS-485 Protocol
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: 2-Way, Line in / Line out
  • Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output
  • ONVIF: Yes
  • Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log
  • Users: 10 users at Unicast Mode
  • On-board Storage: Yes, SD/SDHC Memory Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66
  • Dimensions: Ø165 x 165mm (Ø6.5" x 6.5"),
  • Weight: 1.9Kg (4.19 Ib)
  • Operating Temperature: 50°C ~ +50°C (-58°F ~ +122°F)
  • Operating Humidity: Less than 90% RH
  • Power: 24V AC, PoE+ (IEEE 802.3at), Max. 15W
  • Warranty: 3 Years

Samsung SNP-3120V Overview

The SNP-3120V is a Wide Dynamic Range (WDR) outdoor PTZ dome IP camera that packs a lot of features and performance for a very economical price. It features H.264 and MPEG-4 dual Codecs, VGA resolution at 30 Fps, a 12x auto focus zoom lens (3.6-44.3mm), 360° continuous rotation, high-speed pan and tilt operations at 650° per second, 256 presets, and a list of other advanced camera features. The The SNP-3120V has an IP66 rated vandal resistant housing.
