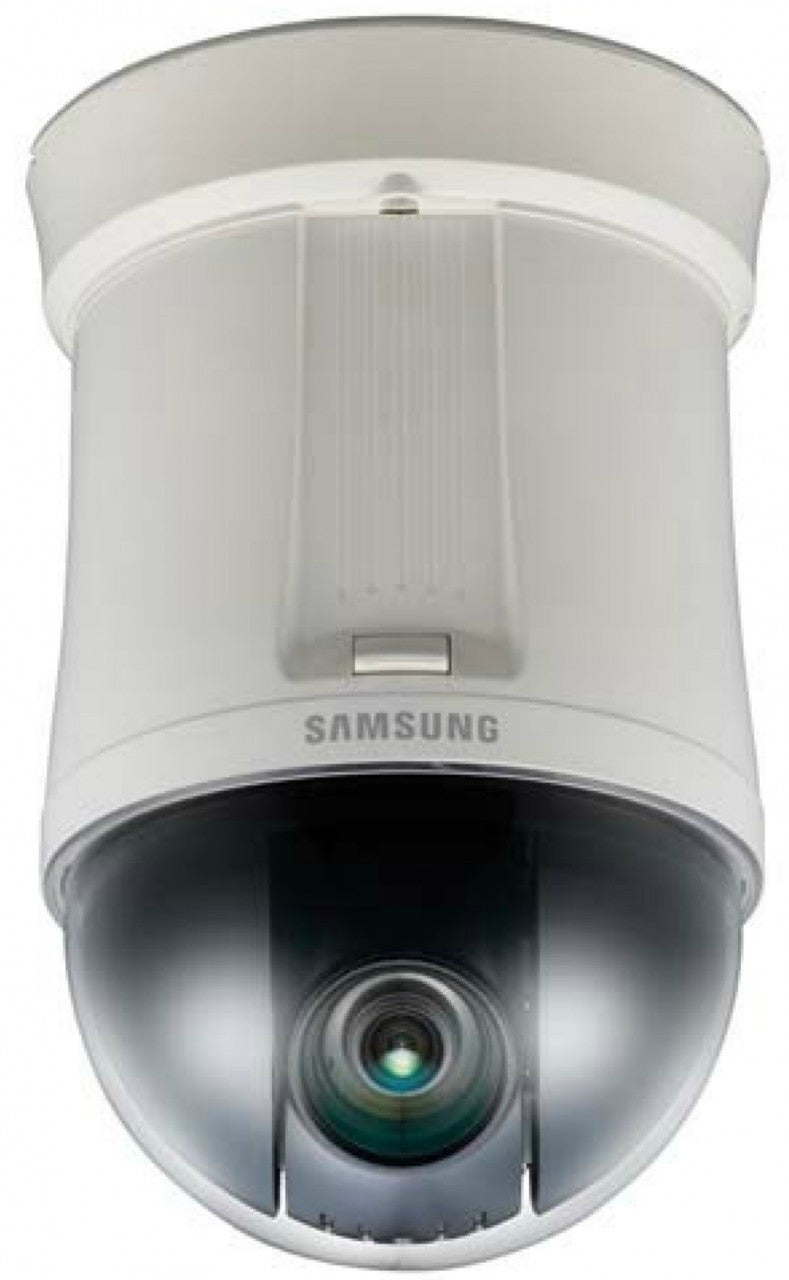

Samsung SNP-3302 Indoor PTZ Dome Network Camera
Samsung SNP-3302 Indoor PTZ Dome Network Camera
Samsung SNP-3302 Indoor PTZ Dome Network Camera
Samsung SNP-3302 Indoor PTZ Dome Network Camera

Hanwha / Samsung

Samsung SNP-3302 Indoor PTZ Dome Network Camera

Sale price$1,378.00
Discontinued
SKU: SNP-3302

Contact

Discontinued, replaced by the SNP-5300.

Samsung SNP-3302 Features

  • Resolution: 704 x 480, 640 x 480, 352 x 240, 320 x 240
  • Image Sensor: 1/4" Vertical Double Density Interline CCD
  • Day/Night: Yes, Auto
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.7 Lux/F1.6(50IRE) : Color / 0.07 Lux/F1.6(50IRE) : BW
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: DC Auto Iris
  • Focal Length: 3.5 ~ 105mm
  • Zoom: 30x optical zoom, 12x digital zoom
  • Iris: Manual / DC Auto Iris
  • Focus: Auto
  • Field of View: H : 55.5˚(Wide) ~ 1.92˚(Tele) / V : 42.5˚(Wide) ~ 1.43˚(Tele)
  • Compression Styles: H.264, MPEG4, MJPEG
  • Frame Rate: Max. 30fps at 4CIF resolution
  • Image Settings: Camera Title, Backlight Compensation, Wide dynamic Range, Contrast enhancement, SSDR (Samsung Super Dynamic Range) (Off / On), digital Noise Reduction, digital image Stabilization, Sens-up (Frame integration), Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, intelligent Video Analytics
  • Privacy Mask: Yes, Off / On (8 Polygonal programmable zones)
  • Built-in Microphone: No
  • Audio Capabilities: Two-Way Audio through built in Audio I/O Jack
  • Alarm/Event Management: Alarm I/O, Input 4ea/Output 2ea
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: 10 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC memory card slot
  • Indoor/Outdoor: Indoor
  • Housing/Enclosure Rating: N/A
  • Dimensions: : Ø243.4 x 155.0mm (Ø9.58" x 6.1")
  • Weight: 2.2Kg (4.85 lb)
  • Operating Temperature: : -10°C ~ +50°C (+14°F ~ +122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 24V AC, PoE+ (KEEE 802.3at) Max.21W
  • Warranty: 3 Years
Samsung SNP-3302 Features

The SNP-3302H/3302 network PTZ cameras feature a 30x optical zoom that is ideal for detailed object monitoring. With H.264, MPEG-4, MJPEG multiple codec these cameras provide flexibility to suite one's network environment. Especially, the SNP-3302H includes an integrated housing that is fully weatherproof to IP66, making installation simple, and support a wide operating temperature range -50° to +50°. In addition, they support multi-streaming technology able to transfer realtime high resolution images 30(25)fps at 4CIF resolution.
