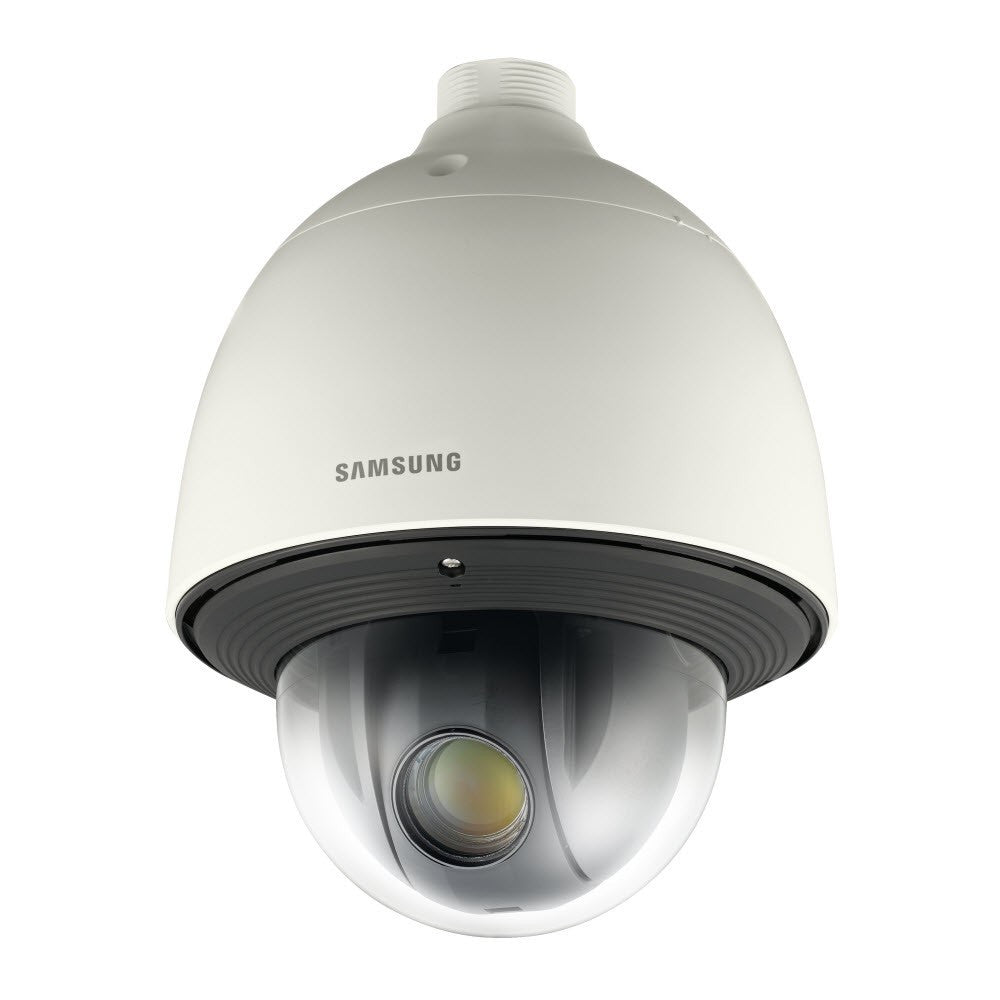

Samsung SNP-6201H 2MP Full HD 20x Compact PTZ Network Camera
Samsung SNP-6201H 2MP Full HD 20x Compact PTZ Network Camera
Samsung SNP-6201H 2MP Full HD 20x Compact PTZ Network Camera

Hanwha / Samsung

Samsung SNP-6201H 2MP Full HD 20x Compact PTZ Network Camera

Sale price$2,028.00
Discontinued
SKU: SNP-6201H

Discontinued, replaced by the SNP-6320H.

Samsung SNP-6201H Features

  • Resolution: 1920 x 1080P (Full HD), SXGA (1280 x 1024), 1280 x 960, HD (16 : 9, 1280 x 720p), 1024 x 768, SVGA (800 x 600), VGA (640 x 480), QVGA (320 x 240)
  • Image Sensor: 1/3" 2M PS CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 1.5 Lux @ F1.6 (50ire), B/W : 0.1 Lux @ F1.6 (50ire)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Vari-Focal
  • Focal Length: 4.45 ~ 89mm (20X)
  • Pan Range / Pan Speed: 360˚ Endless, Preset : 500˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
  • Tilt Range / Tilt Speed: 210˚ (-15˚ ~195˚ ), Preset : 500˚/sec, Manual : 0.024˚/sec ~ 120˚/sec
  • Zoom: 20x optical zoom
  • Iris: DC Auto Iris
  • Focus: Auto / Manual / One shot
  • Field of View: H : 63˚(Wide) ~ 3.49˚(Tele) / V : 37˚(Wide) ~ 1.99˚(Tele)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: Max. 30fps at all resolutions * When WDR on, Max. framerate is max. 15fps
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Digital Zoom, Flip / Mirror
  • Intelligent Video Analytics: Tampering (Scene change), Virtual line, Enter/Exit, Appear/Disappear, Audio detection, Face detection (5ea)
  • Privacy Mask: Yes, off / on (12 programmable zones)
  • Built-in Microphone: No
  • Audio Capabilities: Mic(Line)-in selectable via UI, Line-out (Mono, 1Vrms)
  • Alarm/Event Management: Alarm input, Motion detection, Intelligent video analytics, Network disconnect: File upload via FTP and E-mail, Notification via E-mail, TCP, Local storage (SD/SDHC/SDXC) recording at Network disconnected, External output, PTZ preset
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
  • Users: 10 users at unicast mode
  • On-board Storage: Yes, SD/SDHC memory slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66
  • Dimensions: Ø220.0 x 293.6mm (Ø8.66" x 11.56"
  • Weight: 3.2Kg (7.05 lb)
  • Operating Temperature: PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) / 24V AC : -50°C ~ +55°C (-58°F ~ +131°F)
  • Operating Humidity: Less than ~ 90% RH
  • Power: PoE+, 24V AC : Max. 15W (Heater off), PoE+ : Max. 25W, 24V AC : Max. 53W (Heater on)
  • Whats Included: SNP-6201H PTZ Camera, Instruction Book, Installer Software CD, Test Monitor Cable, Hexagon Screws with L-Wrench, Installation Base Power Supply & Mount are not included
  • Warranty: 3 Years

Samsung SNP-6201 Overview

The SNP-6201H is a compact PTZ dome camera which provides 20x images in Full HD resolution. The high resolution 20x optical zoom makes it possible to identify persons approximately 180 meters (55 feet) away. Now operators can get detailed and higher quality image from distance. Its intelligent video analytics function includes Tampering, Virtual Line, Enter/Exit, Appear/Disappear to help capture evidence more efficiently. The SNP-6201H can be installed wherever it requires a wide range coverage. The SNP-6201H, housing PTZ dome camera, withstands demanding environment with heater by POE+.
