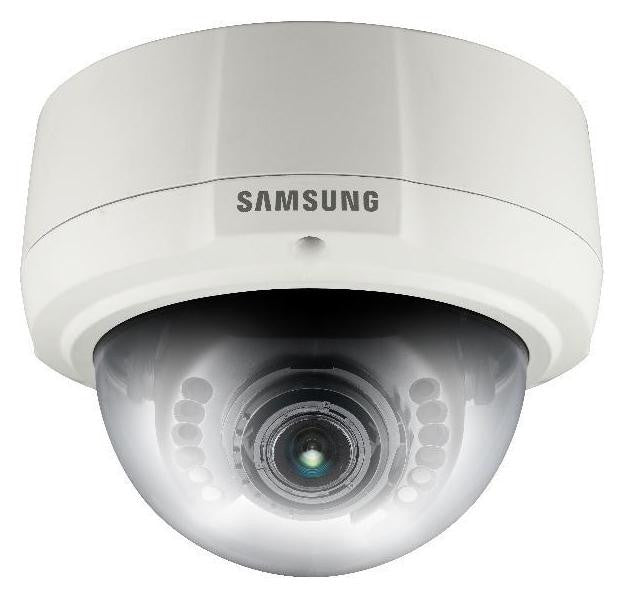

Samsung SNV-1080R VGA Vandal-Resistant Dome Network Camera
Samsung SNV-1080R VGA Vandal-Resistant Dome Network Camera
Samsung SNV-1080R VGA Vandal-Resistant Dome Network Camera
Samsung SNV-1080R VGA Vandal-Resistant Dome Network Camera

Hanwha / Samsung

Samsung SNV-1080R VGA Vandal-Resistant Dome Network Camera

Sale price$343.20
SKU: SNV-1080R


Discontinued, replaced by the SNV-5084R

Samsung SNV-1080R Features

  • Resolution: 4:3 Mode - 640 x 480 / 320 x 240 / 160 x 120
  • Image Sensor: 1/4" Progressive CMOS
  • Day/Night: Yes, Auto
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: 0.7 lux (F1.2, Color mode), 0 lux (IR LED on, B/W Mode
  • IR Illuminators: Yes
  • IR Illuminator Range: 15 meters
  • Lens Type: Varifocal
  • Focal Length: 2.2 ~ 7.7mm (3.5x)
  • Zoom: No
  • Iris: Auto
  • Focus: Auto
  • Field of View: H : 94°(Wide) ~ 26.5°(Tele), V : 70°(Wide) ~ 20°(Tele)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: Max. 30fps at all resolutions
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Intelligent Video Analytics
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: Two-Way Audio through built in Audio I/O Jack
  • Alarm/Event Management: Motion Detection, Alarm I/O
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x Authentication
  • Users: Up to 10 profiles
  • On-board Storage: Yes, Micro SD/SDHC memory card slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: Ivory / Aluminum; IP66 Grade (Waterproof)
  • Dimensions: Ø137.0 x 106 mm (Ø5.39" x 4.17")
  • Weight: 786g (1.73lb)
  • Operating Temperature: -10°C ~+50°C (+14°F ~ +122°F)
  • Operating Humidity: 20% ~ 80% RH
  • Power: 12V DC / PoE (IEEE802.3af); Max. 5W
  • Warranty: 3 Years
Samsung SNV-1080R Overview

The SNV-1080R is a compact vandal-resistant VGA network dome camera featuring built-in IR LEDs which make it suitable for use in the most demanding applications. With the Samsung Techwin WiseNetS DSP chipset at its core, the SNV-1080R delivers a host of advanced features including face detection analytics, third generation Samsung Super Noise Reduction (SSNRⅢ) to eliminate image noise in low light conditions, and Samsung Super Dynamic Range (SSDR); it has an analogue video output port enabling conventional analogue viewing to make set-up on site easy. Its compact design makes the SNV-1080R especially suitable for small applications such as convenience stores and retail shops.
