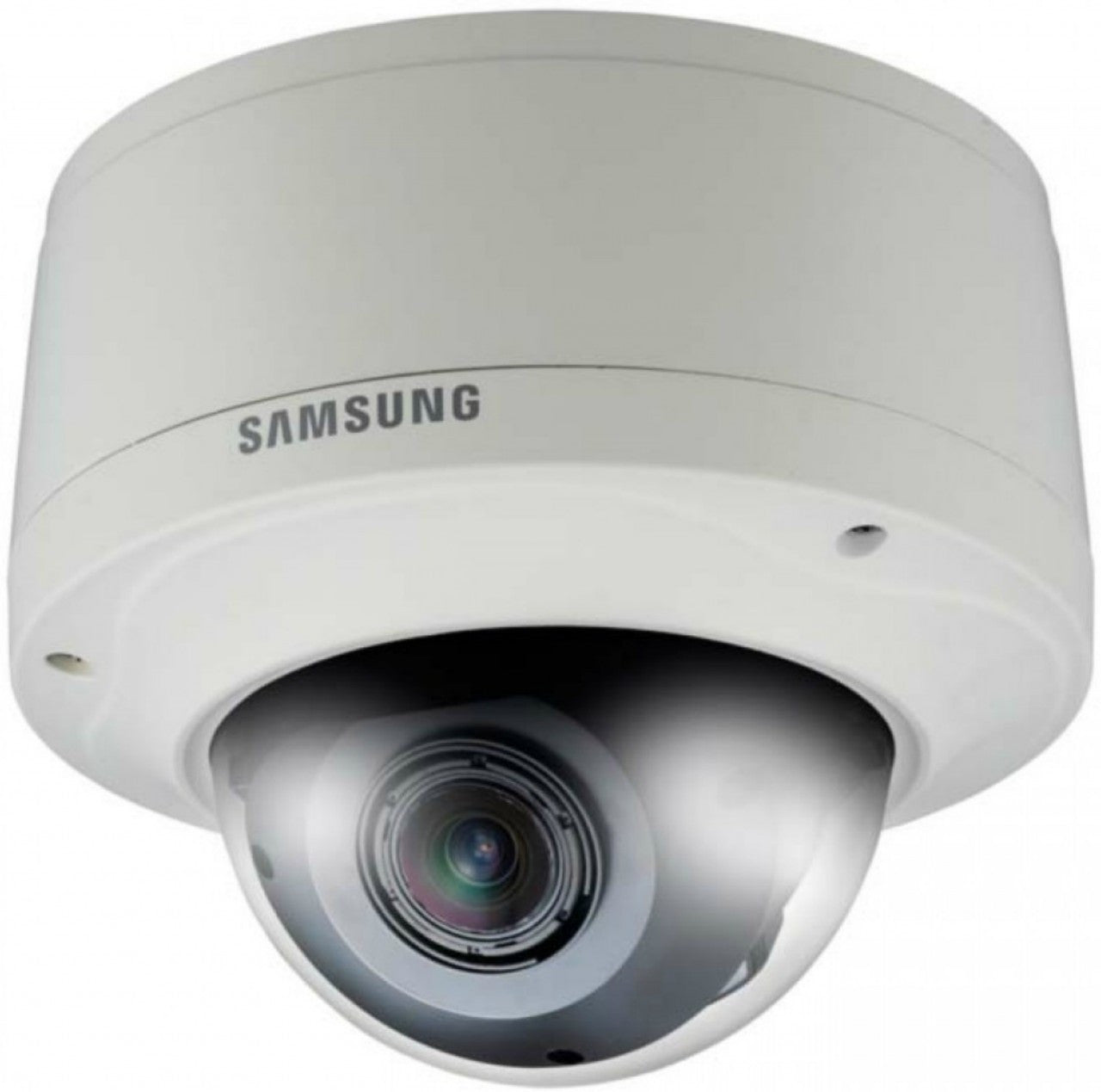

Samsung SNV-5080 1.3 Megapixel HD Vandal-Resistant Network Dome Camera

Discontinued

Samsung SNV-5080 Features

• Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
• Image Sensor: 1/3" 1.3M PS CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x); B/W : 0.01Lux (F1.2, 50IRE), 0.0002Lux (Sens-up 60x
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: Varifocal
• Focal Length: 2.8 ~ 10mm (3.6x) F1.2
• Zoom: N/A
• Iris: DC auto iris
• Focus: N/A
• Field of View: H : 94.6°(Wide) ~ 28.8°(Tele), V : 68.4°(Wide) ~ 21.6°(Tele)
• Compression Styles: H.264, MPEG-4, MJPEG
• Frame Rate: 22fps (1280 x 1024), 30fps (720P HD)
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics, Alarm I/O
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: Bi-directional audio, Mic / Line in, Line out
• Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output
• ONVIF: Yes
• Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log
• Users: 10
• On-board Storage: Yes, SD/SDHC memory slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Grade (Waterproof)
• Dimensions: Ø160.0 x 134.5mm (Ø6.3" x 5.3")
• Weight: 1.28Kg (2.82 lb)
• Operating Temperature: -40°C ~ +50°C (-40°F ~ +122°F)
• Operating Humidity: Less than 90% RH
• Power: 12V DC, 24V AC, PoE (IEEE802.3af); Max. 8W (Heater off), Max. 11W (Heater on) *Heaters work with 24VAC only
• Warranty: 3 Years

Samsung SNV-5080 Overview

The SNV-5080 is a high performance ONVIF compliant 1.3 Megapixel vandal dome camera that incorporates Samsung’s WiseNet DSP chipset. Capable of displaying multiple resolutions from CIF (320 x 240) through 16:9 format 720p HD and up to full 1.3 megapixel (1280x1024), the SND-5080 provides up to 10 video streams and video analytics. This camera features a 3.6x (2.8-10mm) varifocal auto iris lens, a minimum illumination specification of 0.3 Lux color, True Day / Night operation with ICR, Hybrid (analog) video output, a local SD memory card slot, and is powered via either PoE or 24 VAC. Maximum frame rate is 22 fps @ 1280 x 1024; 30fps @ 720P.
