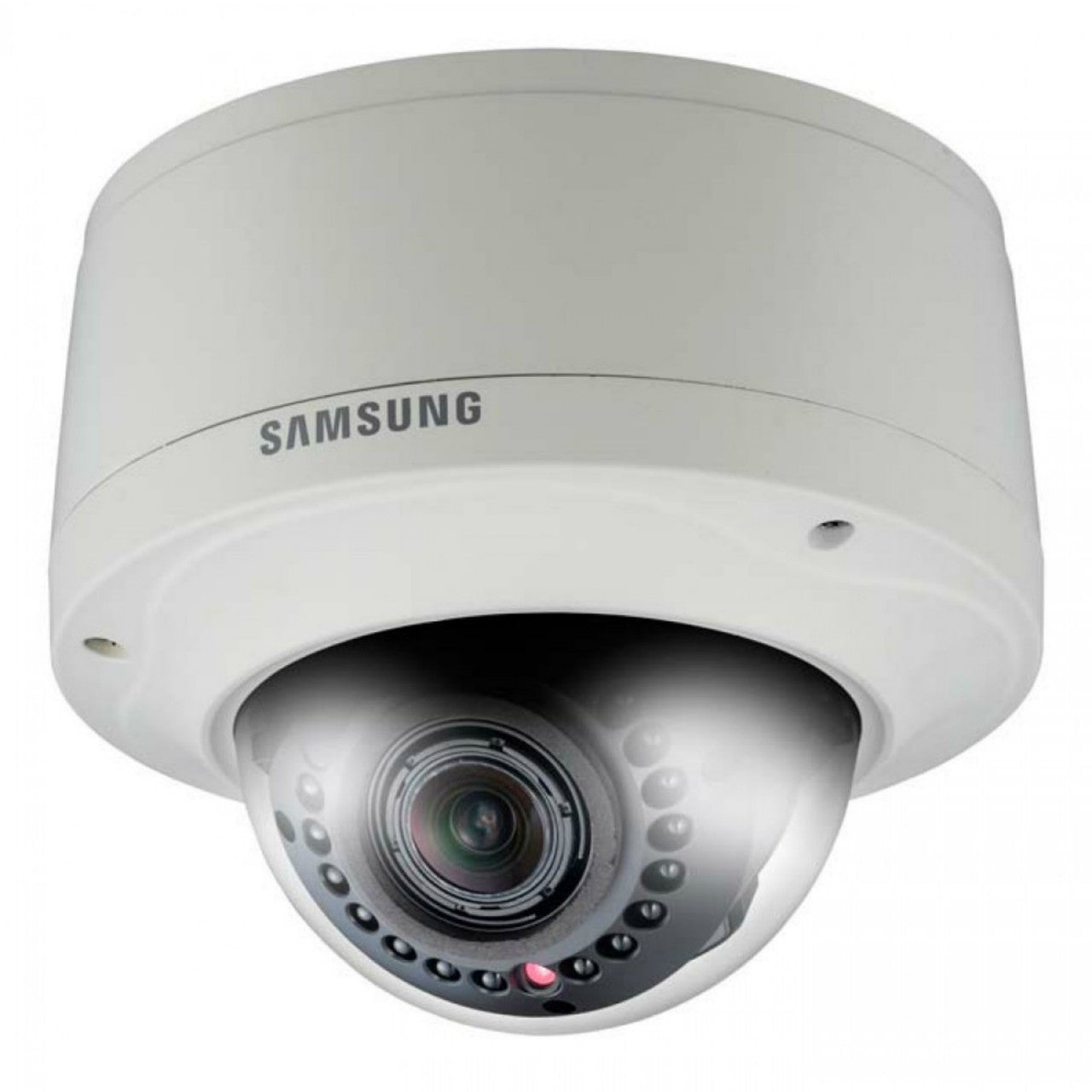

Samsung SNV-5080R 1.3 Megapixel HD Vandal-Resistant IR Dome Camera

Discontinued

Samsung SNV-5080R Features

• Resolution: 1280 x 1024, 1280 x 720P(HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
• Image Sensor: 1/3" 1.3M PS CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: Color : 0.3 Lux (F1.2, 50IRE), 0.005 Lux (Sens up 60X), B/W : 0Lux (F1.2, 50IRE, IR LED ON)
• IR Illuminators: Yes
• IR Illuminator Range: 50 feet
• Lens Type: Motorized Varifocal
• Focal Length: 3~8.5mm (2.8X) F1.2
• Zoom: N/A
• Iris: DC auto iris
• Focus: Remote
• Field of View: H: 94°(Wide)~69.86°(Tele), V: 32.9°(Wide)~24.92°(Tele)
• Compression Styles: H.264, MPEG-4, MJPEG
• Frame Rate: 22fps (1280 x 1024), 30fps (720P HD)
• Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masking, Sens-up (Frame Integration), Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics, Alarm I/O
• Privacy Mask: Yes
• Built-in Microphone: No
• Audio Capabilities: 2-Way audio, Mic / Line in, Line out
• Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output
• ONVIF: Yes
• Security: HTTPS(SSL) Login Authentication, Digest Login Authentication, IP Address Filtering, User access Log, 802.1x Authentication
• Users: 10
• On-board Storage: Yes, SD/SDHC memory slot
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: IP66 Grade (Waterproof)
• Dimensions: Ø160.0 x 134.5mm (Ø6.3" x 5.3")
• Weight: 1.4Kg (3.09 lb)
• Operating Temperature: -40°C ~ +50°C (-40°F ~ +122°F) / ~ up to 100%
• Operating Humidity: up to 100%
• Power: 12V DC, 24V AC, PoE (IEEE802.3af); Max. 9W or 650mA (Heater Off), Max. 13W or 800mA (Heater On); Heaters work on 24VAC only
• Warranty: 3 Years

Samsung SNV-5080R Overview

The SNV-5080R is a high performance vandal resistant dome camera featuring built-in IR LEDs making it suitable for use in the most demanding applications. With H.264 compression and HD megapixel output (720p) it is capable of illuminating subjects up to 50ft from the camera in order to provide bandwidth-friendly, high resolution images both during the day and at night. Encased in a tough vandal resistant housing and weatherproof to IP66, the SNV-5080R is suitable for installation both indoors and outdoors and built to last.
