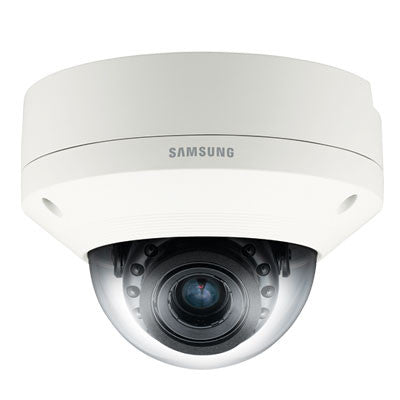

Samsung SNV-5084 1.3MP 720p HD Vandal Resistant Dome Network Camera
Samsung SNV-5084 1.3MP 720p HD Vandal Resistant Dome Network Camera
Samsung SNV-5084 1.3MP 720p HD Vandal Resistant Dome Network Camera

Hanwha / Samsung

Samsung SNV-5084 1.3MP 720p HD Vandal Resistant Dome Network Camera

Sale price$514.80
Discontinued
SKU: SNV-5084

Contact

Samsung SNV-5084 Features

  • Resolution: 1280 x 1024, 1280 x 720P (HD), 1024 x 768, 800 x 600, 640 x 480, 320 x 240
  • Image Sensor: 1/3" 1.3M PS CMOS
  • Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.05Lux (1/30sec, F1.2, 50IRE), 0.0008Lux (2sec, F1.2, 50IRE), B/W : 0.005Lux (1/30sec, F1.2, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Motorized Varifocal
  • Focal Length: 3 ~ 8.5mm (2.8x) motorized varifocal
  • Iris: DC auto iris
  • Focus: Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)
  • Field of View: H : 93.3°(Wide) ~ 33.2°(Tele) / V : 73.7°(Wide) ~ 26.6°(Tele)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 60fps at all resolutions, MJPEG : 1280 x 1024, 1280 x 720, 1024 x 768 : Max. 15fps, 800 x 600, 640 x 480, 320 x 240 : Max. 30fps
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror
  • Intelligent Video Analytics: Tampering, Virtual line, Enter/Exit, Appear / Disappear, Audio detection, Face detection
  • Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
  • Built-in Microphone: No
  • Audio Capabilities: Selectable (Mic in / Line in), Max output level : 1 Vrms, Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm, Line out (3.5mm stereo mini jack)
  • Alarm/Event Management: Motion detection, Tempering, Audio detection, Face detection,Video analytics, Network disconnection, Alarm input: File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC/SDXC
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 weather Proof & IK10 Vandal Resistant
  • Dimensions: Ø160.0 x 118.5mm (Ø6.3" x 4.67")
  • Weight: 985g (2.17 lb)
  • Operating Temperature: -40°C ~ +55°C (+40°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af, Class3), Max. 12.95W (PoE - Heater on), Max. 14W (12V DC, 24V AC - Heater off)
  • Warranty: 3 Years

Samsung SNV-5084 Overview

The SNV-5084 vandal-resistant dome camera from Samsung Techwin's WiseNetIII network range features our most advanced technology with 1.3 megapixel 720p high definition images. Its high end functions include 130dB WDR, low light performance down to 0.05 lux (F1.2, 50IRE, color) creating clear images under low light conditions, and P-iris support which results in images with better contrast, clarity, resolution and depth of field. With enhanced features and new technologies which combat the challenges of tough environmental conditions the SNV-5084 meets the needs of the professional security market. Tested and rated to IP66/IK10, it can work effectively in environments prone to severe weather conditions as well as resisting physical attack.
