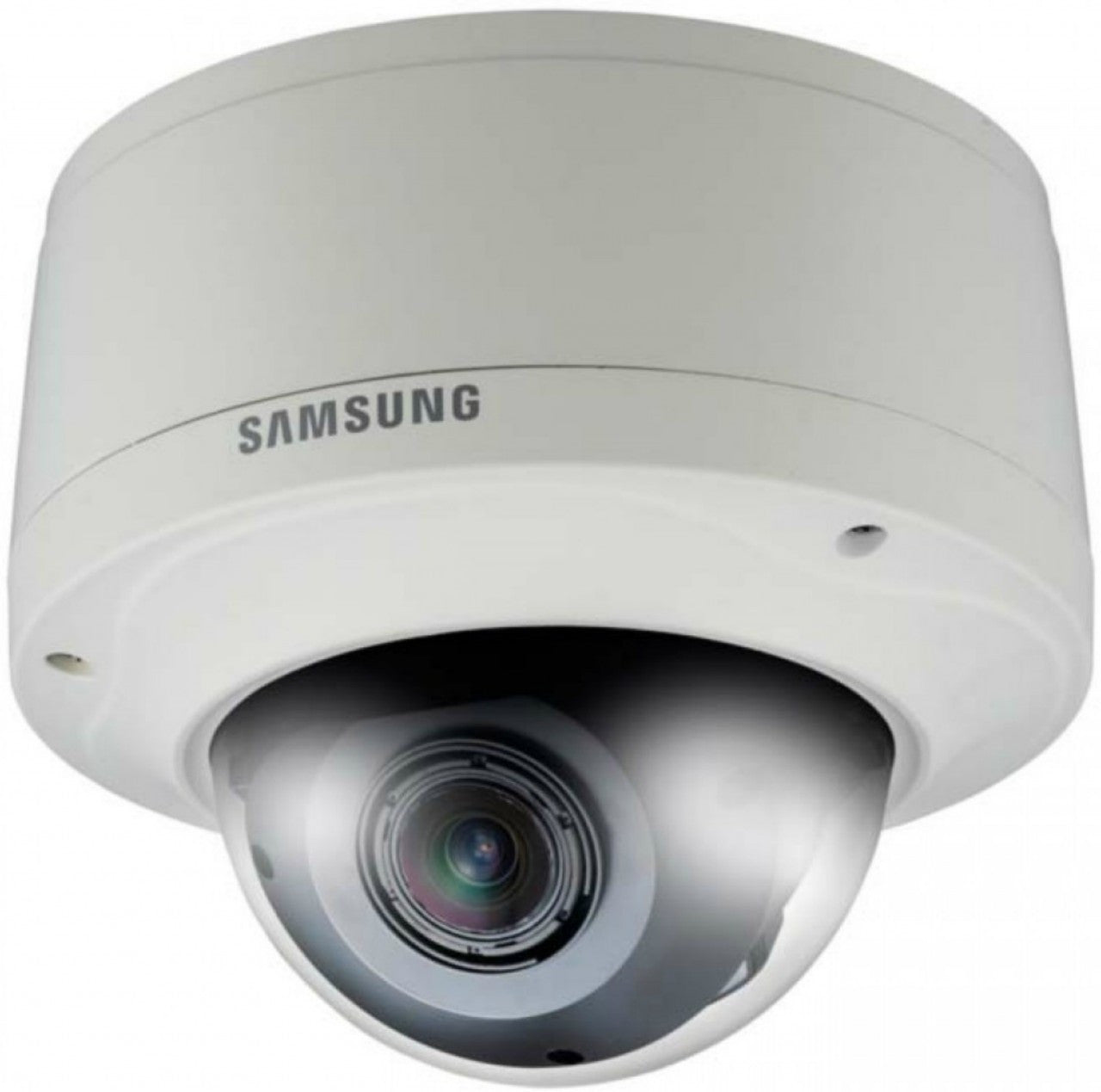

Samsung SNV-7080 3 Megapixel Full HD Vandal-Resistant Network Dome Camera
Samsung SNV-7080 3 Megapixel Full HD Vandal-Resistant Network Dome Camera

Hanwha / Samsung

Samsung SNV-7080 3 Megapixel Full HD Vandal-Resistant Network Dome Camera

Sale price$712.40
SKU: SNV-7080



Samsung SNV-7080 Features

  • Resolution: 1920x1080P(Full HD)
  • Image Sensor: 1/2.8" 1.3M PS CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x), B/W : 0.08Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Motorized Varifocal
  • Focal Length: 3 ~ 8.5mm (2.8x)
  • Zoom: N/A
  • Iris: DC Auto Iris
  • Focus: Remote
  • Field of View: H : 100°(Wide) ~ 35.3°(Tele), V : 74.6°(Wide) ~ 26°(Tele)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: Max 30fps at all resolutions
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masing, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Alarm I/O, Remote Control Interface, RS-485 Protocol
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output,
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 10
  • On-board Storage: Yes, SD/SDHC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 Grade (Waterproof)
  • Dimensions: Ø160 x 134.5mm (Ø6.3" x 5.3")
  • Weight: 1.4Kg (3.09 lb)
  • Operating Temperature: -40°C ~ +50°C (-40°F ~ +122°F)
  • Operating Humidity: Less than 90% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af) Max. 8W (Heater off), Max. 11W (Heater on)
  • Warranty: 3 Years

Samsung SNV-7080 Overview

The SNV-7080 is an ONVIF compliant 3 Megapixel vandal dome camera that incorporates Samsung’s WiseNet2 DSP chipset. This camera is capable of displaying multiple resolutions from CIF (320 x 240) through to 16:9 format 1080p full HD and up to 3 megapixel (2048 x 1536). The SND-7080 provides up to 10 video streams and offers both H.264 & MJPEG. This camera features a 2.8x (3-8.5mm) varifocal auto iris lens, Wide Dynamic Range (WDR), True Day / Night operation with ICR, frame integration, Hybrid (analog) video output, a local SD memory card slot, video analytics, and is powered via either PoE or 24 VAC. Maximum frame rate is 20 fps @ 3MP and 30 fps @ 2MP or less (15 fps when WDR is on). The enclosure is IP66 rated.
