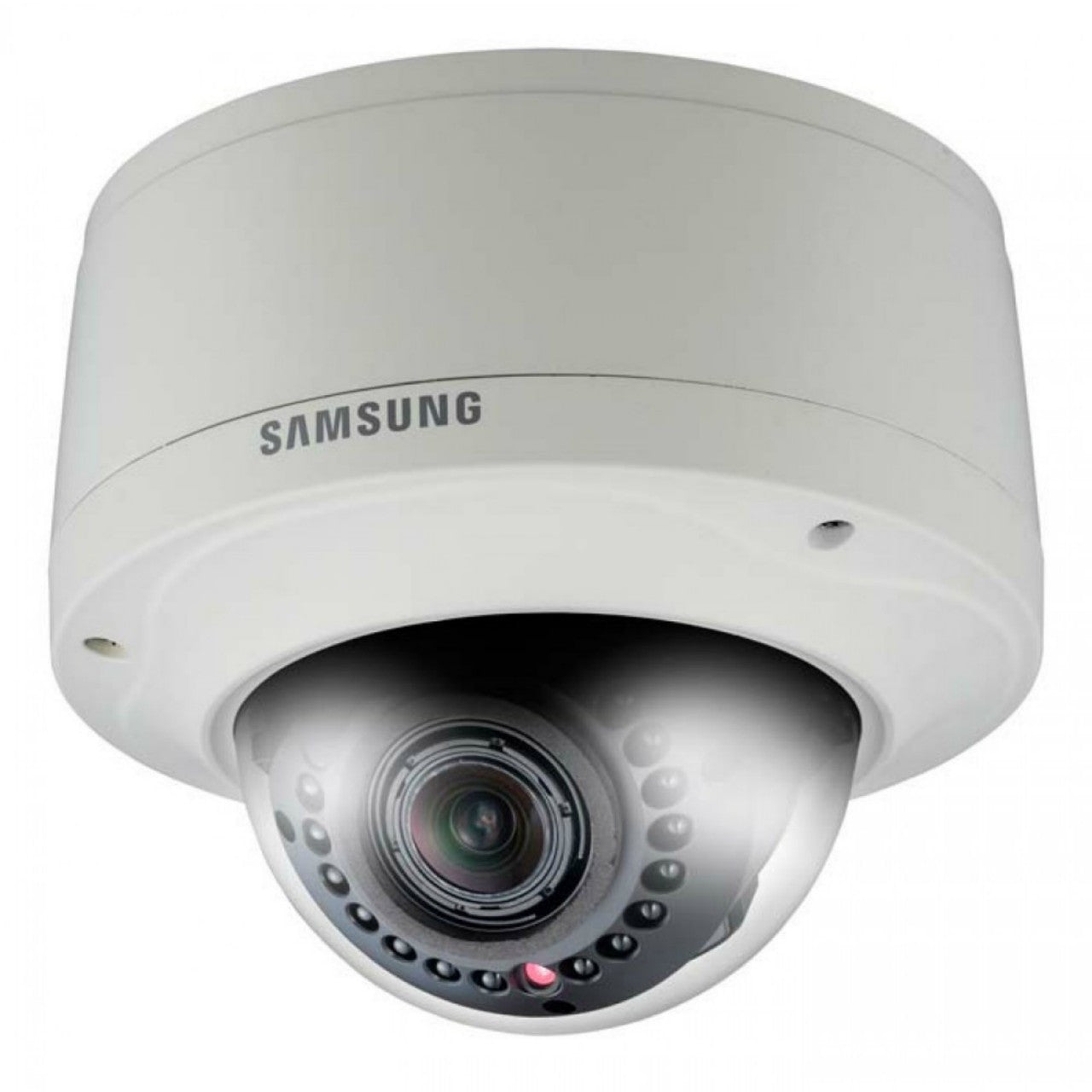

Samsung SNV-7080R 3 Megapixel Full HD Network Vandal-Resistant IR Dome Camera
Samsung SNV-7080R 3 Megapixel Full HD Network Vandal-Resistant IR Dome Camera

Hanwha / Samsung

Samsung SNV-7080R 3 Megapixel Full HD Network Vandal-Resistant IR Dome Camera

Sale price$696.80
SKU: SNV-7080R

Discontinued. Replaced by the SNV-7084R

Samsung SNV-7080R Features

  • Resolution: 2048 x 1536
  • Image Sensor: 1/2.8" 3M PS CMOS
  • Day/Night: Yes
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 1Lux (F1.2, 50IRE), 0.017Lux (Sens-up 60x), B/W : 0.08Lux (F1.2, 50IRE), 0.001Lux (Sens-up 60x)
  • IR Illuminators: Yes
  • IR Illuminator Range: 75 feet
  • Lens Type: Motorized Varifocal
  • Focal Length: 3 ~ 8.5mm (2.8x)
  • Zoom: N/A
  • Iris: DC Auto Iris
  • Focus: Remote
  • Field of View: H : 100°(Wide) ~ 35.3°(Tele), V : 74.6°(Wide) ~ 26°(Tele)
  • Compression Styles: H.264, MJPEG
  • Frame Rate: Max 30fps at all resolutions
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Wide Dynamic Range, Contrast Enhancement, Digital Noise Reduction, Motion Detection, Privacy Masing, Sens-up, Gain Control, White Balance, Electronic Shutter Speed, Flip/Mirror, Alarm I/O, Remote Control Interface, RS-485 Protocol
  • Privacy Mask: Yes
  • Built-in Microphone: No
  • Audio Capabilities: N/A
  • Alarm/Event Management: Motion Detection, Alarm Input, Alarm Output,
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 10
  • On-board Storage: Yes, SD/SDHC Card Slot
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 Grade (Waterproof)
  • Dimensions: Ø160 x 134.5mm (Ø6.3" x 5.3")
  • Weight: 1.4Kg (3.09 lb)
  • Operating Temperature: -40°C ~ +50°C (-40°F ~ +122°F)
  • Operating Humidity: Less than 90% RH
  • Power: 12V DC, 24V AC, PoE (IEEE802.3af) Max. 8W (Heater off), Max. 11W (Heater on)
  • Warranty: 3 Years

Samsung SNV-7080R Overview

The SNV-7080R is an ONVIF compliant vandal-resistant dome camera from Samsung’s 3 Megapixel camera range. It utilizes Samsung’s WiseNet2 DSP chipset which has been specifically designed to provide users with maximum benefit from the latest megapixel camera technology. The IP66 rated SNV-7080R can work effectively in more demanding environments that are prone to severe or varying weather conditions as well as tampering or physical attack. In addition, thanks to its built-in 15 IR LEDs, the SNV-7080R has the ability to capture clear images of objects which are up to 75ft from the camera, even when the area is in total darkness. Capable of displaying multiple resolutions from CIF (320 x 240) through to 16:9 format 1080p full HD and up to full 3 megapixel (2048 x 1536), these resolutions have the ability to be transmitted simultaneously, allowing the most relevant stream to be transmitted to your viewing or recording device.
