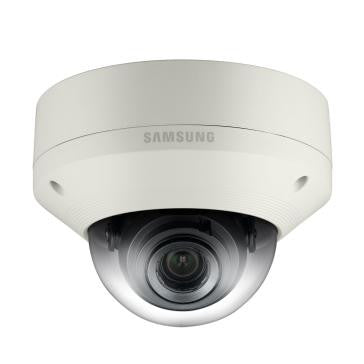

Samsung SNV-7084 3MP 1080P Full HD Vandal Resistant Dome Network Camera

Hanwha / Samsung

Samsung SNV-7084 3MP 1080P Full HD Vandal Resistant Dome Network Camera

Sale price$670.80
Discontinued
SKU: SNV-7084

Contact

Replaced by the XNV-8080R.

Samsung SNV-7084 Features

  • Max Resolution: 2048 x 1536
  • Image Sensor: 1/2.8" PS Exmor 3.2M CMOS
  • Day/Night: Yes, Auto (ICR) / Color / B/W / External / Schedule
  • Mechanical IR Cut Filter: Yes
  • Minimum Illumination: Color : 0.1Lux (F1.2, 50IRE), 0.01Lux (30fps, 1sec, 50IRE), B/W : 0.01Lux (F1.2, 50IRE)
  • IR Illuminators: No
  • IR Illuminator Range: N/A
  • Lens Type: Board-in type
  • Focal Length: 3 ~ 8.5mm / F1.2
  • Zoom: 2.8x motorized varifocal
  • Iris: DC auto iris
  • Focus: Simple focus / Manual, Remote control via network (Manual, Simple focus, Day & Night)
  • Field of View: H : 100.12°(Wide) ~ 35.38°(Tele) / V : 73.76°(Wide) ~ 26.58°(Tele)
  • Compression Styles: H.264 (MPEG-4 part 10/AVC), MJPEG
  • Frame Rate: H.264 : Max. 30fps@2048 x 1536, Max 60fps@the other resolutions; MJPEG : Max. 10fps@2048 x 1536, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, Max. 30fps@800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
  • WDR Technology: Yes, 120 dB
  • Image Settings: Camera Title, Day & Night, Backlight Compensation, Contrast Enhancement, Digital Noise Reduction, Digital Image Stabilization, Defog, Motion Detection, Privacy Masking, Gain Control, White Balance, Electronic Shutter Speed, Flip / Mirror, Intelligent Video Analytics (Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection with metadata)
  • Privacy Mask: Yes, Off / On (32 zones with 4 points of polygonal)
  • Built-in Microphone: No
  • Audio Capabilities: Mic(Line)-in / Built-in mic selectable via UI, Line-out
  • Alarm/Event Management: Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input; File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers), External output
  • ONVIF: Yes
  • Security: HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1x authentication
  • Users: 15 users at unicast mode
  • On-board Storage: Yes, Micro SD/SDHC/SDXC
  • Indoor/Outdoor: Outdoor
  • Housing/Enclosure Rating: IP66 Weather Proof & IK10 Vandal proof
  • Dimensions: Ø160.0 x 118.5mm (Ø6.3" x 4.67")
  • Weight: 1.32 Kg (2.91 lb)
  • Operating Temperature: -40°C ~ +55°C (-40°F ~ +131°F)
  • Operating Humidity: Less than 90% RH
  • Power/Consumption: 24V AC, 12V DC, PoE (IEEE802.3af class 3) / Max. 9.0W / 11.5W (12V DC, Heater off / on), Max. 10.0W / 12.5W (PoE, Heater off / on), Max. 11.0W / 13.0W (24V AC, Heater off / on)
  • Warranty: 3 Years

Samsung SNV-7084 Overview

The SNV-7084 features the most advanced WiseNetIII functions from Samsung with 3 megapixel 1080p high definition images. Its high level of functionalities includes 120dB Wide Dynamic Range which delivers 30fps at 3 megapixel 1080p, and motorized varifocal lens which result in easy focus control. Rated to IP66/IK10, it can work effectively in more demanding environments that are prone to severe or varying weather conditions as well as tampering or physical attack.
